5 Wire Resistive Touch Screens IP65 Integrated With RFID

Place of Origin Shenzhen , China
Brand Name Sihovision
Certification CE,FCC,RoHS
Model Number SC12W
Minimum Order Quantity 1 Piece
Price negotiable
Packaging Details 47*43*19cm, 6.3 kg
Delivery Time 10-15 working days
Payment Terms T/T , Paypal , L/C , D/A , D/P , Western Union , MoneyGram
Supply Ability 5000 Piece/Pieces per Month
Product Details
Product Name Industrial Panel Pc IP65 CPU Intel® Celeron J1900, 2.0GHz, Quad Core, Fanless
IP Grade IP65 Waterproof And Dustproof Brightness 300 Nits,sunlight Readable
Touch 5 Wire Resistive Touch Resolution 1024x768
Aspect Ratio 4:3 Temperature Range -20 To 70°C
High Light

5 Wire Resistive Touch Screens

,

RFID Resistive Touch Screens

,

IP65 Integrated Industrial Panel Pc

Leave a Message
Product Description

The unit is equipped with full IP65 protection. The IP65 compliant I/O cover has special waterproof connectors and cables and is available in backward or downward orientation depending on the need of the customer.

which makes it ideal for food, livestock, chemical, mining, petro and factory automation or any other industrial applications.



Features


1. Made of sturdy and durable aluminum Alloy front bezel+High strength cold rolled steel back case.
2. Industrial LCD panel, wide viewing angle, high nits, true color.
3. Fully sealed and fanless design, full IP65 waterproof, Sealed I/O with cable set included.
4. Adopt 5 wire resistive touch screen, high precision, durable, anti-interference.
5. High performance motherboard, fanless design, 7x24 continuous operation.
6. Integrated with RFID Modem.


Specification

Model:SC12W
PC
CPU Intel® Celeron J1900, quad core, 2.0GHz, fanless
Chipset Intel ValleyView SSA-CUnit
Memory 2G DDR3 (4G, 8G optional)
Hard Drive Capacity 32G SSD
Hard Drive Optional SSD: 64G, 128GB, 256GB
HDD: 500GB, 1TB
Graphics CPU Integrated graphics HD Graphics and support 1080p HD photo quality
Audio Realtek ALC662, High Definition Audio (HD), Line in, Line out
Network 1xRealtek RTL 8111E Gigabit Ethernet controller
Wireless Network WIFI
RFID 1xRFID Modem
I/O Interface 3xUSB 2.0, 1xUSB 3.0, 1xRJ45, 2xRS232, 1xVGA/HDMI
Audio OUT/MIC IN/POWER DC
Operation System Support Windows 7/8/10, Linux, Ubuntu, Debian, etc.
LCD panel
Panel size 12"
Resolution 1024*768
Aspect ratio 4:3
Support Color 16.7M colors
Brightness (cd/m²) 300 (1000 nits, sunlight readable optional)
Response time 5ms
Contrast ratio 1000:1
View angle 80°/80°/80°/80° (R/L/U/D)
Touch panel
Touchscreen Type 5 wire resistive touch
Touch Interface USB (RS232 optional)
Touch response time <8ms
Luminousness 90%
Surface Hardness 3H
Working Life >35 million times
Touch options (capacitive touch optional)
Power Supply
External Power Supply AC 100-240V
Working voltage DC 12V
Power consumption ≤45W
Enclosure
Material Aluminum Alloy front bezel+High strength cold rolled steel back case
Color Silver, Black, white, color can be customized
VESA mounting 75x75mm/100x100mm
IP grade Full IP65 waterproof
Operating Environment
Temperature Range operating: -20 to 70°C, storage: -30 to 80°C
Relative humidity 5%~95% @ 40° C, non-condensing
Vibration 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
Packing Details
Net weight 4 kg
Gross weight 6.3 kg
Product Dimension 32.2x34.2x6cm
Packing size 47*43*19cm
Accessories Power adapter, waterproof VGA/RS232/LAN/USB cable/Power cord, Wall mount
Other
Mounting (options) embedded mounting screws
wall mounting brackets (optional)
desk stand holder (optional)
Warranty 1 year warranty
Certificate CE, FCC, RoHS



Pictures

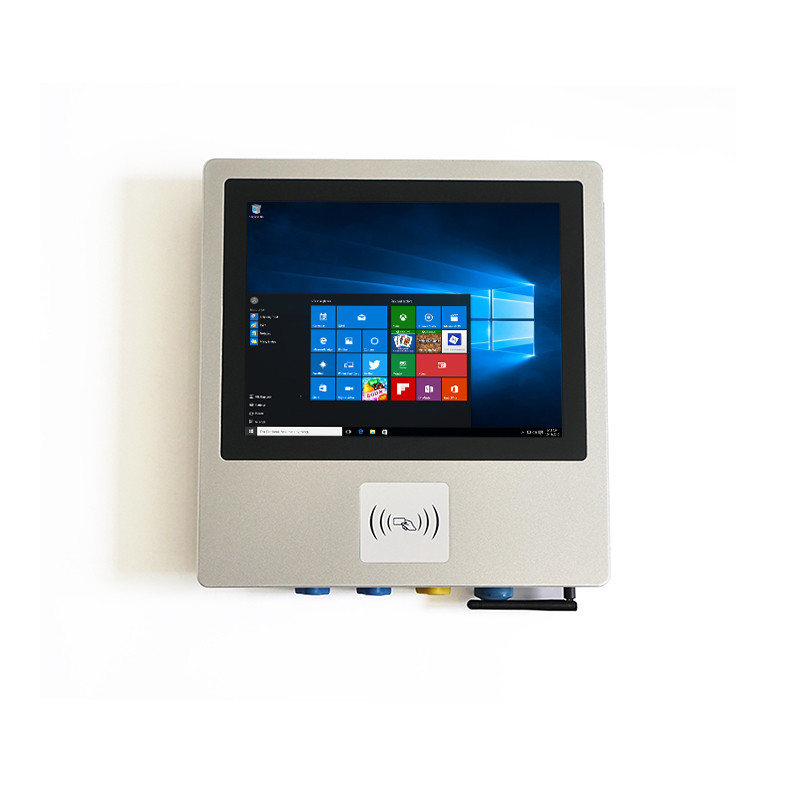

5 Wire Resistive Touch Screens  IP65 Integrated With RFID 05 Wire Resistive Touch Screens  IP65 Integrated With RFID 15 Wire Resistive Touch Screens  IP65 Integrated With RFID 25 Wire Resistive Touch Screens  IP65 Integrated With RFID 3
