Place of Origin:
Shenzhen, China
Brand Name:
Shinho
Certification:
CE, FCC, RoHS
Model Number:
SL12
Video
Video
12.1 Inch Sunlight Readable High Brightness Monitor LCD Wide Screen
Features
1. Front bezel aluminum alloy material, seamless design
2. Front panel IP65 rainproof
2. 1000cd/m², sunlight readable
4. High performance mainboard, 7x24 continuous working
5. Add mounting holes on front bazel, ideal for embedded mounting
6. Black, white, Silver, color can be customized
Customized Sevice
Muiti panel size available
400 nits, 1000 nits for choice
VGA, HDMI, DVI, Audio in/ out optional
LCD High Brightness Monitor Applications
Specification
| Model:SL12 | |
| LCD panel | |
| Panel size | 12.1" |
| Resolution | 1280×800 |
| Aspect ratio | 16:10 |
| Support Color | 16.7M colors |
| Brightness | 1000nits, sunlight readable |
| Contrast ratio | 1000:1 |
| View angle | 80°/80°/80°/80° (R/L/U/D) |
| Signal Ports | |
| VGA | 1×VGA |
| HDMI | 1×HDMI |
| DVI | optional |
| Audio in/out | optional |
| OSD | |
| OSD control | Brightness, contrast ratio, auto adjustment, H/V position, language select etc. |
| Support languages | English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese etc. |
| Support OS | Windows XP , Windows /7/8/10 , Linux, Mac OS X, Android ect. |
| Power Supply | |
| External Power Supply | AC 100 - 240V , 50-60Hz |
| Working voltage | DC 12-17V |
| Power consumption | ≤35W |
| Enclosure | |
| Material | Aluminum Alloy |
| Color | Black, white, Silver , color can be customized |
| VESA mounting | 75×75mm/100×100mm |
| Operating Environment | |
| Temperature Range | operating: -10 to 60°C, storage :-20 to 80°C |
| Relative humidity | operating: 10% to 80% , storage :5% to 90% |
| Packing Details | |
| Net weight | 2kg |
| Gross weight | 3.5kg |
| Product Dimension | 35.5×22×4.1cm |
| Packing size | 55×38×13cm |
| Accessories | Power adapter, VGA cable, , embedded screws,user manual,warranty card |
| Other | |
| Mounting | embedded mounting screws |
| wall mounting brackets (optional) | |
| desk stand holder (optional) | |
| Warranty | 1 year warranty |
| Certificates | CE,FCC,RoHS |

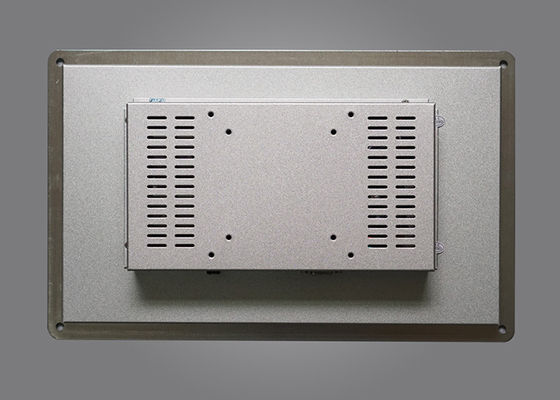

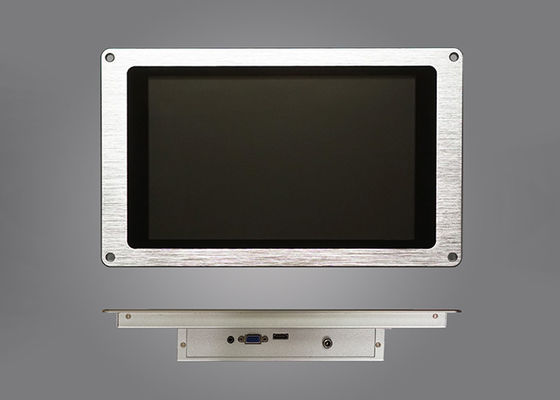

Pictures
