Place of Origin:
Shenzhen, China
Brand Name:
Shinho
Certification:
CE, FCC, RoHS
Model Number:
SL15
Video
Video

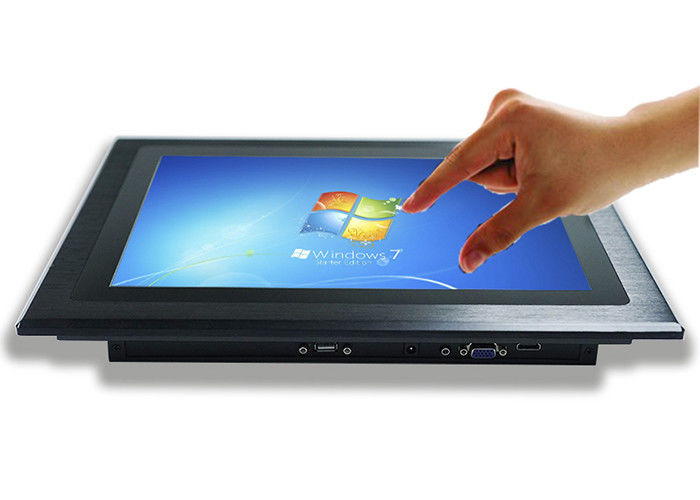

15 Inch Capacitive Touch Monitor with 1000 nit and front panel IP65
Features
1. Material is aluminum alloy and high strength rolled steel.
2. Front panel is IP65 waterproof and dustproof.
3. Project Capacitive Touch (10 points).
4. Wet finger is workable for the capacitive touchscreen
5. High brightness up to 1000 nits.
6. Industrial LCD panel with wide viewing angle, high nits and true color.
Applications
Medical environment
Chemical manufacturing
Food & beverage processing
Marine/Sailing boat
Security Turnstile
Outdoor Kiosk
PhotoBooth
Some other outdoor applications
Advantages
1. 2 kinds material combine suitable for different application.
2. Sunlight readable can be used for outdoor usage.
3. A smooth texture is beatiful and practical.
4. Symmetric design can be utillized in portrait mode with style.
5. Great for wall mounting, embedded mounting and open frame.
6. Flat panel and all material is aluminium alloy, more light.
Specification
| Model:SL15 | |
| LCD panel | |
| Panel size | 15" |
| Resolution | 1024*768 |
| Aspect ratio | 4:3 |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 1000 nits,sunlight readable |
| Contrast ratio | 1000:1 |
| View angle | 80°/80°/80°/80° (R/L/U/D) |
| Touch panel | |
| Touchscreen Type | Project Capacitive Touch (10 points ) |
| Surface Hardness | 7H |
| Luminousness | 90% |
| Touch Interface | USB (RS232 optional) |
| Touch response time | 2ms |
| Working Life | >50 million times |
| Touch options | (5 wires resistive touch, IR touch optional) |
| Signal Ports | |
| VGA | 1×VGA |
| HDMI | 1×HDMI |
| DVI | optional |
| Audio in/out | optional |
| OSD | |
| OSD control | Brightness, contrast ratio, auto adjustment, H/V position, language select etc. |
| Support languages | English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese etc. |
| Support OS | Windows XP , Windows /7/8/10 , Linux, Mac OS X, Android etc. |
| Power Supply | |
| External Power Supply | AC 100 - 240V |
| Working voltage | DC 12V |
| Power consumption | ≤35W |
| Enclosure | |
| Appearance | Flat panel |
| Material | Aluminum alloy front frame + High strength cold rolled steel rear case |
| Color | Black, white, Silver , color can be customized |
| VESA mounting | 75×75mm/100×100mm |
| IP grade | front panel IP65 |
| Operating Environment | |
| Temperature Range | operating: -10 to 60°C, storage :-20 to 80°C |
| Relative humidity | operating: 10% to 90% , storage :5% to 90% |
| Packing Details | |
| Net weight | 4.5KG |
| Gross weight | 5.5KG |
| Product Dimension | 40×32×4.83 cm |
| Packing size | 48×52×19cm |
| Accessories | Power adapter, HDMI cable, USB touch cable, embedded screws,user manual, warranty card |
| Other | |
| Mounting | embedded mounting screws |
| wall mounting brackets (optional) | |
| desk stand holder (optional) | |
| Warranty | 1 year warranty |
| Certificates | CE,FCC,RoHS |
Drawing
