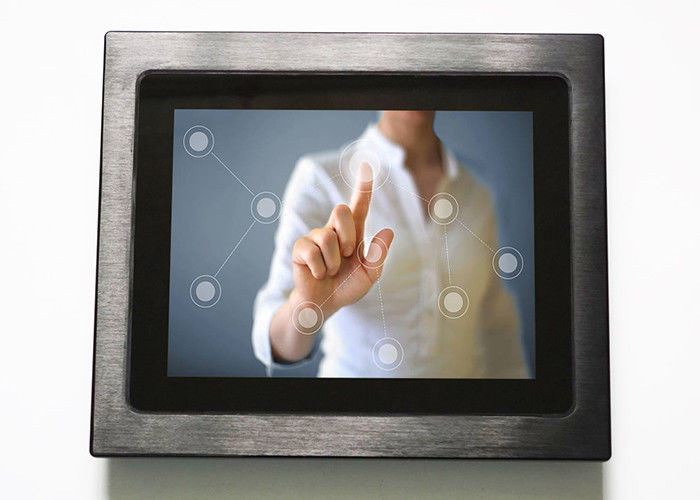

Multi Touch Screen Monitor / Touch PC Monitor With 6mm Tempered Glass

Multi Touch Screen Monitor / Touch PC Monitor With 6mm Tempered Glass

capacitive touch screen monitor

multi touch screen monitor

Place of Origin:

Shenzhen, China

Brand Name:

Shinho

Certification:

CE, FCC, RoHS

Model Number:

SL12

Contact Us
Request A Quote
Product Details
Panel Size:
12''
Resolution:
1024*768
Aspect Ratio:
4:3
View Angle:
80°/80°/80°/80° (R/L/U/D)
Touchscreen Type:
Project Capacitive Touch (10 Points )
Tempered Glass Thickness:
6mm
Touch Controller:
EETI
IP Grade:
Front Panel IP65
Payment & Shipping Terms
Minimum Order Quantity
1 piece
Price
Negotiation
Payment Terms
T/T, Paypal, L/C, D/A, D/P, Western Union, MoneyGram,
Product Description

12 Inch Capacitive Touch Monitor with 6mm tempered glass and front panel IP65





Features





1. Front bezel aluminum alloy brushed metal craft with seamless design.



2. IP65 waterproof and dustproof for front panel.


3. Adopt Project Capacitive Touchscreen (10 points).



4. With 6mm tempered glass, anti-vandal design.



5. Industrial LCD panel with wide viewing angle, high nits and true color.







Applications



Industrial control cabinet



Human Machine Interface



Supervisory control and data acquisition



Welding industry



CNC machinery control



Numerical control device



Industrial automation



Registered machine



Self-service payment machine



ATM machine







Advantages





1. High performance motherboard, 7x24 continuous operation, support Windows/Linux/Android etc.


2. There is one 6mm glass cover it, great anti-vandal.


3. Flat panel and smooth texture is beatiful and practical.


4. Symmetric design can be utillized in portrait mode with style.


5. Suitable for wall mounting, embedded mounting and open frame etc.









Specification



Model:SL12
LCD panel
Panel size 12"
Resolution 1024*768
Aspect ratio 4:3
Support Color 16.7M colors
Brightness (cd/m²) 400+
Contrast ratio 1000:1
View angle 80°/80°/80°/80° (R/L/U/D)
Touch panel
Touchscreen Type Project Capacitive Touch (10 points )
Tempered Glass Thickness 6mm
Touch Controller EETI
Surface Hardness 7H
Luminousness 90%
Touch Interface USB (RS232 optional)
Touch response time 2ms
Working Life >50 million times
Touch options ( 5 wires restive touch, IR touch optional)
Signal Ports
VGA 1×VGA
DVI 1×DVI
HDMI 1×HDMI
Audio in/out optional
OSD
OSD control Brightness, contrast ratio, auto adjustment, H/V position, language select etc.
Support languages English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese etc.
Support OS Windows XP , Windows /7/8/10 , Linux, Mac OS X, Android etc.
Power Supply
External Power Supply AC 100 - 240V
Working voltage DC 12V
Power consumption ≤35W
Enclosure
Appearance Flat panel
Material Aluminum alloy front frame + High strength cold rolled steel rear case
Color Black, white, Silver , color can be customized
VESA mounting 75×75mm/100×100mm
IP grade front IP65
Operating Environment
Temperature Range operating: -10 to 60°C, storage :-20 to 80°C
Relative humidity operating: 10% to 90% , storage :5% to 90%
Packing Details
Net weight 4kg
Gross weight 6kg
Product Dimension 34.6×28.45×3.76 cm
Packing size 44×36×19 cm
Accessories Power adapter, VGA/DVI /HDMI cable, USB touch cable, embedded screws
Other
Mounting (options) 1) provide wall brackets for wall-mounting, VESA 100×100mm
2) provide stable metal holder to support the monitor
Warranty 1 year warranty
Certificates CE,FCC,RoHS





Drawing



Multi Touch Screen Monitor / Touch PC Monitor With 6mm Tempered Glass 0
