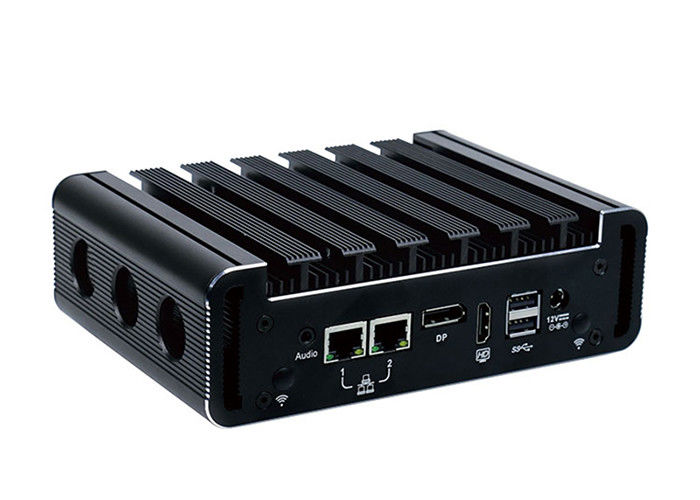

Professional Fanless Industrial Mini PC With CPU I3 6100U And DP Port

Professional Fanless Industrial Mini PC With CPU I3 6100U And DP Port

fanless industrial computer

industrial fanless mini pc

Place of Origin:

Shenzhen , China

Brand Name:

Shinho

Model Number:

SCMNI180-P

Contact Us
Request A Quote
Product Details
Type:
Fanless Industrial Computer
CPU:
Intel® Core I3-6100U, Dual Core, 2.3GHz.
RAM:
4G DDR3
Hard Disk:
64G SSD
Ports:
4×USB 3.0, 2x USB 2.0, 1x HDMI, 1xDP, 2x COM, 1x Audio, 2x RJ45 1000M Lan, Etc.
Color:
Black
Payment & Shipping Terms
Minimum Order Quantity
1 Piece
Price
Negotiable
Payment Terms
T/T , Paypal , L/C , D/A , D/P , Western Union , MoneyGram
Product Description

Fanless Industrial MINI Computer With CPU i3 6100U And DP Port






Features:



1. High-performance motherboard, 7x24 continuous operation.



2. Fanless CPU, all enclosure is aluminum alloy design.



3. Onboard Intel skylake i3 6100U, i5 6200U.



4. There is heatsink in the top.



5. Support MAX DDR4 1866/2133 16G



6. Support WIFI/3G/4G.



7. Support 6*USB 3.0.



8. Compatible Windows 7/8/10, Linux OS.









Application



It can be used for industrial control cabinet, Human Machine Interface, supervisory control and data acquisition, Welding industry, CNC machinery control, Numerical control device and other industrial automation etc.









Advantages



1. High reliability, continuous production and decreasing failure rate.



2. Intel® Core i5-6200U, dual core , 2.3GHz CPU optional, suitable for your various demands.



3. Support hardware reset (256 level, 0-255 sec)



4. Expanded display for Multi-task, Electricity Boot.

5. Work well in the industrial environment.



6. Signal ports are HDMI and DP.



7. Support 2x Realtek 8111 E 10/100/1000M.





Specification



Model:SCMNI180-P
PC
CPU Intel® Core i3-6100U, dual core , 2.3GHz.
CPU optional Intel® Core i5-6200U, dual core , 2.3GHz.
Memory 4G DDR3 (2G,8G optional)
Hard Drive Capacity 64G SSD
Hard Drive Optional SSD: 32G,128GB,256GB
HDD: 500GB,1TB
Audio Integrated Realtek ALC662 6 sound channel
I/O Interface 4×USB 3.0, 2x USB 2.0, 1x HDMI, 1xDP, 1x Power switch, 1x 2 in 1 Audio, 1x DC 12V port
2x COM, 1x Audio, 2x RJ45 1000M Lan,
Network 2x Realtek 8111 E 10/100/1000M
BIOS 64Mb SPI FALSH
WDT Support hardware reset (256 level, 0-255 sec)
Resolution support above 800*600
Hd support 1080P
Operation System Support Windows 7/8/10, Linux, Ubuntu, Debian etc.
Power Supply
External Power Supply AC 100 - 240V
Working voltage DC 12V
Power consumption ≤40W
Enclosure
Material Aluminum Alloy Die casting
Color Black, color can be customized for bulk orders.
Operating Environment
Temperature Range Operating: -10 to 50°C, storage :-10 to 60°C
Relative humidity 0%~95% , non-condensing
Packing Details
Net weight 0.65kg
Gross weight 1.3kg
Product Dimension 20*12.7*5.6cm
Packing size 28×25×8cm
Accessories Power adapter, open frame kits, user manual, warranty card
Other
Mounting (options) open frame
wall mounting brackets (optional)
Warranty 3-years warranty





Attention of warranty
1. First-year warranty: by free
2. 2nd to 3rd-year warranty: maintaining by some charges.





Drawing
