Anti Vandal Capacitive Touch Monitor1920*1080 High Resolution For Troubleshoot HVAC Unit

Anti Vandal Capacitive Touch Monitor1920*1080 High Resolution For Troubleshoot HVAC Unit
Anti Vandal Capacitive Touch Monitor1920*1080 High Resolution For Troubleshoot HVAC Unit Anti Vandal Capacitive Touch Monitor1920*1080 High Resolution For Troubleshoot HVAC Unit Anti Vandal Capacitive Touch Monitor1920*1080 High Resolution For Troubleshoot HVAC Unit

Large Image :  Anti Vandal Capacitive Touch Monitor1920*1080 High Resolution For Troubleshoot HVAC Unit

Product Details:

Place of Origin: Shenzhen,China
Brand Name: SHINHO
Certification: CE, FCC, RoHS
Model Number: SL156

Payment & Shipping Terms:

Minimum Order Quantity: 1 Piece
Price: Negotiable
Packaging Details: 1PC/Carton, Weight: 5.5kg, Carton size: 52*46*18cm
Delivery Time: 3-5 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, Paypal, MoneyGram
Supply Ability: 5000 Pieces Per Month
Detailed Product Description
Product Name: High Resolution Anti-vandal Touch Screen Monitor Resolution: 1920x1080
Aspect Ratio: 16:9 Interfaces: HDMI VGA DVI
Brightness: 400 Nits Wide Voltage: 12V
Touch Type: Project Capacitive Touch (10 Points ) IP Grade: Front Panel IP65 Waterproof
Temperature Range: Operating: -20 To 75°C, Storage: -20 To 80°C Mounting Way: Embedded Mounting
High Light:

capacitive touch screen monitor

,

multi touch screen monitor

-20 Degree Support 1920*1080 High Resolution Anti-vandal Touch Screen Monitor For Troubleshoot HVAC Unit



Features



1. Fully enclosed design, the whole monitor is dustproof.


2. Front bezel aluminum alloy brushed metal craft, seamless design, front panel IP65 waterproof.


3. Adopt multi-points PCAP touch panel, high sensitive and fast-response. Covered with 2mm tempered glass for vandalproof.


4. High performance mainboard, 7x24 continuous operation.


5. VGA+HDMI+DVI interfaces, USB for touch.


6. Industrial LCD panel,High resolution, 1920*1080.


7. Wide temperature tange: operating: -20 to 75°C, storage: -20 to 80°C.


8. Ultra-thin front bezel 3mm, ideal for embedded mounting.​



Specification



Model:SL156
LCD panel
Panel size 15.6"
Resolution 1920*1080
Aspect ratio 16:9
Support Color 16.7M colors
Brightness (cd/m²) 400
Contrast ratio 1000:1
View angle 85°/85°/85°/85° (R/L/U/D)
Touch panel
Touchscreen Type Project Capacitive Touch (10 points )
Surface Hardness 7H
Luminousness 90%
Touch Interface USB (RS232 optional)
Touch response time 2ms
Working Life >50 million times
Touch options (5 wires restive touch, IR touch optional)
Signal Ports
VGA 1x VGA
DVI 1x DVI
HDMI 1x HDMI
Audio in/out optional
OSD
OSD control Brightness, contrast ratio, auto adjustment, H/V position, language select, etc.
Support languages English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese, etc.
Support OS Windows XP, Windows /7/8/10, Linux, Mac OS X, Android, ect.
Power Supply
External Power Supply AC 100 - 240V, 50-60Hz
Working voltage DC 12V
Power consumption ≤35W
Enclosure
Material Aluminum Alloy
Color Black, Silver
VESA mounting 75x75mm/100x100mm
IP grade Front panel IP65 waterproof
Operating Environment
Temperature Range operating: -20 to 75°C, storage: -20 to 80°C
Relative humidity operating: 10% to 80%, storage: 5% to 90%
Packing Details
Net weight 4kg
Gross weight 5.5kg
Product Dimension 42*26.9*5.05cm
Packing size 52*46*18cm
Accessories Power adapter, VGA cable, USB touch cable, embedded screws, user manual, warranty card
Other
Mounting embedded mounting screws
wall mounting brackets (optional)
desk stand holder (optional)
Warranty 1 year warranty
Certificates CE, FCC, RoHS





High Resolution Anti-vandal Touch Screen Monitor Applications

  • troubleshoot HVAC unit

  • Intelligent express cabinet

  • Testing equipment

  • Clothes recycling bins

  • Self service kiosk

  • Self-service identity card collection machine

  • Vending machine

  • Self service photo booth



Pictures

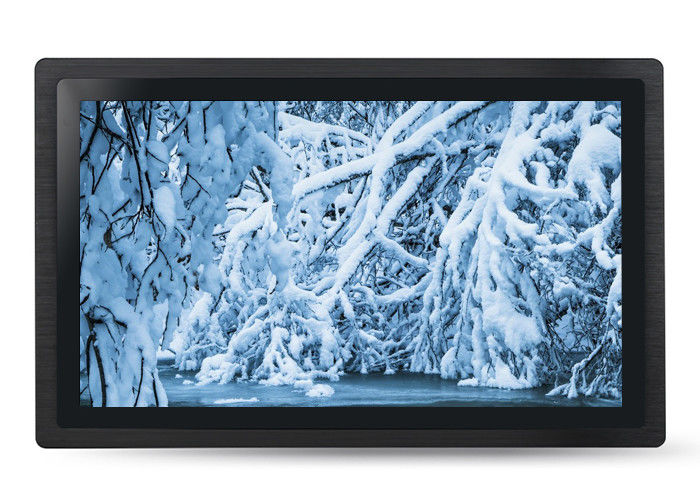

Anti Vandal Capacitive Touch Monitor1920*1080 High Resolution For Troubleshoot HVAC Unit 0
