Place of Origin:
Shenzhen, China
Brand Name:
SHINHO
Certification:
CE, FCC, RoHS
Model Number:
SL116
Video

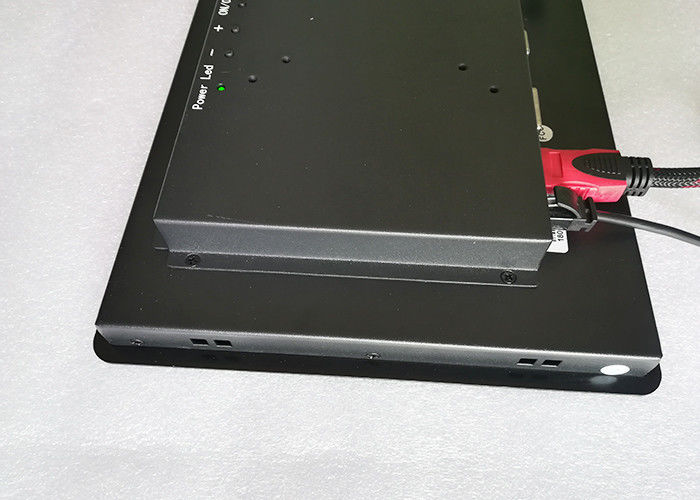

11.6 Inch Full HD 1920x1080 VGA HDMI LCD Touch Display For Payment Terminals
Feature
11.6 inch TFT LCD panel
Full HD 1920X1080 resolution, 16:9 widescreen
HDMI VGA signal port
Touchscreen type: capacitive touch, no touch
Front panel waterproof IP65 rated
300 nits for indoor use
Front 3mm thin bezel, perfect for panel mount
High performance mainboard, 7x24 continuous operation
Specification
|
Model: SL116 |
|
|
LCD panel |
|
|
Panel size |
11.6" |
|
Resolution |
1920*1080 |
|
Aspect ratio |
16:9 widescreen |
|
Support Color |
16.7M colors |
|
Brightness (cd/m²) |
300+ |
|
Contrast ratio |
1000:1 |
|
View angle |
80°/80°/80°/80° (R/L/U/D) |
|
Touch panel |
|
|
Touchscreen Type |
Project Capacitive Touch (10 points ) |
|
Surface Hardness |
7H |
|
Luminousness |
90% |
|
Touch Interface |
USB (RS232 optional) |
|
Touch response time |
2ms |
|
Working Life |
>50 million times |
|
Touch options |
or without touch |
|
Signal Ports |
|
|
VGA |
1x VGA |
|
DVI |
1x DVI |
|
HDMI |
1x HDMI |
|
Audio in/out |
optional |
|
OSD |
|
|
OSD control |
Brightness, contrast ratio, auto adjustment, H/V position, language select, etc. |
|
Support languages |
English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese, etc. |
|
Support OS |
Windows XP, Windows /7/8/10, Linux, Mac OS X, Android, ect. |
|
Power Supply |
|
|
External Power Supply |
AC 100 - 240V, 50-60Hz |
|
Working voltage |
DC 12-24V |
|
Power consumption |
≤35W |
|
Enclosure |
|
|
Material |
Aluminum Alloy |
|
Color |
Black, Silver |
|
VESA mounting |
75x75mm/100x100mm |
|
IP grade |
Front panel IP65 waterproof |
|
Operating Environment |
|
|
Temperature Range |
operating: -10 to 60°C, storage: -20 to 80°C |
|
Relative humidity |
operating: 10% to 80%, storage: 5% to 90% |
|
Packing Details |
|
|
Net weight |
2kg |
|
Gross weight |
3kg |
|
Product Dimension |
42.37*24.85*4.3cm |
|
Packing size |
43*38*18cm |
|
Accessories |
Power adapter, VGA cable, USB touch cable, embedded screws, user manual, warranty card |
|
Other |
|
|
Mounting |
embedded mounting screws |
|
wall mounting brackets (optional) |
|
|
desk stand holder (optional) |
|
|
Warranty |
1 year warranty |
|
Certificates |
CE, FCC, RoHS |
Application
Payment terminals
Smart parking systems
Access control
Machine vending reverse recycled
Charging stations
Self-Service Kiosk
Home automation
Industrial device
Elevator advertising
