Rugged Resistive Touch Monitor 8" LCD 1000 Nits Sunlight Readable HDMI Input

Place of Origin China(Mainland)
Brand Name SHINHO
Certification CE, FCC, RoHS
Model Number SL08
Minimum Order Quantity 1 piece
Price Negotiable
Payment Terms T/T, Western Union, MoneyGram, Paypal

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Rugged LCD Monitor 8" Resolution 1024*768 4:3
IP Grade Front IP67 Waterproof Brigtness 1000 Nits Sunlight Readable
Voltage 12-24V Wide Voltage Touch Type Resistive Touch Screen
Light Adjustment Buttons, Light Sensor Signal Port HDMI VGA Input
High Light

touch screen display monitor

,

resistive touch screen monitor

,

8" LCD 1000 Nits Resistive Touch Monitor

Leave a Message
Product Description

Rugged Resistive Touch Screen Monitor 8" LCD 1000 Nits Sunlight Readable HDMI Input



Features

This 8 inch LCD monitor comes with 4 wire resistive touch screen. It's high brightness 1000 nits sunlight readable, which means you can see the screen clearly even in direct strong sunlight. We add a light sensor on the front bezel. It will reduce brightness automatically when it's dark. It won't hurt eyes, and at the same energy saving and longer the monitor's life span. If you don't need the light sensor, you can turn it off, and adjust brightness manually by buttons on front bezel. The front panel is fully sealed, IP67 rate waterproof. It's quite suitable for outdoor application. We choose wide temperature industrial grade LCD panel. No worries even the temperature is very high in your country. There is both HDMI and VGA input on this monitor.



Specification

Model: SL08

LCD panel

Panel size

8"

Resolution

1024*768

Aspect ratio

4:3

Support Color

16.7M colors

Brightness (cd/m²)

1000 nits sunlight readable, with light sensor for auto dimming

Contrast ratio

800:1

View angle

80°/80°/80°/80° (R/L/U/D)

Touch panel

Touchscreen Type

4 wires restive touch

Surface Hardness

3H

Luminousness

90%

Touch Interface

USB (RS232 optional)

Touch response time

2ms

Working Life

>35 million times

Touch options

(10 points Project Capacitive Touch, IR touch optional)

Signal Ports

VGA

1x VGA

HDMI

1x HDMI

Audio in/out

Optional

OSD

OSD control

Brightness, contrast ratio, auto adjustment, H/V position, language select, etc.

Support languages

English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese etc.

Support OS

Windows XP, Windows /7/8/10, Linux, Mac OS X, Android, ect.

Power Supply

External Power Supply

AC 100 - 240V, 50-60Hz

Working voltage

DC 12V

Power consumption

≤35W

Enclosure

Material

Aluminium alloy bezel + High strength cold rolled steel back case

Color

Black, white, Silver, color can be customized

VESA mounting

75x75mm

IP grade

Front panel IP67 waterproof

Operating Environment

Temperature Range

Operating: -20 to 70°C, storage: -30 to 80°C

Relative humidity

Operating: 10% to 80%, storage: 5% to 90%

Packing Details

Net weight

1.5kg

Gross weight

2kg

Product Dimension

22.3x18x3.3cm

Packing size

33x30x10cm

Accessories

Power adapter, USB touch cable, HDMI/VGA cable, embedded screws

Other



Embedded mounting

mounting

Wall mounting brackets (optional)

Desk stand holder (optional)

Warranty

1 year warranty

Certificates

CE, FCC, RoHS



Application

Testing equipment

Water dispenser machine

Factory automation

Electric car charging station

Parking management system

Golf ball dispenser machine

Self service machine

Reverse vending machine

Gas station

Agricultural automation



Pictures

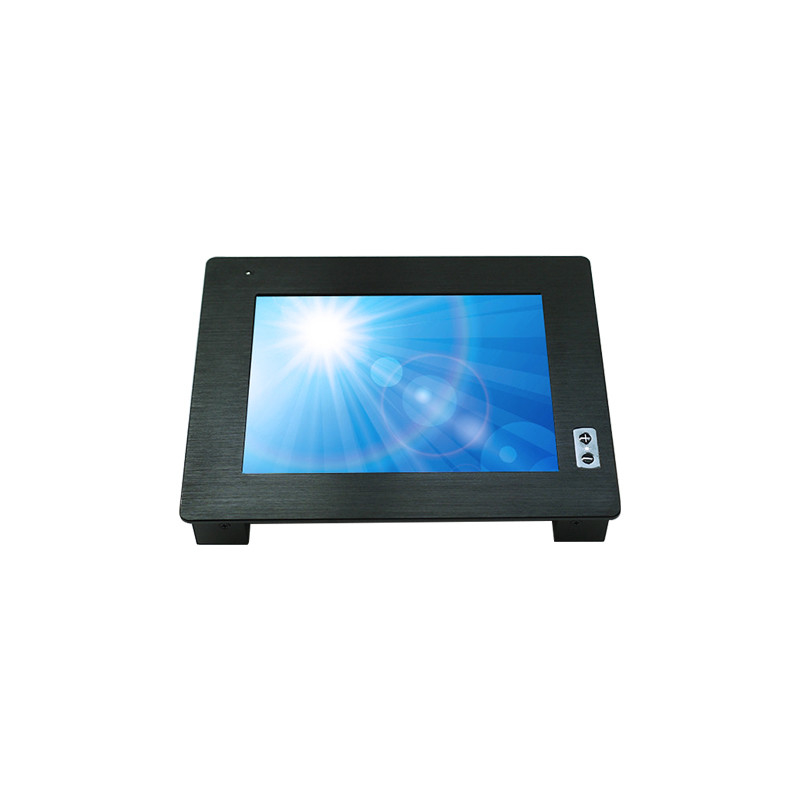

Rugged Resistive Touch Monitor 8" LCD 1000 Nits Sunlight Readable HDMI Input 0

Rugged Resistive Touch Monitor 8" LCD 1000 Nits Sunlight Readable HDMI Input 1

Rugged Resistive Touch Monitor 8" LCD 1000 Nits Sunlight Readable HDMI Input 2
