7'' 10.1'' Industrial Android Tablet PC Touch Screen TFT LCD Display For Automation
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Panel Size | 7'', 10.1'', 11.6'' | Aspect Ratio | 16:9 Or 16:10 |
|---|---|---|---|
| Touchscreen Type | 10 Point Capacitive Touch | Material | Aluminum Alloy |
| Color | Black Or Silver | Keywords | Industrial Android Tablet PC |
| High Light | rugged android tablet,industrial grade tablets |
||
Product Description

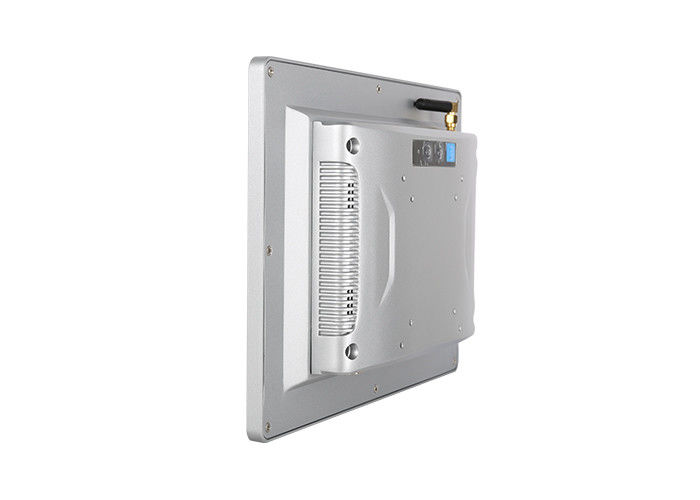

7'', 10.1'', 11.6 Inch Industrial Android Tablet PC With Touch Screen For Automation
The Android Tablet provides high-resolution TFT LCD display with anti-scratch Gorilla™ glass. Moreover, this projected capacitive multi-touch panel offers outstanding viewing and operating experience. The front panel is IP65 rated for ingress protection, making it fully resistant to dust and water. It is an extreme operating temperature range at -10°C ~55°C. There is customization module such as builted in a G-sensor, light sensor, E-compass and GPS navigation, suitable for a great number of applications can be realized.
Features:
1. TFT LCD Display with LED backlight.
2. The front bezel is IP65 dustproof and waterproof.
3. The touchscreen is projected capacitive touch (10 points).
4. CPU is A64 support Android™ v 6.0.
5. Various kinds of color can be made customization, our standard color are black and silver.
6. Viewing angle is full range: 89°/89°/89°/89° (R/L/U/D).
Advantages
1. Super thin and ultra narrow bezel design, the whole tablet PC is dustproof.
2. True flat panel with aluminum alloy brushed and seamless IP65 waterproof.
3. Full aluminum alloy enclosure with paint spraying and dull polish, anti-EMI, corrosion resistance, the excellent performance of heat dissipation.
4. The industrial LCD panel, wide viewing angle, high nits, and true color.
5. Adopt multi-points PCAP touch panel, high sensitive and fast-response. Covered with 2mm tempered glass for vandal-proof.
6. High-performance motherboard, 7x24 continuous operation.
7. Built-in WiFi and Bluetooth.
Specification
| Model: SC07A/SC101A/SC116A | |
| PC | |
| CPU | A64, Cortex-A53, Quad-core, 1.5GHz |
| Memory | 2GB DDR3 |
| Storage | 8GB EMMC |
| Decoding Resolution | HDMI support 4K |
| Operation System | Android 6.0 |
| Play Modes | Support timing, loop, and spots, etc. play modes |
| Network Support | Ethernet, Bluetooth, WIFI, (4G, 3G optional) |
| Image Format | JPG/BMP/GIF/TIFF/PNG |
| Video Format | RMVB, FLV, MPEG1/2/4, AVI, WMV, MOV, MP4, TS, etc. |
| Audio Format | MP3, WMA, AAC, etc. |
| RTC Real Time Clock | YES |
| I/O Interfaces | |
| DC | 1xDC 12V |
| USB | 1xUSB, 1xUSB(HOST) |
| Micro USB | 1xMicro USB(OTG) |
| Card Slot | 1xSD/TF card slot |
| HDMI | 1xHDMI , support 1080p |
| LAN | 1xRJ45, 10M/100M adaptive ethernet |
| Audio | 1x Audio I/O |
| COM | 2xCOM |
| LCD panel | |
| Panel size | 7'', 10.1'', 11.6" |
| Resolution | 1024*600/1280*800/1920*1080 |
| Aspect ratio | 16:9 OR 16:10 |
| Support Color | 16.7M colors |
| Brightness | 300 cd/m² |
| Response time | 5ms |
| Contrast ratio | 800:1 |
| View angle | 80°/80°/80°/80° (R/L/U/D) |
| Touch panel | |
| Touchscreen Type | 10 point capacitive touch |
| Touch response time | <2ms |
| Luminousness | 90% |
| Surface Hardness | 7H |
| Working Life | >50 million times |
| Power Supply | |
| External Power Supply | AC 100 - 240V |
| Working voltage | DC 12V |
| Power consumption | ≤15W |
| Enclosure | |
| Appearance | Flat panel |
| Material | Aluminum alloy |
| Color | Black, Silver |
| VESA mounting | 75x75mm, 100x100mm |
| IP grade | Front IP65 waterproof |
| Operating Environment | |
| Working temperature | -10°C to 60°C |
| Storage temperature | -20°C to 60°C |
| Relative humidity | 5-85% (non-condensing) |
| Vibration resistance | 5-19Hz/1.0mm amplitude, 19-200Hz/1.0g acceleration |
| Impact resistance | 10g acceleration, 11ms period |
| Packing Details | |
| Net weight | 2.6 kg |
| Gross weight | 3.1 kg |
| Product dimension | 30.59x21.12x4.88 cm |
| Packing size | 40x34x17 cm |
| Accessories | Power adapter, power cord, warranty card, user manual |
| Other | |
| Mounting way | wall mounting bracket (optional) |
| desk stand holder (optional) | |
| Customization (optional) | 3G, 4G, Webcam, RFID reader, etc. optional |
| Warranty | 1-year warranty |
