Place of Origin:
Shenzhen,China
Brand Name:
Sihovision
Certification:
CE,FCC, RoHS
Model Number:
SL104

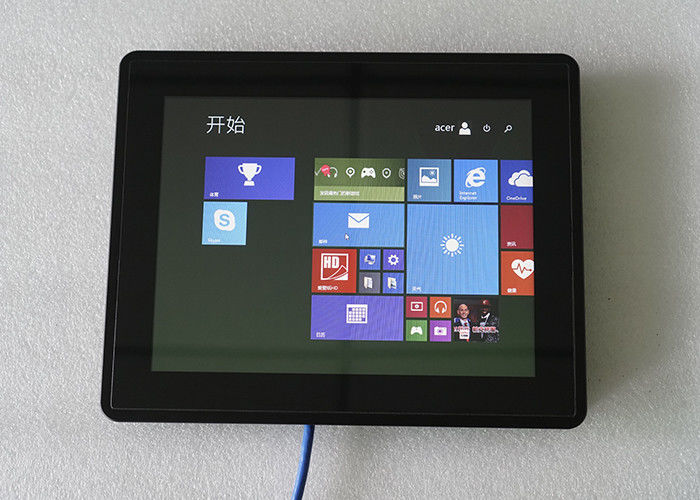

10.4inch USB Powered Touchscreen Monitor, support video signal, power and touch over a single USB3.0 cable
Features:
1. Front bezel aluminum alloy brushed metal craft, seamless design, front IP65 waterproof and dustproof.
2. Industrial LCD panel, wide viewing angle, high nits, true color.
3. Adopt multi-points PCAP touch panel, high sensitive and fast-response.
4. High performance mainboard, 7x24 continuous operation.
5. Support wall mounting,embedded mounting,desk stand mouting etc.
6. Support video signal, power and touch over a single USB3.0 cable.
Specification
| 10.4" USB Powered Touchscreen Monitor (Model:SL104) | |
| LCD panel | |
| Panel size | 10.4" |
| Resolution | 1024*768 |
| Aspect ratio | 4:3 |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 400+ |
| Contrast ratio | 800:1 |
| View angle | 80°/80°/80°/80° (R/L/U/D) |
| Touch panel | |
| Touchscreen Type | Project Capacitive Touch (10 points ) |
| Surface Hardness | 7H |
| Luminousness | 90% |
| Touch Interface | USB (RS232 optional) |
| Touch response time | 2ms |
| Working Life | >50 million times |
| Touch options | (5 wires restive touch, IR touch optional) |
| Signal Ports | |
| USB | 1×USB (support video signal, power, and touch over a single USB3.0 cable) |
| OSD | |
| OSD control | Brightness, contrast ratio, auto adjustment, H/V position, language select, etc. |
| Support languages | English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese, etc. |
| Support OS | Windows XP, Windows /7/8/10, Linux, Mac OS X, Android, ect. |
| Power Supply | |
| External Power Supply | AC 100 - 240V, 50-60Hz |
| Working voltage | DC 12V |
| Power consumption | ≤15W |
| Enclosure | |
| Material | aluminium alloy bezel+High strength cold rolled steel back case |
| Color | Black, Silver |
| VESA mounting | 100x100mm |
| IP grade | Front panel IP65 waterproof |
| Operating Environment | |
| Temperature Range | operating: -10 to 60°C, storage: -20 to 80°C |
| Relative humidity | operating: 10% to 80%, storage: 5% to 90% |
| Packing Details | |
| Net weight | 1kg |
| Gross weight | 1.5kg |
| Product Dimension | 26.6*21.4*2.75cm |
| Packing size | 33*30*10cm |
| Accessories | USB3.0 cable |
| Other | |
| Mounting | embedded mounting screws |
| wall mounting brackets (optional) | |
| desk stand holder (optional) | |
| Warranty | 1 year warranty |
| Certificates | CE, FCC, RoHS |
Package
Certifications
OEM & ODM
About Shinho Electronic
Application
Application
Smart City
Intelligent Education
Public Transportation
Commercial Terminals
Industrial automation area
