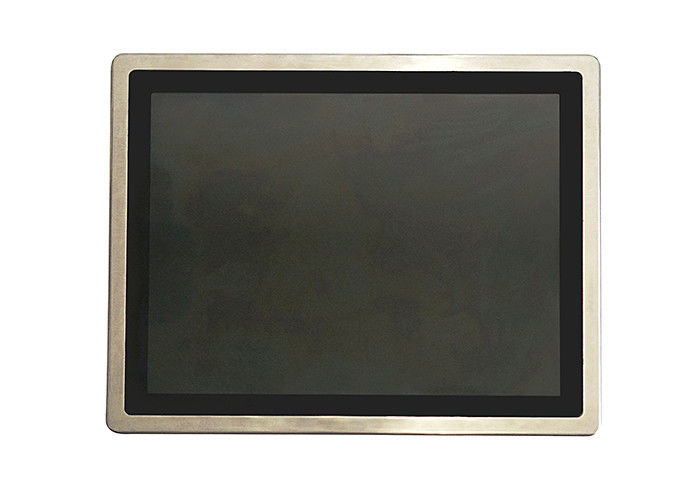

-20 To 70°C 1000 Nits Sunlight Readable 15" Industrial LCD Touch Monitor
Feature
1. Robust and durable 316 stainless steel enclosure, sealing design, full IP65 waterproof, Sealed I/O with cable set included.
2. 15'' Industrial LCD panel, 1000 nits. sunlight readable.
3. Adopt multi-points PCAP touch panel, high sensitive and fast-response. Covered with 3mm tempered glass for vandal-proof.
4. EETI waterproof solution, touch function can work well with drop water on the screen.
5. Optical boding.
6. Wide temperature range: operating: -20 to 70°C, storage: -30 to 80°C.
7. High performance mainboard, 7x24 continuous operation.
8. Wide voltage support: 9V-36V.
Specification
| Model: SL15 | |
| LCD panel | |
| Panel size | 15" |
| Resolution | 1024*768 |
| Aspect ratio | 4:3 |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 1000 cd/m², sunlight readable |
| Contrast ratio | 1000:1 |
| View angle | 80°/80°/80°/80° (R/L/U/D) |
| Customization | Covered 3mm tempered glass |
| Signal Ports | |
| VGA | 1x VGA |
| HDMI | 1x HDMI |
| DVI | optional |
| Audio in/out | optional |
| OSD in the front bezel | |
| OSD control | Brightness, contrast ratio, auto adjustment, H/V position, language select, etc. |
| Support languages | English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese, etc. |
| Support OS | Windows XP, Windows /7/8/10, Linux, Mac OS X, Android, ect. |
| Power Supply | |
| External Power Supply | AC 100 - 240V, 50-60Hz |
| Working voltage | 9V-36V |
| Power consumption | ≤35W |
| Enclosure | |
| Material | 316 Stainless steel |
| Color | Silver |
| VESA mounting | 100x100mm |
| IP grade | Full IP65 waterproof |
| Operating Environment | |
| Temperature Range | operating: -20 to 70°C, storage: -30 to 80°C |
| Relative humidity | operating: 10% to 90%, storage: 5% to 90% |
| Packing Details | |
| Net weight | 6 KG |
| Gross weight | 7 KG |
| Product Dimension | 36.47*38.9*5.8cm |
| Packing size | 48x45x19 cm |
| Accessories | IP65 waterproof Power adapter, waterproof VGA/HDMI/USB touch cable |
| Other | |
| Mounting | VESA mounting |
| embedded mounting screws (optional) | |
| desk stand holder (optional) | |
| Warranty | 1 year warranty |
| Certificates | CE, FCC, RoHS |
Drawing
Application
Shopping Mall
Super Market
Smart home
Metro station
Compang
Hospital
Airport
Restaurant
Automobile 4S stores
Automatic pay station machine
Packaging testing equipment
Parking lot self-service payment machine
