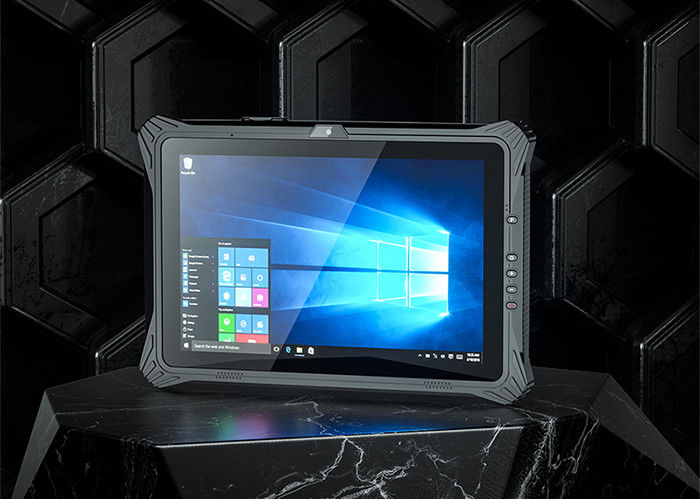

6300mAh RJ45 Ethernet Industrial Rugged Tablet HDMI 280cd/m2
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xCPU | I5-8250U/ I7-8550U | RAM | 8GB |
---|---|---|---|
Storage | 128G | Operation System | Windows 10 |
Camera | Front:2.0MP, Rear: 8.0MP USB Camera With Flash Light | Screen | 12.2" |
Resolution | 1920*1200 | Brightness | 280cd/m2 |
Touchscreen | Capacitive(10 Points) | Baterry | 7.4V/6300mAh |
IP Grade | IP65 Waterproof | ||
High Light | RJ45 Ethernet Industrial Rugged Tablet,6300mAh Industrial Rugged Tablet,280cd/m2 Industrial Tablet PC |
Features
1.Support Windows 10,windows 7;
2.Support USB3.0 type A connector;
3.Support Battery Single Charger Docking;
4.Support GPS navigation;
5.Support 1D/2D barcode scanner;
6.Support Finger Identification;
7.Rugged IP65 protection level;
8.Support 6300mAh pluggable battery, big and small double batteries;
9.Support UART port, RJ45 port and customized port;
10.Support Wrist Strap and back jacket;
Specification
Model:R-I20VKU | |
PC | |
CPU | 8th Generation KBL-R Intel® Core™ i5-8250U, 4M Cache, 3.40 GHz |
8th Generation KBL-R Intel® Core™ i7-8550U, maximum frequency 4.0 GHz | |
GPU | Intel® UHD Graphics 620 |
RAM | 8GB DDR4L (16G optional) |
SSD | NGFF, 128GB removable(256GB, 512GB optional) |
TPM | TPM2.0 SLB9665T |
G_sensor | Gravity acceleration sensor |
Fingerprint | 1*SPI Fingerprint (windows hellow boot login) |
Fan | 1*IPX5 Fan |
NFC | NA (NXP100 optional) |
WIFI | WIFI 802.11(a/b/g/n/ac) dual frequency 2.4G+5.8G WIFI intel 3165D2WG (3.3v) |
Bluetooth | BT4.2 (BLE) class1 transmited distance:10m (Bluetooth 5.1 Optional) |
4G | EC25-EC LTE FDD: B1/B3/B7/B8/B20/B28A WCDMA: B1/B8 GSM: B3/B8 China (China Unicom Telecom, mobile support is not good, only B8 supports no TDD band) Europe, Middle East, Africa, Taiwan, Japan |
GPS | U-blox M8Q ,Support: GPS, Beidou module, glonass |
Camera | Front:2.0MP, Rear: 8.0MP USB Camera With flash light |
Speaker | Embedded 8Ω/0.8W waterproof speaker |
Mic | Sensitivity: -42db, Output resistance: 2.2kΩ |
Operation System | windows 10 Home/ Pro/ IOT 64bit |
LCD panel | |
Panel size | 12.2 inch (Optical bonding Optional) |
Resolution | 1920*1200 |
Aspect ratio | 16:10 |
Brightness (cd/m²) | 280 cd/m2 (400 cd/m2 Optional) |
Touch panel | |
Touchscreen Type | Project Capacitive Touch (10 points), G+G |
Surface Hardness | 7H |
Optional | SLR Sunlight readable film |
Interface | |
USB3.0 | 1*USB 3.0 |
Type C | 1*Type C (USB3.0/HDMI/Charging) |
Audio Output | 1*3.5mm |
HDMI | 1*HDMI 1.4a mini |
TF Slot | 1*TF Slot, max: 128G |
SIM | 1*SIM |
Power | 1*DC 19V 3.42A, 5.5mm Power Connector |
pogo pin | 1*12pin (USB&Docking charging) |
Keys | |
F KEY | 1*Scanner key, No barcode then customizable ((GPIO) |
Volume+ | 1*Volume adjustment key(+) |
Volume- | 1*Volume adjustment key(-) |
Windows | 1 |
Power Switch | 1*DC |
Pilot lamp | |
Power | Power on is always blue, power off light is off *1 |
Baterry | (Red and Green) Charging red, full of green, red light flashing on low power, not discharging*1 |
Power Supply | |
Power Adaptor | AC100V~240V, 19V3.42A/65W |
Battery1 | Build in Lithium-ion polymer battery, Non-removable |
Capacity: 7.4V/860mAh | |
Endurance: 30mins(default 50% volumn, default200nit, play 1080P HD video) | |
Battery2 | Lithium-ion polymer battery, pluggable, Hot Swap |
Capacity: 7.4V/6300mAh | |
Endurance: 5hrs(default 50% volumn, default200nit, play 1080P HD video) | |
Operating Environment | |
IP grade | IP65 waterproof |
Drop Height | 1.22cm composite wood floors, in operation status |
Operate Temperature | -20 °C to 60 °C |
Store Temperature | -30 °C to 70 °C |
Humidity | Humidity: 95% Non-Condensing |
Packing Details | |
Net weight | 1500g |
Gross weight | |
Product Dimension | 331.5*230.3*22 mm |
Packing size | |
Other | |
Warranty | 1 year warranty |
Certificate | CE, FCC, RoHS |
Color | Black(Front and Rear Panel: Black, Decorate Board:Black) |
Module extension (Note: The following modules are one of five) | |
RJ45 board | 1*(10/100M) Ethernet interface |
DB9 board | Optional:1*(RS232)9-line full function |
USB2.0 | Optional:1*USB2.0 Big USB |
One-dimension barcode | Optional: MOTO SE655E100R/Optical resolution: 5mil/scan speed:50 times/s serial port |
Two-dimension barcode | Optional: Honeywell N3680 hardcode/ Optical resolution:5mil/ scan speed:50 times /s, PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse Maxicode,QR Code, MicroQR, QR Inverse,Aztec,Aztec Inverses,Han Xin, Han Xin Inverse |
