16G RAM 9 To 36V Fanless Mini Computer I7 7500U Industrial Box Pc

16G RAM 9 To 36V Fanless Mini Computer I7 7500U Industrial Box Pc

36V Fanless Mini Computer

16G RAM Fanless Mini Computer

I7 7500U Industrial Box Pc

Place of Origin:

Shenzhen, China

Brand Name:

Sihovision

Certification:

CE, FCC, RoHS

Model Number:

SM701-NEW

Contact Us
Request A Quote
Product Details
Name:
Industrial Box Pc
Type:
Industrial Computer
CPU:
I7-7500U
Graphics:
Integrated Card
Storage:
Support 1*MSATA, 1*2.5" SSD
RAM:
Support 1*DDR4
Wifi:
Yes (Optional)
Temp:
0 To 50°C
Material:
Aluminum Alloy
Color:
Silver/blue
Operating System:
Window 7/ 8 /10, Linux Ubuntu
Weight:
3.6 Kgs
Dimension:
215*185*115 Mm
Warranty:
12 Months
Payment & Shipping Terms
Minimum Order Quantity
1 Piece
Price
negotiable
Payment Terms
T/T , Paypl , L/C , D/A , D/P , Western Union , MoneyGram
Product Description

Fanless Design I7 7500U 16G RAM 9 To 36V Mini Computer Dual Lan Industrial Box Pc



Key Features:

Stable performance, lower power consumption.
Intel Core i3 6100T (dual core 4 threads,3.2 GHz)·
lntel Core i5 6500T (quad core 4 threads,2.5 GHz,Max turbo 3.1 GHz).
Intel Core i7 6700T (quad core eight threads,2.8 GHz,Max turbo 3.6 GHz).

Efficient heat dissipation
High quality aluminum case
Quickly heat dissipation.Fanless design for dustproof,shockproof and no noise.

Main function
Auto power on when there is electricity, Timing boot, Wake on LAN, PXE boot, Watchdog (o~255 level)

Full HD Dual Display
Support synchronous and asynchronous dual display

Various applications
Small PC with high-end configuration.


Specification
Model: SM701-NEW
PC
CPU Intel Celeron 3865U, dual core, 1.8GHz.
Intel Core i5-7200U, dual core, 2.5GHz, Max 3.1GHz.
Intel Core i7-7500U, dual core, 2.7GHz, Max 3.5GHz.
CPU architecture KabyLake-U
Memory Support 1*DDR4 1866/2133MHz,max 16GB
BIOS 64Mb SPI FLASH
Storage Support 1*MSATA, 1*2.5'' SSD/HDD
Display Chip Integrated Intel HD Graphics 610/620
Display interface 1* VGA, 1*HDMI Built-in pin, 1*LVDS plug pin(support synchronous asynchronous dual display)
Network 2*Intel i211-AT 10/100M/1000M Lan
Front I/O 2*USB3.0/USB2.0/LED Light, 1*Power Switch
Rear I/O 2*usb3.0, 2*Intel 1000M Lan, 1*VGA, 1*3P Phoenix terminal, 1*RST reboot power button, 4*COM(Max Support 6*COM optional, COM1 Support RS232/442/485 mode optional)
Expansion card slot 1*Mini-PCIE 4X+1*PCI 8X 32bit, built-in USB2.0
2*PCI(32bit), built-in USB2.0
1*PCIE 4X +1*PCIE 1X, built-in USB2.0
Expansion interface 1*MINI PCIE(WIFI/3G/4G Optional), SIM Card slot
1*MINI PCIE(Support MSATA)
Optional: GPIO, PS/2, Audio, HDMI
Operation System Support Windows 7/8/10, Linux, Ubuntu, Debian etc.
Power Supply
External Power Supply AC 100 - 240V
Working voltage DC 9-36V, Support reverse polarity protection
Power consumption <40W
Enclosure
Material Aluminum Alloy
Color Blue or Grey, color can be customized for bulk orders.
Operating Environment
Temperature Range Operating: 0 to 50°C, storage: -10 to 60°C
Relative humidity 10%~95% , non-condensing
Packing Details
Net weight 3.6kgs
Gross weight TBD
Product Dimension 21.5*18.5*11.5cm
Packing size TBD
Accessories Power adapter, power plug, vesa bracket, user manual, warranty card, CD Card
Other
Mounting way Wall mounting brackets (optional)
Warranty 1 year warranty



Pictures

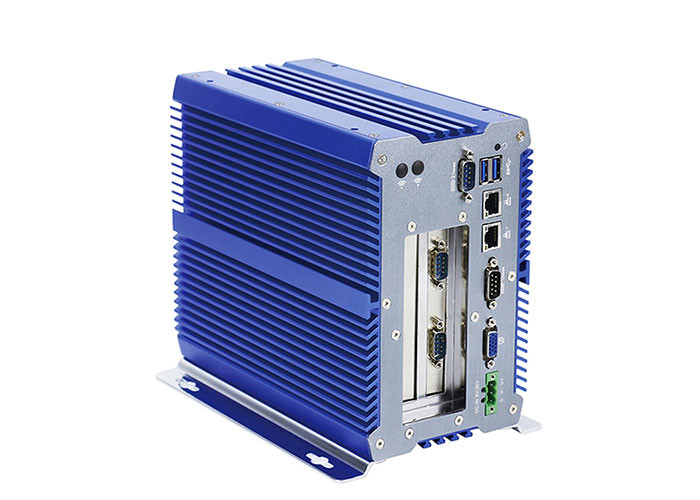

16G RAM 9 To 36V Fanless Mini Computer I7 7500U Industrial Box Pc 0
