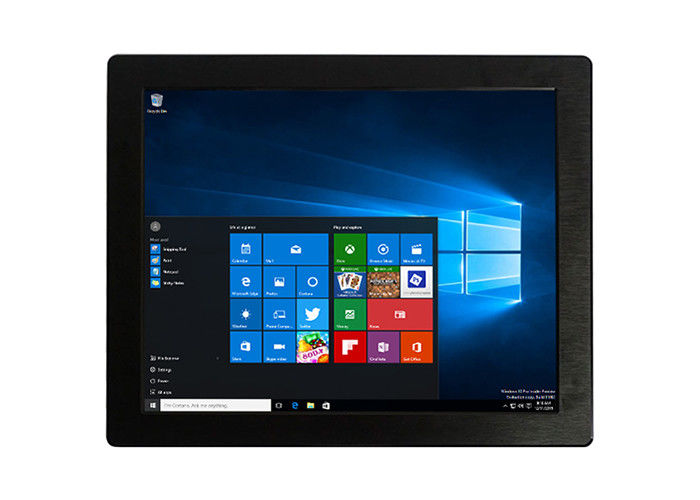

45W Ip65 1000nits Industrial Lcd Pc Rs485 RS232 19" Touch Screen 1280x1024
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product | Waterproof All-In-One PC | CPU | Intel Celeron J1900, Quad Core |
|---|---|---|---|
| Brightness | 350cd/m2 | Touch | Resistive Touch 5 Wire |
| Resolution | 1280*1024 | Aspect Ratio | 4:3 |
| View Angle | 85°/85°/80°/80° (R/L/U/D) | Surface Treatment | Full IP65 |
| Power Supply | DC 9V-24V | VESA Mounting | 75x75mm/100x100mm |
| High Light | 45W Industrial Lcd Pc,1000nits Industrial Lcd Pc,1280x1024 Touch Screen Panel PC |
||
Product Description
Windows 10 Pro All In One PC 19" Touch Screen 1000nits Ip65 Lcd Industrial Pc Rs485 Rs232 Industrial Panel Pc
Feature
1. Made of sturdy and durable aluminum Alloy.
2. Industrial LCD panel, true color.
3. Fully sealed and fanless design, full IP65 waterproof.
4. Adopt 5 wire resistive touch screen, anti-interference.
5. High performance motherboard, 7x24 hour continuous operation.
6. Sealed I/O with cable set included.
Specification
| Model:SC19W | |
| PC | |
| CPU | Intel® Celeron J1900, quad core, 2.0GHz, fanless |
| Chipset | Intel ValleyView SSA-CUnit |
| Memory | 4G DDR3 (2G, 8G optional) |
| Hard Drive Capacity | 64G SSD |
| Hard Drive Optional | SSD: 32G, 128GB, 256GB |
| HDD: 500GB, 1TB | |
| Graphics | CPU Integrated graphics HD Graphics and support 1080p HD photo quality |
| Audio | Realtek ALC662, High Definition Audio (HD), Line in, Line out |
| Network | 1xRealtek RTL 8111E Gigabit Ethernet controller |
| Wireless Network | WIFI |
| I/O Interface | 2xUSB 2.0, 3xCOM RS232, 2xRJ45 |
| 1xVGA/HDMI/POWER DC | |
| Operation System | Support Windows 7/8/10, Linux, Ubuntu, Debian, etc. |
| LCD panel | |
| Panel size | 19" |
| Resolution | 1280*1024 |
| Aspect ratio | 4:3 |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 300 (1000 nits, sunlight readable optional) |
| Response time | 5ms |
| Contrast ratio | 1000:1 |
| View angle | 80°/80°/80°/80° (R/L/U/D) |
| Touch panel | |
| Touchscreen Type | 5 wire resistive touch |
| Touch Interface | USB (RS232 optional) |
| Touch response time | <8ms |
| Luminousness | 90% |
| Surface Hardness | 3H |
| Working Life | >35 million times |
| Touch options | (capacitive touch optional) |
| Power Supply | |
| External Power Supply | AC 100-240V |
| Working voltage | DC 9V-24V wide voltage |
| Power consumption | ≤45W |
Our Services
1. We offer a life-long maintenance that is free in the first year.
2. In the first year after you received the products , if there is quality problem happening to the products,
pls send us the pictures or video to showing the fault phenomenon, so can help our technicians to analyze the cause of problem, then we will send you the necessary spare parts and teach you how to repair it, free of charge.
3. If we can't find out the cause of failure, you can return the defective product to us, we will repair it and resend it to you in one week. If the defective product can't be repaired, we will send you a new one for replacement, free of charge.
