1280x1024 300nits Industrial PCAP Touch Screen 17in

1280x1024 300nits Industrial PCAP Touch Screen 17in
1280x1024 300nits Industrial PCAP Touch Screen 17in 1280x1024 300nits Industrial PCAP Touch Screen 17in 1280x1024 300nits Industrial PCAP Touch Screen 17in 1280x1024 300nits Industrial PCAP Touch Screen 17in

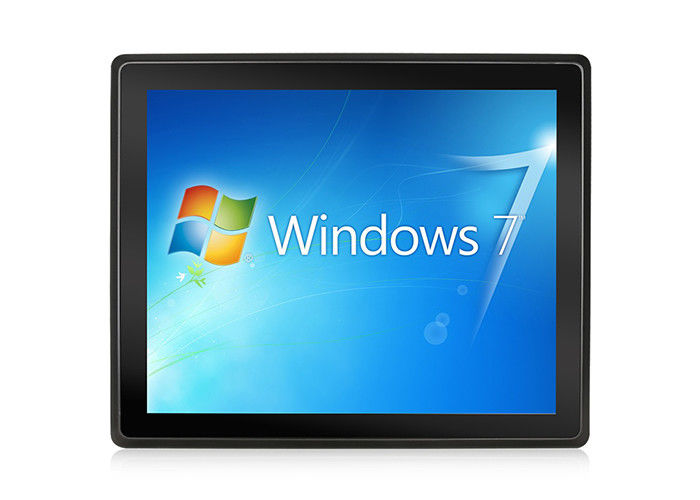

Large Image :  1280x1024 300nits Industrial PCAP Touch Screen 17in

Product Details:
Place of Origin: China(Mainland)
Brand Name: Sihovision
Certification: CE, FCC, RoHS
Model Number: SL17
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: 53*47*18cm/ 6kgs/ 1pc
Delivery Time: 5-10 working days for sample, 15-25 working days for bulk
Payment Terms: T/T, Western Union, MoneyGram, Paypal
Supply Ability: 50000 pcs/month
Detailed Product Description
Product Name: Embedded Industrial Monitor Color: Balck
Material: Aluminum Alloy Resolution: 1280*1024
View Angle: 80°/80°/80°/80° (R/L/U/D) Signal Ports: VGA/ DVI/ HDMI
Brightness: 300 Cd/m2 IP Grade: Front Panel IP65 Waterproof
Working Voltage: AC 100 - 240V , 50-60Hz
High Light:

300nits Industrial PCAP Touch Screen

,

1280x1024 Industrial PCAP Touch Screen

,

17in HDMI Lcd Displays

Feature



1. Fully enclosed design, the whole monitor is dustproof.
2. Seamless design flat bezel, front panel IP65 waterproof.
3. Aluminum alloy shell, good mechanical properties, excellent heat dissipation.
4. Adopt multi-points PCAP touch panel, high sensitive and fast-response. Covered with 2mm tempered glass for vandalproof.
5. High performance mainboard, 7x24 continuous operation.
6. VGA+HDMI+DVI interfaces, USB for touch.
7. 12-24V wide voltage support.
8. EMI/ EMC standard Anti-electromagnetic interference.
9. Shock proof standard: GB2423. anti-static: 4KV-8KV. Anti surge.
10. With waterproof rubber seal on the back side.
11. Support wall mounting, desk stand, embedded mounting.


Specification

Brand Sihovision
Model SL17
LCD panel
Panel size 17"
Resolution 1280*1024
Aspect ratio 4:3
Support Color 16.7M colors
Brightness (cd/m²) 300+
Contrast ratio 1000:1
View angle 80°/80°/80°/80° (R/L/U/D)
Touch panel
Touchscreen Type Project Capacitive Touch (10 points )
Surface Hardness 7H
Luminousness 90%
Touch Interface USB (RS232 optional)
Touch response time 2ms
Working Life >50 million times
Touch options (5 wires restive touch optional)
Signal Ports
VGA 1x VGA
DVI 1x DVI
HDMI 1x HDMI
Audio in/out Optional
OSD
OSD control Brightness, contrast ratio, auto adjustment, H/V position, language select, etc.
Support languages English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese, etc.
Support OS Windows XP, Windows /7/8/10, Linux, Mac OS X, Android, etc.
Power Supply
External Power Supply AC 100-240V, 50-60Hz
Working voltage DC 12V
Power consumption ≤23.8W
Enclosure
Material Aluminum Alloy
Color Black, Silver
VESA mounting 75x75mm/100x100mm
IP grade Front panel IP65 waterproof
Operating Environment
Temperature Range Operating: -10 to 60°C, Storage: -20 to 70°C
Relative humidity Operating: 10% to 80%, Storage: 5% to 90%
Packing Details
Net weight 4.5kg
Gross weight 6kg
Product Dimension 39.92*33.16*6.45cm
Packing size 53*47*18cm
Accessories Power adapter, VGA cable, USB touch cable, embedded screws, user manual, warranty card
Other
Mounting Embedded mounting screws
Wall mounting brackets (optional)
Desk stand holder (optional)
Warranty 1 year warranty
Certificates CE, FCC, RoHS

1280x1024 300nits Industrial PCAP Touch Screen 17in 01280x1024 300nits Industrial PCAP Touch Screen 17in 11280x1024 300nits Industrial PCAP Touch Screen 17in 21280x1024 300nits Industrial PCAP Touch Screen 17in 3
About us

Shenzhen Shinho Electronic Technology Co., Ltd is a leading provider of visual and interactive application solutions. Our main products include lcd touchscreen monitor , open frame lcd monitor , waterproof high brightness monitor , industrial panel PC , embedded touch panel PC, full IP65 panel PC , industrial tablet PC, self service KIOSK, advertising display etc. We provide our products and services on a worldwide basis, our products are widely used in Automation, SCADA , KIOSK , ATM, POS , Transportation, Medical, Gaming , Oil Gas & Energy , Military etc.

1280x1024 300nits Industrial PCAP Touch Screen 17in 4

1280x1024 300nits Industrial PCAP Touch Screen 17in 5

Application

Shopping Mall, Super Market, Smart home, Metro station, Compang, Hospital, Airport, Restaurant, Automobile 4S stores, Automatic pay station machine, Packaging testing equipment, Parking lot self-service payment machine.
