Full HD 1920X1080 Open Frame LCD Monitor 21.5 Inch Capacitive Touch Panel

China Shenzhen Shinho Electronic Technology Co., Limited certification
China Shenzhen Shinho Electronic Technology Co., Limited certification
Hello Amy, yesterday they have finally released the panel PCs from the customs, and today they arrived at our office. They are great! I think that they will be perfect for the project! Thank you very much for the great work!

—— Vladimir

We have used a majority of the units and everything is going perfect until now. Could you please quote price and delivery for an additional 300 pcs 12 inch PC in the same Configuration as the last order?

—— Don

——

I'm Online Chat Now

Full HD 1920X1080 Open Frame LCD Monitor 21.5 Inch Capacitive Touch Panel

Full HD 1920X1080 Open Frame LCD Monitor 21.5 Inch Capacitive Touch Panel
Full HD 1920X1080 Open Frame LCD Monitor 21.5 Inch Capacitive Touch Panel Full HD 1920X1080 Open Frame LCD Monitor 21.5 Inch Capacitive Touch Panel Full HD 1920X1080 Open Frame LCD Monitor 21.5 Inch Capacitive Touch Panel Full HD 1920X1080 Open Frame LCD Monitor 21.5 Inch Capacitive Touch Panel

Large Image :  Full HD 1920X1080 Open Frame LCD Monitor 21.5 Inch Capacitive Touch Panel

Product Details:

Place of Origin: Shenzhen, China
Brand Name: Shinho
Certification: CE, FCC, RoHS
Model Number: SL22

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: Negotiation
Packaging Details: 1 piece/carton Gross Weight: 12.5kg Carton size: 65×47×20cm
Delivery Time: Shipped in 5 days after payment
Payment Terms: T/T, Paypal, L/C, D/A, D/P, Western Union, MoneyGram,
Supply Ability: 5000 Piece/Pieces per Month
Detailed Product Description
Product Name: Open Frame LCD Monitor Panel Size: 21.5"
Resolution: 1920*1080 Aspect Ratio: 16:9
Touchscreen Type: Project Capacitive Touch (10 Points ) Luminance: 1000nits, Sunlight Readable
View Angle: 80°/80°/80°/80° (L/R/U/D) Signal Ports: HDMI, VGA, DVI
High Light:

open frame touch screen monitor

,

industrial open frame monitor

Full HD 1920*1080 Open Frame LCD Monitor 21.5" Capacitive Touchscreen





Quick details



1. Industrial 21.5" LCD Panel



2. Full HD 1920*1080 resolution


3. 1000nits luminance ,sunlight readable


4. IP65 rated for front panel


5. Capacitive touch, 10 points



6. HDMI VGA DVI







Multiple Options



1. 5 wires restive touch, IR touch optional



2. Black, White, Silver available



3. Support wall mounting, embedded mounting, desk stand mouting etc.



4. Touch interface RS232 optional





Applications


Gas station



Building control system



Customer Feedback Kiosk



Vehicle



laser cutting machine



Industrial automation



Hotel Service Kiosks





Specification





                                                                        Model:SL22
LCD panel
Panel size 21.5"
Resolution 1920*1080
Aspect ratio 16:9
Support Color 16.7M colors
Brightness (cd/m²) 1000nits,sunlight readable
Contrast ratio 1000:1
View angle 80°/80°/80°/80° (R/L/U/D)
Touch panel
Touchscreen Type Project Capacitive Touch (10 points )
Surface Hardness 3H
Luminousness 90%
Touch Interface USB   (RS232 optional)
Touch response time 2ms
Working Life  >50 million times
Touch options (5 wires restive touch,  IR touch optional)
Signal Ports
VGA 1×VGA
DVI 1×DVI
HDMI 1×HDMI
Audio in/out optional
OSD
OSD control Brightness, contrast ratio, auto adjustment, H/V position,  language select etc.
Support languages English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese etc.
Support OS Windows XP , Windows /7/8/10 ,  Linux,  Mac OS X,  Android   ect.
Power Supply
External Power Supply AC 100 - 240V , 50-60Hz
Working voltage DC 12V
Power consumption ≤45W
Enclosure
Material High strength cold rolled steel case
Color Black, white, Silver , color can be customized
VESA mounting 100×100mm
IP grade Front panel IP65 waterproof
Operating Environment
Temperature Range operating: -10 to 60°C,  storage :-20 to 80°C
Relative humidity operating: 10% to 80% ,  storage :5% to 90%
Packing Details
Net weight 9kg
Gross weight 12.5kg
Product Dimension 56.81×35.96×3.89cm
Packing size 65×47×20cm

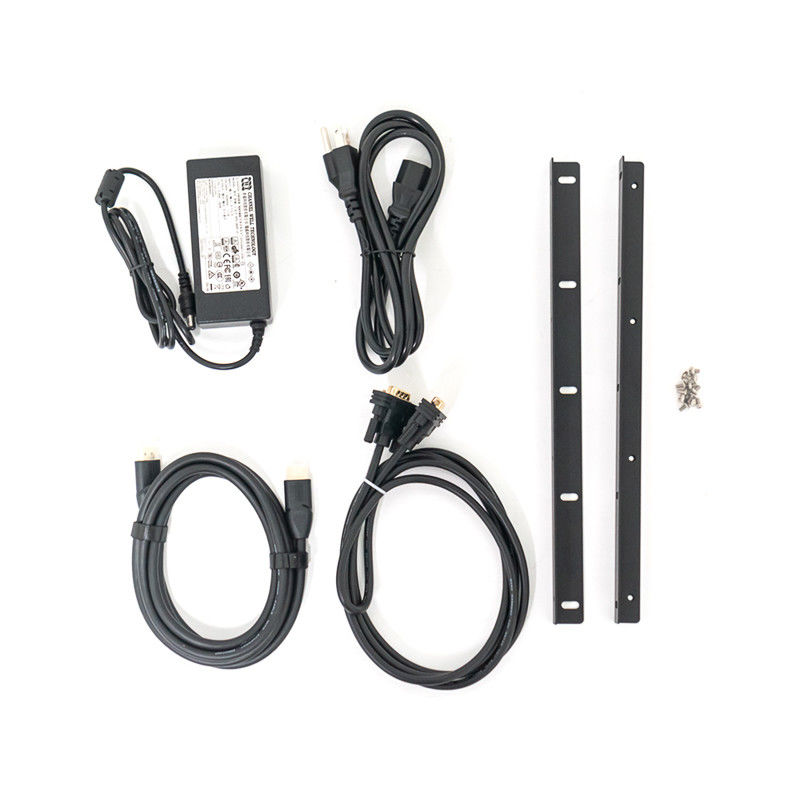

Accessories Power adapter, USB touch cable,HDMI cable, open frame kits
Other
Mounting open frame
wall mounting brackets  (optional)
desk stand holder (optional)
Warranty 1 year warranty
Certificates CE, FCC, RoHS



More Pictures

Full HD 1920X1080 Open Frame LCD Monitor 21.5 Inch Capacitive Touch Panel 0

Full HD 1920X1080 Open Frame LCD Monitor 21.5 Inch Capacitive Touch Panel 1
