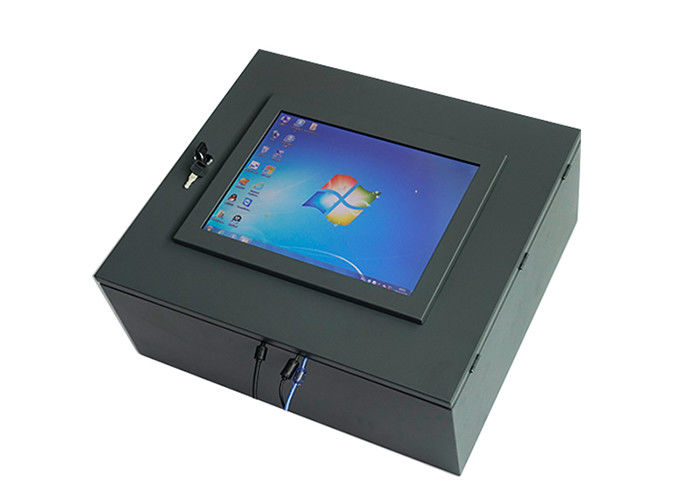

Embedded Open Frame Capacitive Touch Screen Customized With A Cabinet

Embedded Open Frame Capacitive Touch Screen Customized With A Cabinet
Embedded Open Frame Capacitive Touch Screen Customized With A Cabinet Embedded Open Frame Capacitive Touch Screen Customized With A Cabinet Embedded Open Frame Capacitive Touch Screen Customized With A Cabinet Embedded Open Frame Capacitive Touch Screen Customized With A Cabinet

Large Image :  Embedded Open Frame Capacitive Touch Screen Customized With A Cabinet

Product Details:

Place of Origin: Shenzhen, China
Brand Name: Shinho
Certification: CE, FCC, RoHS
Model Number: SL15

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: Negotiation
Packaging Details: 1 piece/gift box weight :10 kg gift box size:75*48*42cm
Delivery Time: Shipped in 7 working days after payment received
Payment Terms: T/T,Paypal,L/C, D/A, D/P, Western Union, MoneyGram,
Supply Ability: 5000 Piece/Pieces per Month
Detailed Product Description
Panel Size: 15'' Resolution: 1024*768
Touchscreen Type: 10 Points PCAP Touch Working Voltage: DC 12V
Inputs: VGA , DVI,HDMI Design: Open Frame Design
Touch: USB For Touch Cabinet: With Locker, Removable Plate
High Light:

open frame touch screen monitor

,

open frame led monitor

Embedded 15 Inch Capacitive Touch Open Frame LCD Monitor with Cabinet




Features



1. Panel size: 15 inch , 1024*768 .



2. Robust and durable full metal case, shockproof, excellent heat dissipation.


3. 10 point pcap touchscreen.high sensitive and fast-response.


4. High performance mainboard, 7x24 continuous operation.


5. VGA+DVI+HDMI,full interface,you can choose what signal input you need.



6. Customized with a cabinet, the monitor embedded in the cabinet through embedded screws.

Easy installation.









 Applications



CNC machine



Factory automation



game cabinet



Factory control system



sports lotteries



Customer Feedback Kiosk



Express delivery locker



CCD machine









Customization Service



1. Resistive touch,infrared touch



2. 1000 nits for semi-outdoor/outdoor use.



3. Front panel IP65 waterproof



4. Full IP65 waterproof monitor.



5. anti vibration



6. Auto dimming.



7. 24V power with Phoenix terminal.



8. 12-24V wide voltage.



9.  AV/ BNC /RS232 for touch



10.Show your logo when turn on the monitor or print the logo on the bezel of monitor.







Specification





Model:SL15
LCD panel
Panel size 15"
Resolution 1024*768
Aspect ratio 4:3
Support Color 16.7M colors
Brightness (cd/m²) 400+
Contrast ratio 1000:1
View angle 80°/80°/80°/80° (R/L/U/D)
Touch panel
Touchscreen Type Project Capacitive Touch (10 points )
Surface Hardness 7H
Luminousness 90%
Touch Interface USB (RS232 optional)
Touch response time 2ms
Working Life >50 million times
Touch options (4 or 5 wires restive touch, IR touch optional)
Signal Ports
VGA 1×VGA
DVI 1×DVI
HDMI 1×HDMI
Audio in/out optional
OSD
OSD control Brightness, contrast ratio, auto adjustment, H/V position, language select etc.
Support languages English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese etc.
Support OS Windows XP , Windows /7/8/10 , Linux, Mac OS X, Android ect.
Power Supply
External Power Supply AC 100 - 240V , 50-60Hz
Working voltage DC 12V
Power consumption ≤35W
Enclosure
Material High strength cold rolled steel
Color Black, white, Silver , color can be customized
VESA mounting 75×75mm/100×100mm
Operating Environment
Temperature Range operating: -10 to 60°C, storage :-20 to 80°C
Relative humidity operating: 10% to 80% , storage :5% to 90%
Packing Details
Net weight 4.5kg
Gross weight 5kg
Product Dimension 38.63×31.1×5.5cm
Packing size 46*44*18cm
Accessories Power adapter, VGA cable, USB touch cable,embedded screws,user manual,
warranty card
Cabinet
Material High strength cold rolled steel
Net weight 8.5kg
Gross weight 10kg
Product Dimension 50.8×45.72×20.32cm
Packing size 75*48*42cm
Accessories locker, removable plate
Other
Mounting open frame
embedded mounting screws
wall mounting brackets (optional)
desk stand holder (optional)
Warranty 1 year warranty








Embedded Open Frame Capacitive Touch Screen Customized With A Cabinet 0





Drawing



Embedded Open Frame Capacitive Touch Screen Customized With A Cabinet 1

Embedded Open Frame Capacitive Touch Screen Customized With A Cabinet 2
