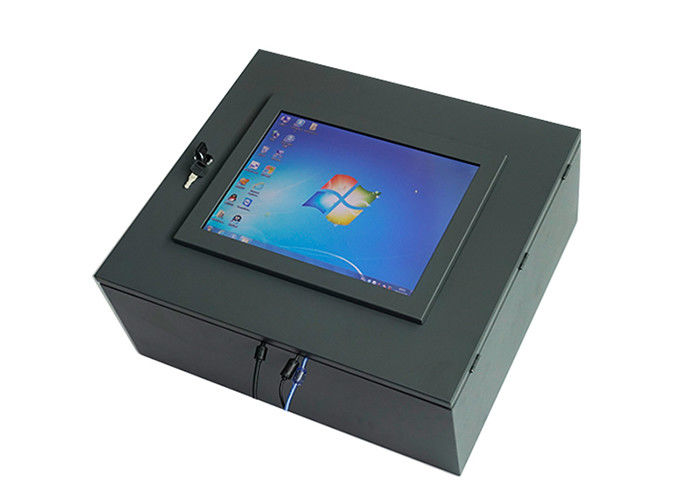

15 Inch Embedded Mounting Open Frame Pcap Touchscreen Monitor With Cabinet
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Resolution | 1920 X 1080 | Interface Type | DVI,HDMI,VGA |
|---|---|---|---|
| Screen Size | 15" | Brightness | 350cd/m |
| Type | Capacitive | Application | Store/market/bank/school/ktv |
| Panel Type | TFT | Color | Black |
| Backlight | LED 50000 Hours | Warranty | 12 Month |
| Touch Points | 10 Points | Interface | VGA,DVI,option HDMI |
| High Light | open frame led monitor,industrial open frame monitor |
||
Product Description
Features
1. Robust and durable full metal case, shockproof, excellent heat dissipation
2. Industrial LCD panel, wide viewing angle, high nits, true color.
3. Adopt multi-points PCAP touch panel , high sensitive and fast-response.
4. High performance mainboard, 7x24 continuous operation.
5. Support wall mounting,embedded mounting,desk stand mouting etc.
Specification
| Model:SL15 | |
| LCD panel | |
| Panel size | 15" |
| Resolution | 1024*768 |
| Aspect ratio | 4:3 |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 400+ |
| Contrast ratio | 1000:1 |
| View angle | 80°/80°/80°/80° (R/L/U/D) |
| Touch panel | |
| Touchscreen Type | Project Capacitive Touch (10 points ) |
| Surface Hardness | 7H |
| Luminousness | 90% |
| Touch Interface | USB (RS232 optional) |
| Touch response time | 2ms |
| Working Life | >50 million times |
| Touch options | (4 or 5 wires restive touch, IR touch optional) |
| Signal Ports | |
| VGA | 1×VGA |
| DVI | 1×DVI |
| HDMI | 1×HDMI |
| Audio in/out | optional |
| OSD | |
| OSD control | Brightness, contrast ratio, auto adjustment, H/V position, language select etc. |
| Support languages | English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese etc. |
| Support OS | Windows XP , Windows /7/8/10 , Linux, Mac OS X, Android ect. |
| Power Supply | |
| External Power Supply | AC 100 - 240V , 50-60Hz |
| Working voltage | DC 12V |
| Power consumption | ≤35W |
| Enclosure | |
| Material | High strength cold rolled steel |
| Color | Black, white, Silver , color can be customized |
| VESA mounting | 75×75mm/100×100mm |
| Operating Environment | |
| Temperature Range | operating: -10 to 60°C, storage :-20 to 80°C |
| Relative humidity | operating: 10% to 80% , storage :5% to 90% |
| Packing Details | |
| Net weight | 4.5kg |
| Gross weight | 5kg |
| Product Dimension | 38.63×31.1×5.5cm |
| Packing size | 46*44*18cm |
| Accessories | Power adapter, VGA cable, USB touch cable,embedded screws,user manual, warranty card |
| Cabinet | |
| Material | High strength cold rolled steel |
| Net weight | 8.5kg |
| Gross weight | 10kg |
| Product Dimension | 50.8×45.72×20.32cm |
| Packing size | 75*48*42cm |
| Accessories | locker, removable plate |
| Other | |
| Mounting | open frame |
| embedded mounting screws | |
| wall mounting brackets (optional) | |
| desk stand holder (optional) | |
| Warranty | 1 year warranty |
Application
Shopping Mall
Super Market
Smart home
Metro station
Compang
Hospital
Airport
Restaurant
Automobile 4S stores
Automatic pay station machine
Packaging testing equipment
Parking lot self-service payment machine
