Place of Origin:
CHINA
Brand Name:
SHINHO
Certification:
CE, FCC, RoHS
Model Number:
SC15A

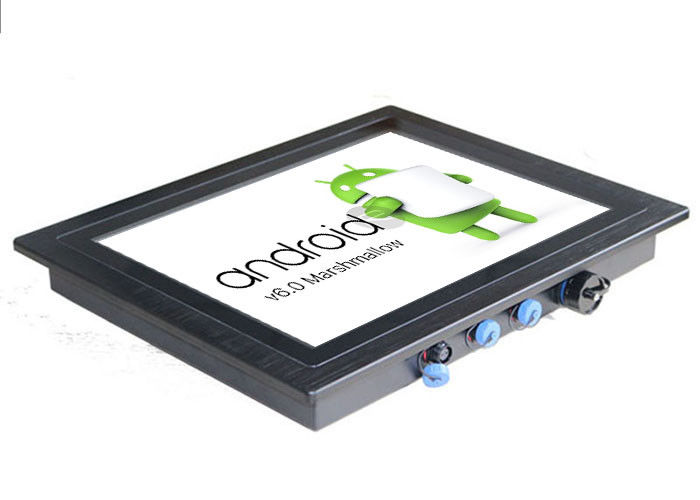

IP65 Industrial Android Tablet PC 15 Inch With 6.0 OS And 8-36V
The Android Tablet provides high resolution TFT LCD display with anti-scratch Gorilla™ glass. Moreover, this projected capacitive multi-touch panel offers outstanding viewing and operating experience. The front panel is IP65 rated for ingress protection, making it fully resistant to dust and water. It is an extreme operating temperature range at -10°C ~55°C.
Features:
1. 15 Inch WXGA (1024 x768 ) TFT LCD Display with LED backlight.
2. Processor is ARM® RK3288 Cortex-A17 quad core,1.8GHz, support Android™ v 6.0.
3. LP DDR2 2GB, 16GB eMMC on board storage.
4. Touchsreen is 10 points Projected Capacitive.
5. Full case is IP65 dustproof and waterproof.
Specification
| Model:SC15A | |
| PC | |
| CPU | RK3288 Cortex-A17 quad core,1.8GHz |
| Memory | 2G , ( Max. 4G) |
| Storage | eMMC 16G |
| Decoding Resolution | Support maximum 2048*1536 |
| Operation System | Android 6.0 |
| Play Modes | Support timing, loop and spots etc. play modes |
| Network Support | RJ45, WIFI, 3G, 4G , TD-LTE (optional) |
| Image Format | JPG/BMP/GIF/TIFF/PNG |
| Video Format | RMVB,FLV,MPEG1/2/4, AVI, WMV, MOV, MP4, TS etc. |
| Audio Format | MP3,WMA,AAC,etc. |
| RTC Real Time Clock | YES |
| I/O Interfaces | |
| USB | 1×USB |
| COM | Optional |
| LAN | 1×RJ45, 10M/100M adaptive ethernet |
| HDMI | 1×HDMI , support 1080p |
| DC | 1×DC |
| LCD panel | |
| Panel size | 15" |
| Resolution | 1024*768 |
| Aspect ratio | 4:3 |
| Support Color | 16.7M colors |
| Brightness | 400 cd/m² |
| Response time | 5ms |
| Contrast ratio | 500:1 |
| View angle | 80°/80°/80°/80° (R/L/U/D) |
| Touch panel | |
| Touchscreen Type | 10 point capacitive touch |
| Touch response time | <2ms |
| Luminousness | 90% |
| Surface Hardness | 7H |
| Working Life | >50 million times |
| Power Supply | |
| External Power Supply | AC 100 - 240V |
| Working voltage | DC 12V (working voltage 8-36V) |
| Power consumption | ≤45W |
| Enclosure | |
| Material | Aluminum alloy + High strength cold rolled steel |
| Color | Black, white, Silver , color can be customized |
| VESA mounting | 75×75mm/100×100mm |
| IP grade | IP65 |
| Operating Environment | |
| Working temperature | -10°C to 55°C |
| Relative humidity | <85% |
| Vibration resistance | 5-19Hz/1.0mm amplitude , 19-200Hz/1.0g acceleration |
| Impact resistance | 10g acceleration , 11ms period |
| Packing Details | |
| Net weight | 5 kg |
| Gross weight | 6 kg |
| Product Dimension | 38.39×30.84×4.15 cm |
| Packing size | 47×44×18 cm |
| Accessories | Power adapter,embedded screws,warranty card, user manual |
| Other | |
| Mounting (options) | 1) provide wall brackets for wall-mounting, VESA 100×100mm |
| 2) provide stable metal holder to support the monitor | |
| Customization | 3G,4G,Webcam, RFID reader etc. optioanal |
| Warranty | 3 years warranty |
Attention of warranty
1. First year warranty: by free
2. 2nd to 3rd year warranty: maintaining by some charges.
Waterproof I/O ports
Drawing
