Place of Origin:
Shenzhen , China
Brand Name:
Sihovision
Certification:
CE, FCC, RoHS
Model Number:
SM09

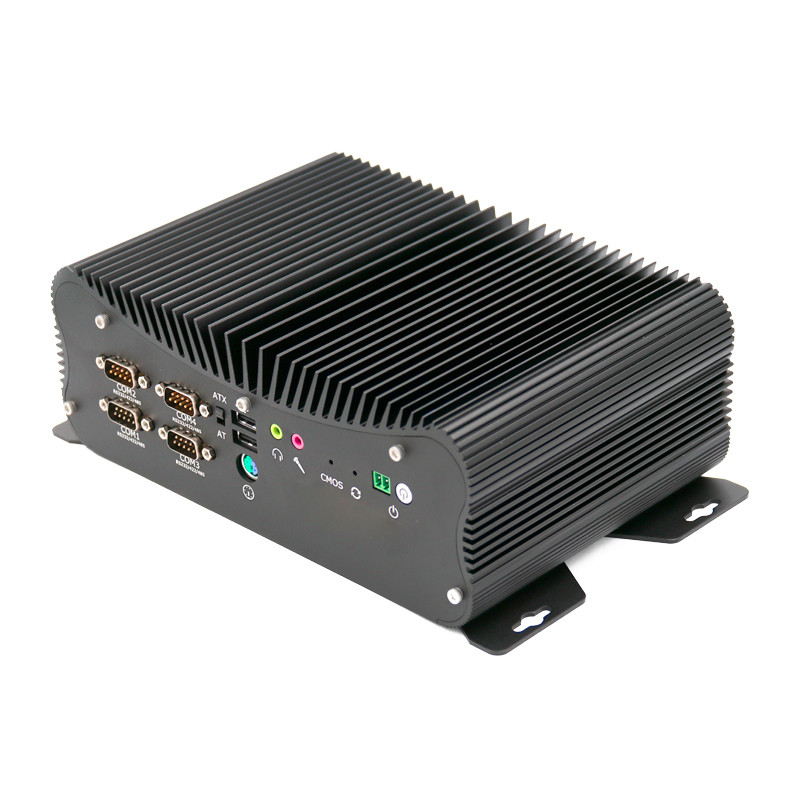

Fanless Indusstrial Mini Computer Dual Core 16G DDR4 256G SSD
Highly reliable, fanless, noise-free, energy efficient, industrial mini PC designed for a large variety of demanding applications. Designed without cooling fans the rugged extruded aluminum chassis acts as a heat sink to dissipate internal heat and provide quiet noise free operation. A breakthrough in micro computing thanks to the rugged design, compact dimensions, and high functionality.
Shinho Fanless Rugged Mini PCs series are designed for unique, industrial applications that require compact size, durability, high reliability, and universal performance.
Features
1. Full Aluminum alloy enclosure, compact, low weight design, excellent heat dissipation.
2. Sealed construction with fanless design, noiseless, low-power consumption design.
3. Suitable for harsh operating environment , dustproof,anti-corrosion, anti-shock .
4. High performance motherboard, 7x24 continuous operation.
5. Wide operating temperature support (-20°C~70°C).
6. With high electromagnetic compatibility and anti-interference capacity.
7. Expanded displays for Multi-task . Auto boot, remote wakening support.
8. With SIM card slot , easy to access 4G/5G network.
9. 6 RS-232 serial ports (4 of which support RS485/RS442)
10. 2x Intel i210/i211 Gigabit LAN
11. One-key restore, watchdog, diskless boot.
Specification
| Model: SM09 | |
| PC | |
| CPU Optional | Intel® Core i7-1165G7, 4 Cores, 8 Threads, Base 2.8GHz, Turbo 4.7GHz, Fanless |
| Memory | 16GB DDR4 |
| Storage | 256GB SSD |
| Display | 1x HDMI, 1x VGA |
| Network | 2 x GbE RJ45 Intel i211/i210 |
| I/O | 4x USB3.0,2x USB2.0, 6x DB9 COM(4 of them Suports RS485/RS422, 1x HDMI, 1x VGA, 1x PS2(Keyboard and mouse in one), 14x GPIO(7 input, 7 output), 1x Power Button,1x Reset Button,1x Clear CMOS Button, 1x 3pin Power phoenix,Support: 9-36V DC, 1x 3.5mm Jack, 1x Mic in, 1x ATX/AT, 2x Antenna port, for WIFI/3G/4G, 2xLAN(GbE RJ45 Intel i211/i210) |
| Expansion Slot | 1x Mini-PCIe half card, support WIFI Bluetooth 1x Mini-PCIe full card (with SIM card holder), support 3G/4G module, WIFI Bluetooth 1x Expand IO, support LPC, USB, PCIE |
| BIOS | AMI EFI BIOS |
| WDT | Support hardware reset (256 level, 0-255 sec) |
| Operation System | Windows® 7/8/10/11, WES 7/10, LINUX |
| Power Supply | |
| External Power Supply | AC 100 - 240V |
| Working voltage | DC 9-36V |
| Power consumption | ≤20W |
| Enclosure | |
| Material | Aluminum Alloy |
| Color | Black |
| Operating Environment | |
| Temperature Range | Operating: -20 to 70°C, Storage: -30 to 80°C, surface air flow |
| Relative humidity | 10%~95% , non-condensing |
| Packing Details | |
| Net weight | 2.2 kg |
| Gross weight | 3.5 kg |
| Product Dimension | 249 x 150 x 86 mm |
| Packing size | 30*20*12cm |
| Accessories | Power adapter, Driver CD, 2.5-inch hard drive bracket, Screws |
| Other | |
| Mounting (options) | Wall mounting |
| Embedded mount | |
| Warranty | 2 years warranty |
Drawing
Applications
Manufacturing automation
Office working
Agricutural control
Vending machine
Intelligent Transportation
CNC machine
