1000 Nit Brightness Industrial Android Tablet PC 19 Inch Size With RK3188 CPU
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Name | 1000 Nit Industrial Android Tablet PC 19 Inch | CPU | RK3188, ARM® Cortex™-A9 Quad-core 32-bit Up To 1.6GHz |
---|---|---|---|
Panel Size | 19 Inch | Resolution | 1280*1024 |
Brightness (cd/m²) | 1000 Cd/m², Sunlight Readable | IP Grade | Front Panel IP65 |
High Light | industrial tablet pc,rugged android tablet |
1000 Nit Industrial Android Tablet PC 19 Inch With RK3188 CPU
The Android™-based 7.0” Military Rugged Android Tablet provides high resolution TFT LCD display with anti-scratch Gorilla™ glass. Moreover, this projected capacitive multi-touch panel offers outstanding viewing and operating experience. The front panel is IP65 rated for ingress protection, making it fully resistant to dust and water. It is an extreme operating temperature range at -10°C ~55°C. There are customization module such as builted in a G-sensor, light sensor, E-compass and GPS navigation, suitable for a great number of applications can be realized. And its brighness upto 1000 nits, can be used for outdoor.
Features:
1. 19 Inch WXGA (1280*1024) TFT LCD Display with LED backlight.
2. CPU is RK3188 ARM® Cortex™-A9 Quad-core 32-bit up to 1.6GHz.
3. Touch panel is Projected Capacitive Multi-Touch.
4. Brightness is upto 1000 nits.
5. Front panel is IP65 dustproof and waterproof.
6. Support Android™ v4.4.2 OS.
Specification
Model:SC19A | |
PC | |
CPU | RK3188,Cortex-A9 ,quad core,1.6GHz |
Memory | 2G , ( Max. 4G) |
Storage | eMMC 8G , ( Max. 16G) |
Decoding Resolution | Support maximum 2048*1536 |
Operation System | Android 4.4.2 |
Play Modes | Support timing, loop and spots etc. play modes |
Network Support | RJ45, WIFI, 3G, 4G , TD-LTE (optional) |
Image Format | JPG/BMP/GIF/TIFF/PNG |
Video Format | RMVB,FLV,MPEG1/2/4, AVI, WMV, MOV, MP4, TS etc. |
Audio Format | MP3,WMA,AAC,etc. |
RTC Real Time Clock | YES |
I/O Interfaces | |
USB | 2×USB ( up to 5 ) |
COM | 2×COM |
LAN | 1×RJ45, 10M/100M adaptive ethernet |
HDMI | 1×HDMI , support 1080p |
DC | 1×DC |
Card Slot | 1×TF |
LCD panel | |
Panel size | 19" |
Resolution | 1280*1024 |
Aspect ratio | 4:3 |
Support Color | 16.7M colors |
Brightness | 1000 cd/m², sunlight readable |
Response time | 5ms |
Contrast ratio | 1000:1 |
View angle | 80°/80°/80°/80° (R/L/U/D) |
Touch panel | |
Touchscreen Type | 10 points capacitive touch |
Touch response time | <2ms |
Luminousness | 90% |
Surface Hardness | 7H |
Working Life | >50 million times |
Power Supply | |
External Power Supply | AC 100 - 240V |
Working voltage | DC 12V |
Power consumption | ≤45W |
Enclosure | |
Appearance | Flat panel |
Material | Aluminum alloy |
Color | Black, white, Silver , color can be customized |
VESA mounting | 75×75mm/100×100mm |
IP grade | front IP65 |
Operating Environment | |
Working temperature | -10°C to 55°C |
Relative humidity | <85% |
Vibration resistance | 5-19Hz/1.0mm amplitude , 19-200Hz/1.0g acceleration |
Impact resistance | 10g acceleration , 11ms period |
Packing Details | |
Net weight | 6.5 kg |
Gross weight | 7 kg |
Product Dimension | 45×37.9×5.87 cm |
Packing size | 53×47×18 cm |
Accessories | Power adapter,embedded screws,warranty card, user manual |
Other | |
Mounting (options) | 1) provide wall brackets for wall-mounting, VESA 100×100mm |
2) provide stable metal holder to support the monitor | |
Customization | 3G,4G,Webcam, RFID reader etc. optioanal |
Warranty | 3 years warranty |
Attention of warranty
1. First year warranty: by free
2. 2nd to 3rd year warranty: maintaining by some charges.

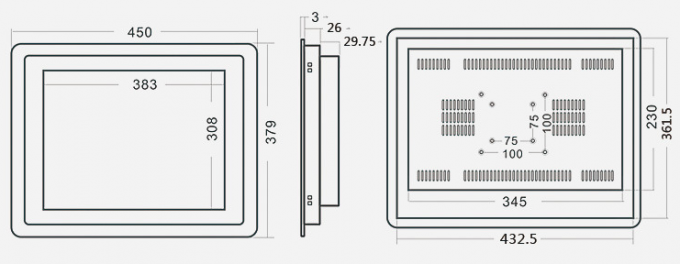

Drawing
