Industrial LCD Panel Embedded Touch PC Wide Viewing Angle For National Defense
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | 15 Inch Embedded Touch Panel PC With Linux OS And J1900 Fanless | CPU | Intel® Celeron J1900 , Quad Core , 2.0GHz, Fanless |
|---|---|---|---|
| Touch Type | 5 Wire Resisitive Touch | Resolution | 1024*768 |
| Brightness (cd/m²) | 400+ | View Angle | 80°/80°/80°/80° (R/L/U/D) |
| Product Dimension | 27.1 X 21.2 X 5.2cm | Material | Aluminum Alloy Bezel+High Strength Cold Rolled Steel Back Case |
| High Light | panel mount computer,embedded industrial pc |
||
Product Description
15 Inch Embedded Touch Panel PC with Linux OS And J1900 Fanless
Features:
1. CPU is J1900, fanless.
2. Front bezel is oxidized and brushed with sand, upto NEMA IP65, very rugged, durable.
3. Appearance is beautiful, very light and portable.
4. Industrial LCD panel, wide viewing angle, high nits, true color.
5. Adopt 5 wire resistive touch screen, high precision, high temperature resistance, strong anti-interference, stable and durable.
6. High performance motherboard, 7x24 continuous operation.
7. 9-24V wide voltage support.
Application:
It is ideal for application such as telecom, electric power, multimedia, national denfense, spaceflight, EMR healthcare terminal, CNC machinery control, PLC and POS controller, numerical control device, retail interactive kiosk, digital signage interface and industrial automation etc.
Advantages
This compact and nimble 8 inch panel mount touchscreen PC is a slim, fanless computer suitable for a wide variety of applications. The industrial panel pc is built with the Bay Trail Celeron J1900 quad-core CPU, which employs a system on chip (SoC) architecture to ensure high reliability in many environments. This unit can be panel mounted or VESA mounted for quick and easy installation in your operations. Additionally, the front bezel of this resistive touchscreen.
Specification
| Model:SC15 | |
| PC | |
| CPU | Intel® Celeron J1900 , quad core , 2.0GHz, fanless |
| Chipset | Intel ValleyView SSA-CUnit |
| Memory | 2G DDR3 (4G optional) |
| Hard Drive Capacity | 32G SSD |
| Hard Drive Optional | SSD: 64G,128GB,256GB |
| HDD: 500GB,1TB | |
| Graphics | CPU Integrated graphics HD Graphics and support 1080p HD photo quality |
| Audio | Realtek ALC662, High Definition Audio (HD), Line in, Line out |
| Network | 1×Realtek RTL 8111E Gigabit Ethernet controller |
| Wireless Network | WIFI |
| I/O Interface | 2×USB 2.0,2×USB 3.0,2 x COM RS232 |
| 1×VGA/HDMI/1×RJ45/Audio OUT/MIC IN/POWER DC | |
| Operation System | Support Windows 7/8/10, Linux, Ubuntu, Debian etc. |
| LCD panel | |
| Panel size | 15" |
| Resolution | 1024*768 |
| Aspect ratio | 4:3 |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 400 nits |
| Response time | 5ms |
| Contrast ratio | 1000:1 |
| View angle | 80°/80°/80°/80° (R/L/U/D) |
| Touch panel | |
| Touchscreen Type | 5 wire resistive touch |
| Touch Interface | USB (RS232 optional) |
| Touch response time | <8ms |
| Luminousness | 90% |
| Surface Hardness | 3H |
| Working Life | >35 million times |
| Touch options | ( capacitive touch, IR touch optional) |
| Power Supply | |
| External Power Supply | AC 100 - 240V |
| Working voltage | 12V (9-24V wide voltage optional) |
| Power consumption | ≤45W |
| Enclosure | |
| Material | Aluminum Alloy bezel+High strength cold rolled steel back case |
| Color | Silver , Black, white, color can be customized |
| Operating Environment | |
| Temperature Range | operating: -10°C to 60°C, storage :-20°C to 70°C |
| Relative humidity | 10%~90% @ 40° C, non-condensing |
| Vibration | 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
| Packing Details | |
| Net weight | 3kg |
| Gross weight | 4kg |
| Product Dimension | 38x30x5.6cm |
| Packing size | 47x45x18cm |
| Accessories | Power adapter,embedded screws,driver CD,touch pen |
| Other | |
| Mounting (options) | embedded mounting screws |
| wall mounting brackets (optional) | |
| desk stand holder (optional) | |
| Warranty | 3 years warranty |
Attention of warranty
1. First year warranty: by free
2. 2nd to 3rd year warranty: maintaining by some charges.

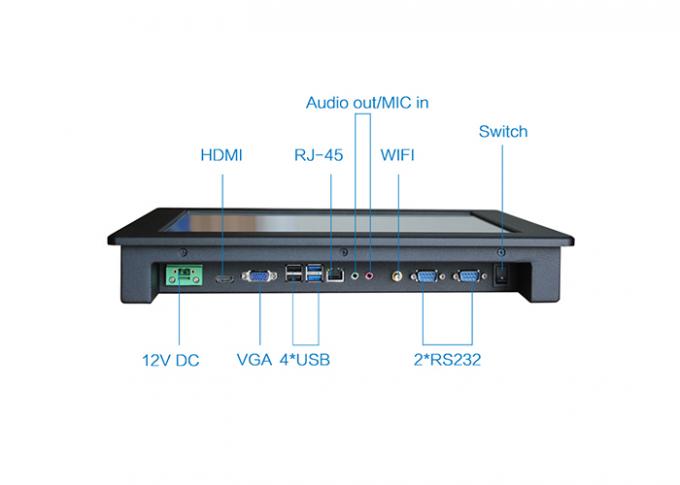

Signal Ports
