Aluminium Alloy Capacitive Embedded Touch Panel PC 15 Inch With 2 LAN 2 RS232 24V DC

Place of Origin Shenzhen , China
Brand Name Shinho
Certification CE , FCC , RoHs
Model Number SC15
Minimum Order Quantity 1 Piece
Price Negotiable
Packaging Details 1PC/Carton Weight: 6KG/PC, Packing size: 47×43.5×18 cm
Delivery Time 5-6 working days
Payment Terms T/T , Paypal , L/C , D/A , D/P , Western Union , MoneyGram

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Size 15 Inch CPU Intel® Celeron J1900 , Quad Core , 2.0GHz, Fanless
Touch Type Project Capacitive Touch (10 Points) Resolution 1024*768
Brightness (cd/m²) 400+ Nit DC 24V
Lan 2 LAN Port IP Grade Front Panel IP65 Waterproof
High Light

industrial panel pc

,

panel mount computer

Leave a Message
Product Description

Aluminium Alloy Capacitive Touch 15 Inch Panel PC With 2 LAN 2 RS232 24V DC

Features:

1. Flat screen,front panel IP65 waterproof.


2. All PC Aluminuium ally material,excellent heat dissipation,anti-interference,anti-corrosion,light weight.


3. 3MM untra thin bezel,perfectly for embedded in machine.


4.  J1900 fanless CPU, noiseless and low power consumption.


5. 4G RAM,64G SSD.


6. 10 point capacitive touch.


7. With 2 Lan port, 24V terminal ,can connect for power by machine directly.


Also support 12V DC,powered by power supply.



8.  High performance motherboard, 7x24 continuous operation.


Application:

Packaging inspection equipment



CNC automation equipment



Self-service medical ticketing machine



vending machine



parking management system



sorting machine



self serve kiosk



cubing and dimensioning system



self service postal locker



cooking locker for fresh food



Optional:



With capacitive touch



With resistive touch



With Infrared touch



Without touch




Specification



Model:SC15
PC
CPU Intel® Celeron J1900 , quad core , 2.0GHz, fanless
Chipset Intel ValleyView SSA-CUnit
Memory 2G DDR3, ( Max. 8G)
Hard Drive Capacity 32G SSD
Hard Drive Optional SSD: 64G,128GB,256GB
HDD: 500GB,1TB
Graphics CPU Integrated graphics HD Graphics and support 1080p HD photo quality
Audio Realtek ALC662, High Definition Audio (HD), Line in, Line out
Network 1×Realtek RTL 8111E Gigabit Ethernet controller
Wireless Network WIFI
I/O Interface 3×USB 2.0,1×USB 3.0, 2 x COM RS232
1×VGA/HDMI/Audio OUT/MIC IN/POWER DC//2×RJ45
Operation System Support Windows 7/8/10, Linux, Ubuntu, Debian etc.
LCD panel
Panel size 15"
Resolution 1024*768
Aspect ratio 4:3
Support Color 16.7M colors
Brightness (cd/m²) 400+
Response time 5ms
Contrast ratio 1000:1
View angle 80°/80°/80°/80° (R/L/U/D)
Touch panel
Touchscreen Type Project Capacitive Touch (10 points)
Touch Interface USB (RS232 optional)
Touch response time 2ms
Luminousness 90%
Surface Hardness 7H
Working life >50 million times
Touch options ( 5 wire resistive touch, IR touch optional)
Power Supply
External Power Supply AC 100 - 240V
Working voltage DC 24V
Power consumption ≤45W
Enclosure
Material Aluminum Alloy
Color Silver , Black, white, color can be customized
VESA mounting 75×75mm/100×100mm
IP grade front panel IP65 waterproof
Operating Environment
Temperature Range operating: -10 to 60°C, storage :-20 to 80°C
Relative humidity 5%~95% @ 40° C, non-condensing
Vibration 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
Packing Details
Net weight 5.5kg
Gross weight 6kg
Product Dimension 38×30×5.95cm
Packing size 47×43.5×18 cm
Accessories Power adapter,embedded screws,user manual,warranty card
Other
Mounting (options) embedded mounting screws
wall mounting brackets (optional)
desk stand holder (optional)
Warranty 1 year warranty






Attention of warranty
1. First year warranty: by free
2. 2nd to 3rd year warranty: maintaining by some charges.


Pictures

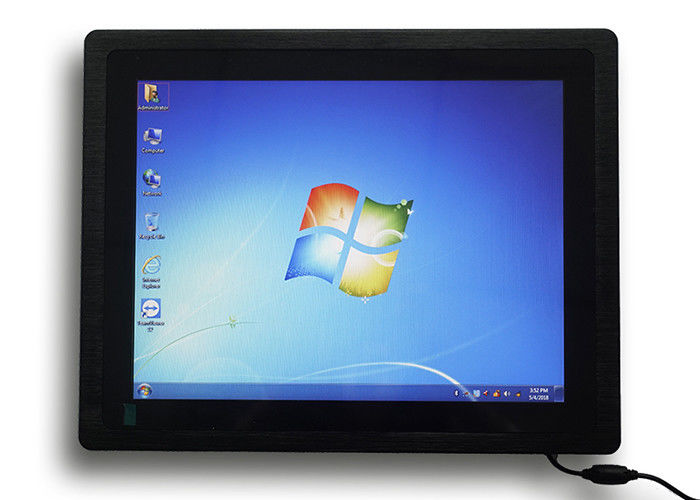

Aluminium Alloy Capacitive Embedded Touch Panel PC 15 Inch With 2 LAN 2 RS232 24V DC 0



Aluminium Alloy Capacitive Embedded Touch Panel PC 15 Inch With 2 LAN 2 RS232 24V DC 1


Drawing



Aluminium Alloy Capacitive Embedded Touch Panel PC 15 Inch With 2 LAN 2 RS232 24V DC 2
