Embedded Mounting All In One panel PC 3MM Thin Bezel 19 inch Wide Screen

Embedded Mounting All In One panel PC 3MM Thin Bezel 19 inch Wide Screen

industrial panel pc

embedded industrial pc

Place of Origin:

Shenzhen, China

Brand Name:

Shinho

Certification:

CE, FCC, RoHS

Model Number:

SC19

Contact Us
Request A Quote
Product Details
Product Name:
19 Inch Wide Screen All In One PC
CPU:
Intel Celeron J1900, Quad Core, 2.0GHz, Fanless
RAM:
2GB DDR3
Hard Disk:
32GB SSD
Resolution:
1440*900
Aspect Ratio:
4:3
Brightness:
300 Cd/m2
Feature:
3MM Thin Bezel Embedded Mounting
Payment & Shipping Terms
Minimum Order Quantity
1 Piece
Price
Negotiable
Payment Terms
T/T , Paypal , L/C , D/A , D/P , Western Union , MoneyGram
Product Description

19 inch Wide Screen All In One PC 3MM Thin Bezel Embedded Mounting


Features



  • 19" wide industrial LCD panel, wide viewing angle, high nits, true color.
  • CPU Intel Celeron J1900, quad core, 2.0GHz, fanless.
  • RAM 2GB DDR3
  • Hard drive capacity 32GB
  • 10 Points PCAP Touch Screen
  • Flat panel, front panel IP65 waterproof
  • Fully enclosed design, dustproof
  • 4 COM optional, RS232/RS422/RS485 optional.
  • Support Windows 7, Windows 8, Windows 10, Linux, Ubuntu, Debian, etc.
  • 3mm thin bezel, suitable for panel mount



Specifications

Model:SC19 Wide Screen

PC

CPU

Intel® Celeron J1900, quad core, 2.0GHz, fanless

Chipset

Intel ValleyView SSA-CUnit

Memory

2GB DDR3 (4G, 8G optional)

Hard Drive Capacity

32GB SSD

Hard Drive Optional

SSD: 64G, 128GB, 256GB

HDD: 500GB, 1TB

Graphics

CPU Integrated graphics HD Graphics and support 1080p HD photo quality

Audio

Realtek ALC662, High Definition Audio (HD), Line in, Line out

Network

1×Realtek RTL 8111E Gigabit Ethernet controller

Wireless Network

WIFI

I/O Interface

3xUSB 2.0, 1xUSB 3.0, 2xCOM RS232

1xVGA/HDMI/RJ45/Audio OUT/MIC IN/POWER DC

Operation System

Support Windows 7/8/10, Linux, Ubuntu, Debian, etc.

LCD panel

Panel size

19"

Resolution

1440*900

Aspect ratio

16:10

Support Color

16.7M colors

Brightness (cd/m²)

300+

Response time

5ms

Contrast ratio

1000:1

View angle

80°/80°/80°/80° (R/L/U/D)

Touch panel

Touchscreen Type

Project Capacitive Touch (10 points)

Touch Interface

USB (RS232 optional)

Touch response time

2ms

Luminousness

90%

Surface Hardness

7H

Working life

>50 million times

Touch options

(5 wire resistive touch, IR touch optional)

Power Supply

External Power Supply

AC 100-240V

Working voltage

DC 12V

Power consumption

≤45W

Enclosure

Material

Aluminum Alloy

Color

Black, Silver

VESA mounting

75×75mm/ 100×100mm

IP grade

Front bezel IP65 water resistant

Operating Environment

Temperature Range

operating: -10 to 60°C, storage: -20 to 80°C

Relative humidity

5%~95% @ 40° C, non-condensing

Vibration

5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis

Packing Details

Net weight

7.7kg

Gross weight

8.2kg

Product Dimension

486x332x63mm

Packing size

637x445x180mm

Accessories

Power adapter, embedded screws, user manual, warranty card

Other

Mounting (options)

embedded mounting screws

wall mounting brackets (optional)

desk stand holder (optional)

Warranty

1 year warranty


Applications

  • Agricultural automation
  • Vision system
  • Self-service Library
  • Point of Sale machine
  • Hotel check-in kiosk
  • Hospital self-service machine


Drawing

Embedded Mounting All In One panel PC 3MM Thin Bezel 19 inch Wide Screen 0



More detailed picture

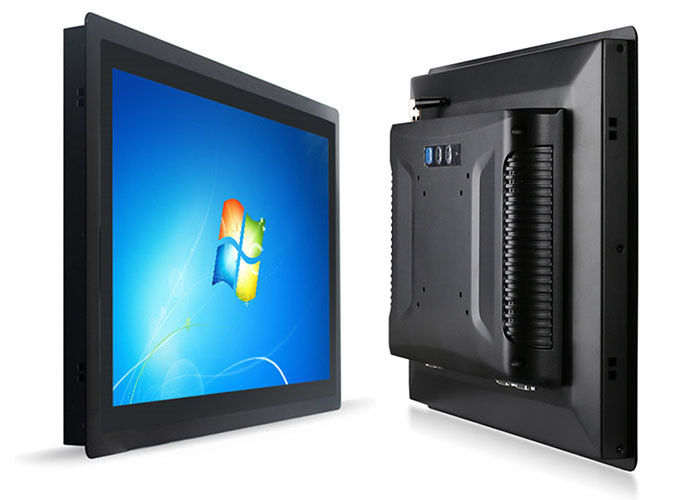

Embedded Mounting All In One panel PC 3MM Thin Bezel 19 inch Wide Screen 1
