Place of Origin:
China(Mainland)
Brand Name:
SHINHO
Certification:
CE, FCC, RoHS
Model Number:
SL15
CNC Control Automation 15 Inch Free Bezel Industrial Resistive Touchscreen Monitor
Features
1. Free bezel design, front IP65 dustproof and waterproof.
2. Anti-EMI, corrosion resistance, excellent performance of heat dissipation.
3. High performance motherboard, 7x24 continuous operation
4. English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese, etc.
5. Optional: Starting up logo, higher resolution, high brightness(1000nits or higher) wide view angle(178°/178°/178°/178°).
6. Optional: Wide temperature(-20-70℃), super wide temperature(-30-85℃), anti-glare, anti-vandal, light sensor.

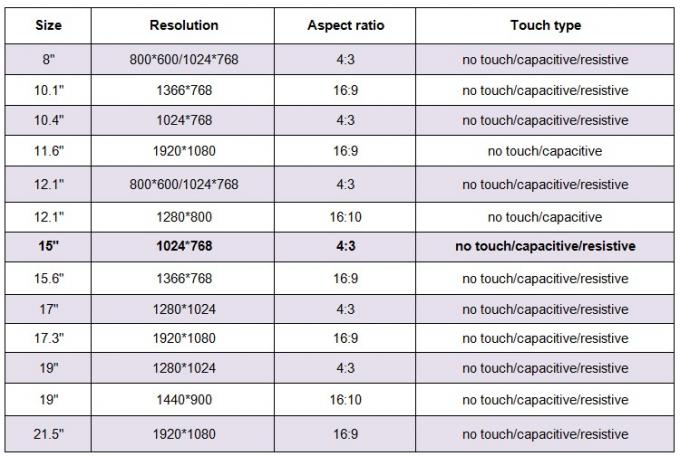

Product line
Specification
| Model: SL15 | |
| LCD panel | |
| Panel size | 15" |
| Resolution | 1024*768 |
| Aspect ratio | 4:3 |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 300+ |
| Contrast ratio | 1000:1 |
| View angle | 80°/80°/80°/80° (R/L/U/D) |
| Touch panel | |
| Touchscreen Type | 5 wire resistive touch |
| Surface Hardness | 3H |
| Luminousness | 90% |
| Touch Interface | USB (RS232 optional) |
| Touch response time | 2ms |
| Working Life | >35 million times |
| Touch options | (capacitive touch, IR touch optional) |
| Signal Ports | |
| VGA | 1x VGA |
| DVI | 1x DVI |
| HDMI | 1x HDMI |
| Audio in/out | Optional |
| OSD | |
| OSD control | Brightness, contrast ratio, auto adjustment, H/V position, language select, etc. |
| Support languages | English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese, etc. |
| Support OS | Windows XP, Windows /7/8/10, Linux, Mac OS X, Android, ect. |
| Power Supply | |
| External Power Supply | AC 100 - 240V, 50-60Hz |
| Working voltage | DC 12V |
| Power consumption | ≤25W |
| Enclosure | |
| Material | Aluminum Alloy |
| Color | Black, Silver |
| VESA mounting | 75×75mm/100×100mm |
| IP grade | Front panel IP65 waterproof |
| Operating Environment | |
| Temperature Range | Operating: -10 to 60°C, storage: -20 to 80°C |
| Relative humidity | Operating: 10% to 80%, storage: 5% to 90% |
| Packing Details | |
| Net weight | 3.2kg |
| Gross weight | 4.7kg |
| Product Dimension | 35.05*29.64*5.97cm |
| Packing size | 47*44*18cm |
| Accessories | Power adapter, Power cord, VGA cable, USB touch cable, user manual, warranty card |
| Other | |
| Mounting Way | Wall mounting brackets (optional) |
| Desk stand holder (optional) | |
| Warranty | 1 year warranty |
| Certificates | CE, FCC, RoHS |

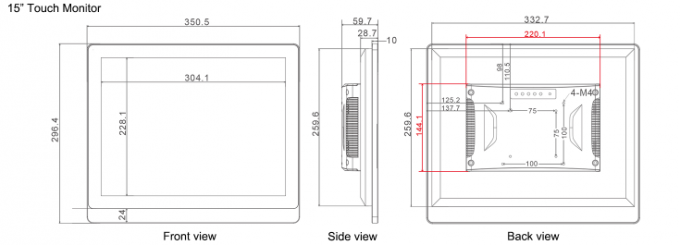

Drawing
Application
SCADA
Ticket machine
Sorting machine
CNC automation equipment
Material Tracking Databases
Pharmaceutical Glassware Inspection
Automatic testing equipment for packaging bottles

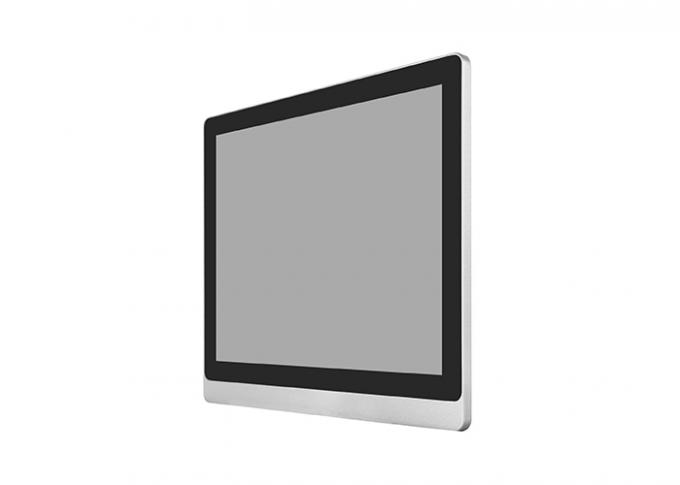

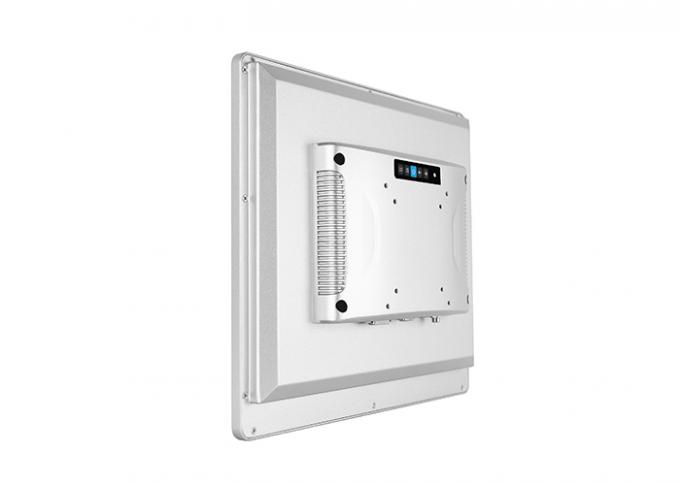

Pictures
