19'' Touchscreen Wall Rugged Android Tablet PC 1280*1024 For Industrial Control

Good quality Stainless Steel Panel PC for sales
Good quality Stainless Steel Panel PC for sales
Hello Amy, yesterday they have finally released the panel PCs from the customs, and today they arrived at our office. They are great! I think that they will be perfect for the project! Thank you very much for the great work!

—— Vladimir

We have used a majority of the units and everything is going perfect until now. Could you please quote price and delivery for an additional 300 pcs 12 inch PC in the same Configuration as the last order?

—— Don

——

I'm Online Chat Now

19'' Touchscreen Wall Rugged Android Tablet PC 1280*1024 For Industrial Control

China 19'' Touchscreen Wall Rugged Android Tablet PC 1280*1024 For Industrial Control supplier
19'' Touchscreen Wall Rugged Android Tablet PC 1280*1024 For Industrial Control supplier 19'' Touchscreen Wall Rugged Android Tablet PC 1280*1024 For Industrial Control supplier 19'' Touchscreen Wall Rugged Android Tablet PC 1280*1024 For Industrial Control supplier 19'' Touchscreen Wall Rugged Android Tablet PC 1280*1024 For Industrial Control supplier 19'' Touchscreen Wall Rugged Android Tablet PC 1280*1024 For Industrial Control supplier 19'' Touchscreen Wall Rugged Android Tablet PC 1280*1024 For Industrial Control supplier

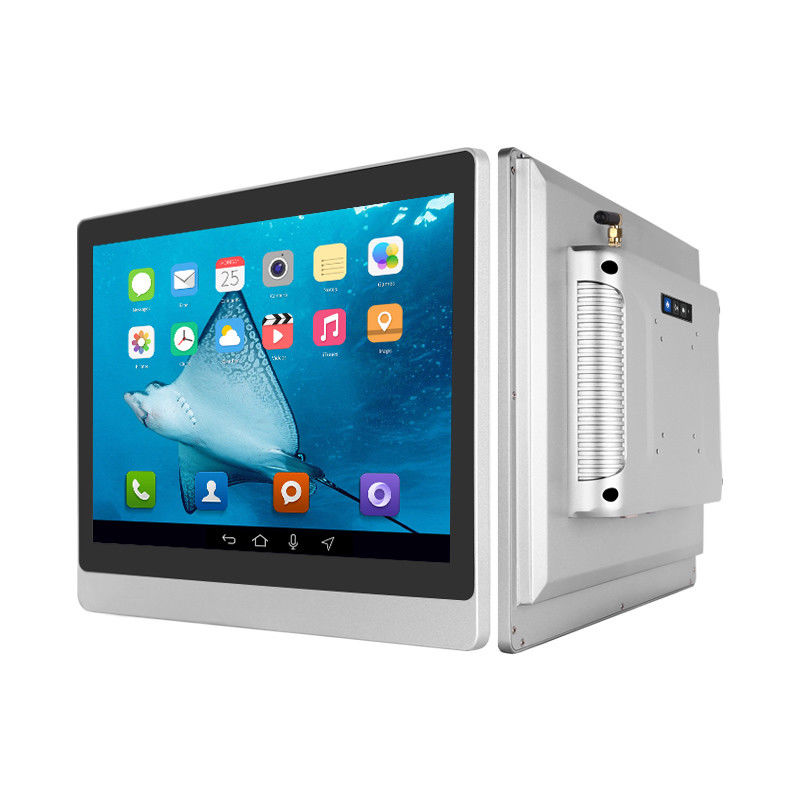

Large Image :  19'' Touchscreen Wall Rugged Android Tablet PC 1280*1024 For Industrial Control

Product Details:

Place of Origin: China(Mainland)
Brand Name: Sihovision
Certification: CE, FCC, RoHS
Model Number: SC19A

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: 53x47x19 cm, 6kg
Delivery Time: 5-7 working days for sample, 10-15 working days for bulk
Payment Terms: T/T, Western Union, MoneyGram, Paypal
Supply Ability: 5000pcs/month
Contact Now
Detailed Product Description
Product Name: 19 Inch Android Touchscreen Wall Tablet Panel PC Products Status: Stock
Cpu: A64 Operation System: Android 6.0
Memory: 2GB Storage: 8GB
Resolution: 1280*1024 Brightness: 300cd/m2
Material: Aluminum Alloy View Angle: 80°/80°/80°/80° (R/L/U/D)
Touch Type: 10 Points Capacitive Touch Or 5-Wire Resistive Touch Type: Panel PC
IP Grade: Front IP65 Waterproof Working Voltage: 12-24V
Warranty: 12months

19 inch Android Touchscreen Wall Tablet Panel PC for Industrial Control

Features



1. Super thin and ultra narrow bezel, Fully enclosed design, the whole tablet PC is dustproof.
2. Full flat panel aluminum alloy brushed, front panel IP65 waterproof.
3. Full aluminim alloy enclosure with paint spraying and dull polish, anti-EMI, corrosion resistance, excellent performance of heat dissipation.
4. Industrial LCD panel, full viewing angle, high nits, true color.
5. Adopt multi-points PCAP touch panel, high sensitive and fast-response. Covered with 2mm tempered glass for vandalproof.
6. High performance motherboard, 7x24 continuous operation.
7. With wifi, bluetooth.


Specification



Model: SC19A
PC
CPU A64, Cortex-A53, Quad-core, 1.5GHz
Memory 2GB DDR3
Storage 8GB EMMC
Decoding Resolution HDMI support 4K
Operation System Android 6.0
Play Modes Support timing, loop and spots etc. play modes
Network Support Ethernet, Bluetooth, WIFI, (4G, 3G optional)
Image Format JPG/BMP/GIF/TIFF/PNG
Video Format RMVB, FLV, MPEG1/2/4, AVI, WMV, MOV, MP4, TS, etc.
Audio Format MP3, WMA, AAC, etc.
RTC Real Time Clock YES
I/O Interfaces
DC 1xDC 12V
USB 1xUSB, 1xUSB(HOST)
Micro USB 1xMicro USB(OTG)
Card Slot 1xSD/TF/SIM card slot
HDMI 1xHDMI , support 1080p
LAN 1xRJ45, 10M/100M adaptive ethernet
Audio 1x Audio I/O
COM 2xCOM
LCD panel
Panel size 19"
Resolution 1280*1024
Aspect ratio 4:3
Support Color 16.7M colors
Brightness 300 cd/m²
Response time 5ms
Contrast ratio 1000:1
View angle 80°/80°/80°/80° (R/L/U/D)
Touch panel
Touchscreen Type 10 point capacitive touch
Touch response time <2ms
Luminousness 90%
Surface Hardness 7H
Working Life >50 million times
Power Supply
External Power Supply AC 100 - 240V
Working voltage DC 12V
Power consumption ≤22W
Enclosure
Appearance Flat panel
Material Aluminum alloy
Color Black, Silver
VESA mounting 75x75mm, 100x100mm
IP grade Front IP65 waterproof
Operating Environment
Working temperature -10°C to 60°C
Storage temperature -20°C to 60°C
Relative humidity 5-85% (non-condensing)
Vibration resistance 5-19Hz/1.0mm amplitude, 19-200Hz/1.0g acceleration
Impact resistance 10g acceleration, 11ms period
Packing Details
Net weight 5 kg
Gross weight 6 kg
Product dimension 42.33x37.29x5.98 cm
Packing size 53x47x19 cm
Accessories Power adapter, power cord, warranty card, user manual
Other
Mounting way wall mounting bracket (optional)
desk stand holder (optional)
Customization (optional) 3G, 4G, Webcam, RFID reader etc. optioanal
Warranty 1 year warranty







Drawing



19'' Touchscreen Wall Rugged Android Tablet PC 1280*1024 For Industrial Control

Application
Smart City
Intelligent Education
Public Transportation
Commercial Terminals
Industrial automation area
Product Stamping and Packaging
