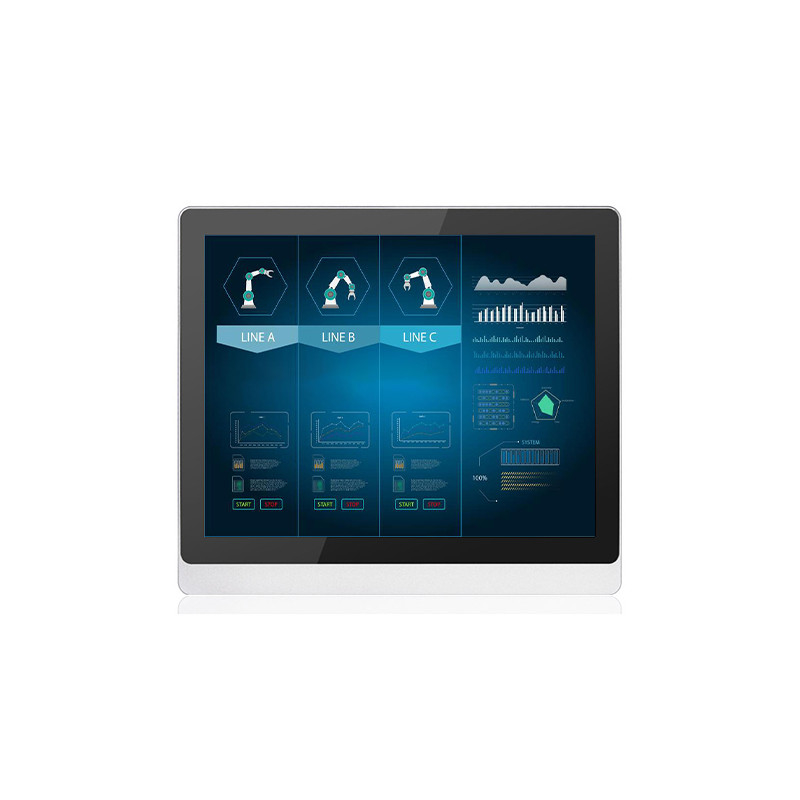

Anti Interference Capacitive Touch Monitor Front Panel IP65 Waterproof 19 Inch
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | 19 Inch Anti-interference Touchscreen Monitor | Products Status | Stock |
|---|---|---|---|
| Material | Aluminum Alloy | Resolution | 1280*1024 |
| Brightness | 300+ Cd/m2 | Interface | VGA,DVI,USB,HDMI |
| Response Time | 2ms | View Angle | 80°/80°/80°/80° (R/L/U/D) |
| IP Grade | Front IP65 Waterproof | Type | Touch Screen Monitor |
| Touch Type | 10 Points Capacitive Touch Or 5-Wire Resistive Touch | Color | Black Or Silver |
| Power Supply | DC 12V(AC 100-240V 50/60Hz) | Application | Desktop,monitor,Embedded,banana Pi,VESA Mount |
| Warranty | 12months | ||
| High Light | capacitive touch screen monitor,multi touch screen monitor,Anti Interference Capacitive Touch Monitor |
||
Product Description
19 Inch high sensitive anti-interference Touchscreen Monitor, front panel IP65 waterproof
Features
1. Super thin and ultra narrow bezel, Fully enclosed design, the whole monitor is dustproof.
2. Front bezel aluminum alloy brushed metal craft, seamless design, front panel IP65 waterproof.
3. Full aluminim alloy enclosure with paint spraying and dull polish, anti-EMI, corrosion resistance, excellent performance of heat dissipation.
4. Adopt multi-points PCAP touch panel, high sensitive and fast-response. Covered with 2mm tempered glass for vandalproof.
5. High performance mainboard, 7x24 continuous operation.
6. VGA+HDMI+DVI interfaces, USB for touch.
7. 12-24V wide voltage support.
8. Anti-interference.
9. Support wall mounting, desk stand, embedded mounting.
Specification
| Model:SL19 | |
| LCD panel | |
| Panel size | 19" |
| Resolution | 1280*1024 |
| Aspect ratio | 4:3 |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 300+ |
| Contrast ratio | 1000:1 |
| View angle | 80°/80°/80°/80° (R/L/U/D) |
| Touch panel | |
| Touchscreen Type | Project Capacitive Touch (10 points ) |
| Surface Hardness | 7H |
| Luminousness | 90% |
| Touch Interface | USB (RS232 optional) |
| Touch response time | 2ms |
| Working Life | >50 million times |
| Touch options | (5 wires restive touch, IR touch optional) |
| Signal Ports | |
| VGA | 1x VGA |
| DVI | 1x DVI |
| HDMI | 1x HDMI |
| Audio in/out | optional |
| OSD | |
| OSD control | Brightness, contrast ratio, auto adjustment, H/V position, language select, etc. |
| Support languages | English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese, etc. |
| Support OS | Windows XP, Windows /7/8/10, Linux, Mac OS X, Android, ect. |
| Power Supply | |
| External Power Supply | AC 100 - 240V, 50-60Hz |
| Working voltage | DC 12V |
| Power consumption | ≤35W |
| Enclosure | |
| Material | Aluminum Alloy |
| Color | Black, Silver |
| VESA mounting | 75x75mm/100x100mm |
| IP grade | Front panel IP65 waterproof |
| Operating Environment | |
| Temperature Range | operating: -10 to 60°C, storage: -20 to 80°C |
| Relative humidity | operating: 10% to 80%, storage: 5% to 90% |
| Packing Details | |
| Net weight | 5.2kg |
| Gross weight | 6.7kg |
| Product Dimension | 42.33*37.29*5.98cm |
| Packing size | 53*47*18cm |
| Accessories | Power adapter, Power cord, VGA cable, USB touch cable, user manual, warranty card |
| Other | |
| Mounting Way | wall mounting brackets (optional) |
| desk stand holder (optional) | |
| Warranty | 1 year warranty |
| Certificates | CE, FCC, RoHS |
Drawing
Application
Smart City
Intelligent Education
Public Transportation
Commercial Terminals
Industrial automation area
Product Stamping and Packaging
