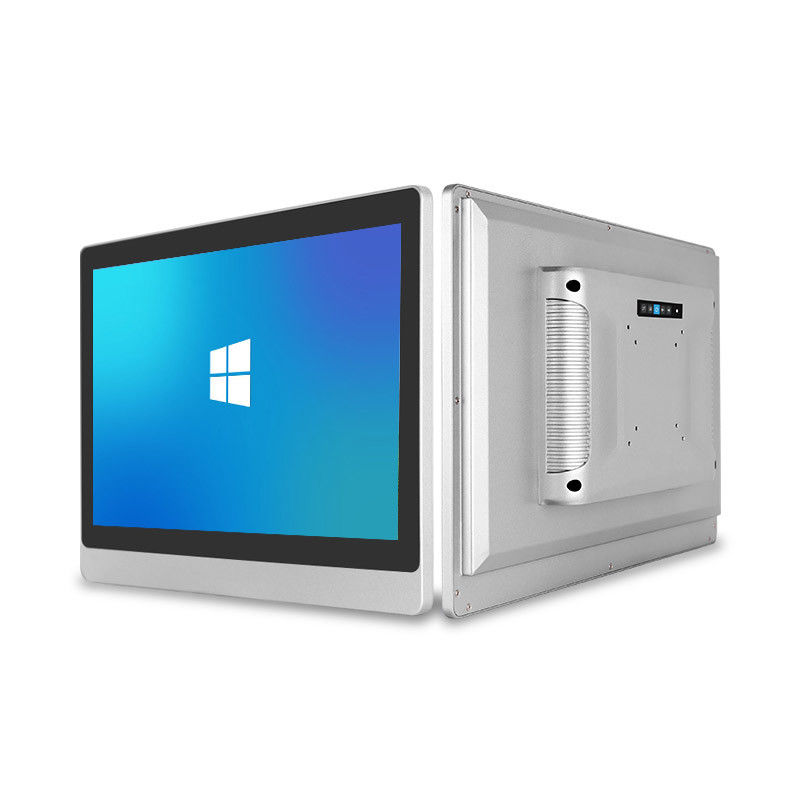

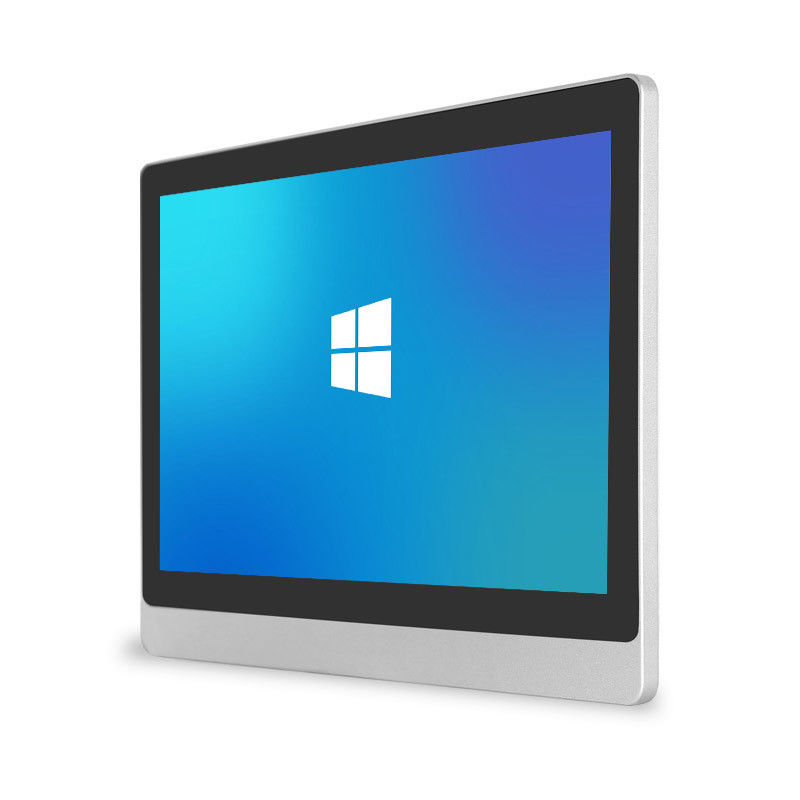

Flat Capacitive Touch Screen Monitor 21.5 Inch For Kiosks / Self Service Terminals

China Flat Capacitive Touch Screen Monitor 21.5 Inch For Kiosks / Self Service Terminals supplier
Flat Capacitive Touch Screen Monitor 21.5 Inch For Kiosks / Self Service Terminals supplier Flat Capacitive Touch Screen Monitor 21.5 Inch For Kiosks / Self Service Terminals supplier Flat Capacitive Touch Screen Monitor 21.5 Inch For Kiosks / Self Service Terminals supplier Flat Capacitive Touch Screen Monitor 21.5 Inch For Kiosks / Self Service Terminals supplier Flat Capacitive Touch Screen Monitor 21.5 Inch For Kiosks / Self Service Terminals supplier Flat Capacitive Touch Screen Monitor 21.5 Inch For Kiosks / Self Service Terminals supplier

Large Image :  Flat Capacitive Touch Screen Monitor 21.5 Inch For Kiosks / Self Service Terminals

Product Details:

Place of Origin: China(Mainland)
Brand Name: Sihovision
Certification: CE, FCC, RoHS
Model Number: SL215

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: 74*45*18cm 7.3kg
Delivery Time: 5-7 working days for sample, 10-15 working days for bulk
Payment Terms: T/T, Western Union, MoneyGram, Paypal
Supply Ability: 5000pcs/month
Contact Now
Detailed Product Description
Product Name: 21.5 Inch True Flat Capacitive Touch Screen Monitor Products Status: Stock
Material: Aluminum Alloy Resolution: 1920*1080
Brightness: 300+ Cd/m2 Interface: VGA,DVI,USB,HDMI
Response Time: 2ms View Angle: 80°/80°/80°/80° (R/L/U/D)
IP Grade: Front IP65 Waterproof Type: Touch Screen Monitor
Touch Type: 10 Points Capacitive Touch Or 5-Wire Resistive Touch Color: Black Or Silver
Power Supply: DC 12V(AC 100-240V 50/60Hz) Application: Desktop,monitor,Embedded,banana Pi,VESA Mount
Warranty: 12months

21.5 Inch True Flat Capacitive Touch Screen Monitor for kiosks, gaming, banking and self-service terminals

Features



1. Super thin and ultra narrow bezel, Fully enclosed design, the whole monitor is dustproof.
2. Front bezel aluminum alloy brushed metal craft, seamless design, front panel IP65 waterproof.
3. Full aluminim alloy enclosure with paint spraying and dull polish, anti-EMI, corrosion resistance, excellent performance of heat dissipation.
4. Adopt multi-points PCAP touch panel, high sensitive and fast-response. Covered with 2mm tempered glass for vandalproof.
5. High performance mainboard, 7x24 continuous operation.
6. VGA+HDMI+DVI interfaces, USB for touch.
7. 12-24V wide voltage support.
8. Anti-interference.
9. Support wall mounting, desk stand, embedded mounting.


Specification



Model:SL215
LCD panel
Panel size 21.5"
Resolution 1920*1080
Aspect ratio 16:9
Support Color 16.7M colors
Brightness (cd/m²) 300+
Contrast ratio 1000:1
View angle 80°/80°/80°/80° (R/L/U/D)
Touch panel
Touchscreen Type Project Capacitive Touch (10 points )
Surface Hardness 7H
Luminousness 90%
Touch Interface USB (RS232 optional)
Touch response time 2ms
Working Life >50 million times
Touch options (5 wires restive touch, IR touch optional)
Signal Ports
VGA 1x VGA
DVI 1x DVI
HDMI 1x HDMI
Audio in/out optional
OSD
OSD control Brightness, contrast ratio, auto adjustment, H/V position, language select, etc.
Support languages English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese, etc.
Support OS Windows XP, Windows /7/8/10, Linux, Mac OS X, Android, ect.
Power Supply
External Power Supply AC 100 - 240V, 50-60Hz
Working voltage DC 12V
Power consumption ≤35W
Enclosure
Material Aluminum Alloy
Color Black, Silver
VESA mounting 75x75mm/100x100mm
IP grade Front panel IP65 waterproof
Operating Environment
Temperature Range operating: -10 to 60°C, storage: -20 to 80°C
Relative humidity operating: 10% to 80%, storage: 5% to 90%
Packing Details
Net weight 5.8kg
Gross weight 7.3kg
Product Dimension 52.19*33.84*6.25cm
Packing size 74*45*18cm
Accessories Power adapter, Power cord, VGA cable, USB touch cable, user manual, warranty card
Other
Mounting Way wall mounting brackets (optional)
desk stand holder (optional)
Warranty 1 year warranty
Certificates CE, FCC, RoHS
