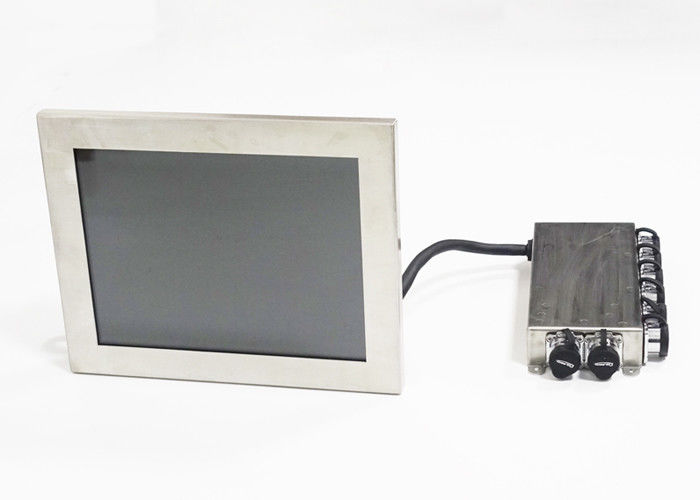

Full IP65 Waterproof Stainless Steel Panel PC 1000 Nits 1024x768 With Break Out Box
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Name | 12 Inch Stainless Steel Industrial Pc | Type | Panel Pc |
---|---|---|---|
Products Status | Stock | Cpu | I3-4010u |
Memory | 4GB | Storage | 64G |
Resolution | 1024*768 | Brightness | 1000+ Cd/m2 |
Interface | 4*USB+2*LAN+1*RS232 (on The Break Out Box) | Response Time | 10ms |
View Angle | 80°/80°/80°/80° (R/L/U/D) | Network | Realtek RTL 8111E/wifi |
Material | Aluminium Alloy | IP-grade | Full IP65 Waterproof |
Color | Silver | Touch Screen | 10 Point Capacitive Touch |
Operating System | Windows 7/8/10, Linux, Ubuntu, Debian Etc. | Power Supply | DC 12V(AC 100-240V 50/60Hz) |
Warranty | 12months | ||
High Light | industrial panel mount pc,fanless all in one pc |
15 inch 1024x768 full IP65 waterproof 1000 nits stainless steel industrial pc with break out box
Features
1. IP65 sealed 304 stainless steel enclosure.
2.Industrial LCD panel, wide viewing angle, high nits, true color.
3. Adopt 10 points PCAP touch panel , high sensitive and fast-response .
4. High performance motherboard, 7x24 continuous operation.
5. Full sealed and fanless design, full IP65 waterproof , 1000 nits,sunlight readable.
6. A break out box with only one cable connected to PC, cable is 2m, connectors on the box
7. Waterproof air valve.
Specification
Model:SC15WB | |
PC | |
CPU | Intel® core i3-4010u,dual core,1.7GHz |
Memory | 4G DDR3, (2G ,8G optional) |
Hard Drive Capacity | 64G SSD |
Hard Drive Optional | SSD: 32G,128GB,256GB |
HDD: 500GB,1TB | |
Graphics | CPU Integrated graphics HD Graphics and support 1080p HD photo quality |
Audio | Realtek ALC662, High Definition Audio (HD), Line in, Line out |
Network | Onboard Realtek RTL 8111E Gigabit Ethernet controller |
Wireless Network | WIFI |
I/O Interface | 4*USB+2*LAN+1*RS232 (on the break out box) |
Operation System | Support Windows 7/8/10, Linux, Ubuntu, Debian etc. |
LCD panel | |
Panel size | 15" |
Resolution | 1024x768 |
Aspect ratio | 4:3 |
Support Color | 16.7M colors |
Brightness (cd/m²) | 1000 nits,sunlight readable (400 nits optional) |
Response time | 10ms |
Contrast ratio | 1000:1 |
View angle | 80/80/80/80 (R/L/U/D) |
Touch panel | |
Touchscreen Type | 10 point capacitive touch |
Touch Interface | USB (RS232 optional) |
Touch response time | <8ms |
Luminousness | 90% |
Surface Hardness | 7H |
Working Life | >50 million times |
Touch options | ( 5 wire resistive touch optional) |
Power Supply | |
External Power Supply | AC 100 - 240V |
Working voltage | 12V (9-36V wide voltage optional) |
Power consumption | ≤45W |
Enclosure | |
Material | stainless steel case |
Color | Silver |
VESA mounting | 75×75mm/100×100mm |
IP-grade | Full IP65 waterproof |
Operating Environment | |
Temperature Range | operating: -10 to 60°C, storage :-20 to 80°C |
Relative humidity | 5%~95% @ 40° C, non-condensing |
Vibration | 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
Packing Details | |
Net weight | 7.5KG |
Gross weight | 8.5KG |
Product Dimension | |
Packing size | 62×47×17 cm |
Accessories | Power adapter,waterproof RS232/LAN/USB cable,power cord |
Other | |
Mounting (options) | 1) provide wall bracket for wall-mounting, VESA 100×100mm |
2) provide stable metal holder to support the monitor | |
Certificates | CE,FCC,RoHs |
Warranty | 13 months warranty |
