Ip67 Sealed Stainless Steel Panel PC 17'' High Precision Resistive Touch Screen

Good quality Stainless Steel Panel PC for sales
Good quality Stainless Steel Panel PC for sales
Hello Amy, yesterday they have finally released the panel PCs from the customs, and today they arrived at our office. They are great! I think that they will be perfect for the project! Thank you very much for the great work!

—— Vladimir

We have used a majority of the units and everything is going perfect until now. Could you please quote price and delivery for an additional 300 pcs 12 inch PC in the same Configuration as the last order?

—— Don

——

I'm Online Chat Now

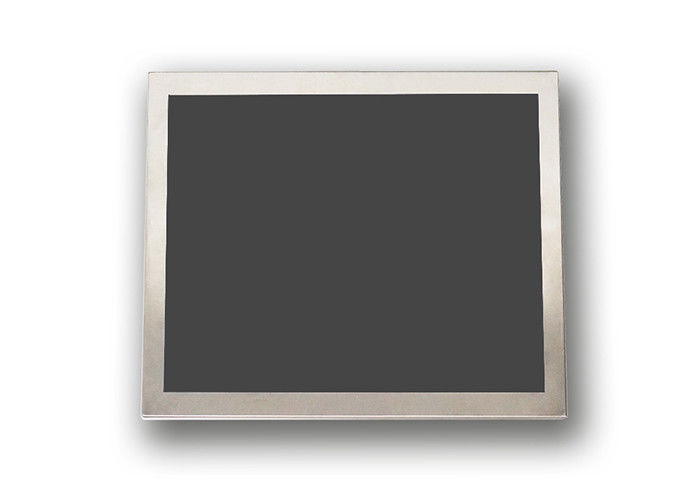

Ip67 Sealed Stainless Steel Panel PC 17'' High Precision Resistive Touch Screen

China Ip67 Sealed Stainless Steel Panel PC 17'' High Precision Resistive Touch Screen supplier
Ip67 Sealed Stainless Steel Panel PC 17'' High Precision Resistive Touch Screen supplier Ip67 Sealed Stainless Steel Panel PC 17'' High Precision Resistive Touch Screen supplier Ip67 Sealed Stainless Steel Panel PC 17'' High Precision Resistive Touch Screen supplier Ip67 Sealed Stainless Steel Panel PC 17'' High Precision Resistive Touch Screen supplier Ip67 Sealed Stainless Steel Panel PC 17'' High Precision Resistive Touch Screen supplier Ip67 Sealed Stainless Steel Panel PC 17'' High Precision Resistive Touch Screen supplier Ip67 Sealed Stainless Steel Panel PC 17'' High Precision Resistive Touch Screen supplier

Large Image :  Ip67 Sealed Stainless Steel Panel PC 17'' High Precision Resistive Touch Screen

Product Details:

Place of Origin: China(Mainland)
Brand Name: Sihovision
Certification: CE, FCC, RoHS
Model Number: SC17

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: 53×47×19 cm 10kg
Delivery Time: 5-7 working days for sample, 10-15 working days for bulk
Payment Terms: T/T, Western Union, MoneyGram, Paypal
Supply Ability: 5000pcs/month
Contact Now
Detailed Product Description
Product Name: 17 Inch Resistive Touch Screen Panel Pc Ip67 Type: Panel Pc
Products Status: Stock Cpu: J1900
Memory: 4GB Storage: 64G
Resolution: 1280*1024 Brightness: 400+ Cd/m2
Interface: 3*USB+2*RS232+1*LAN/DC Input Response Time: 5ms
View Angle: 80°/80°/80°/80° (R/L/U/D) Network: Realtek RTL 8111E/wifi
Material: Aluminium Alloy IP-grade: Full IP67 Waterproof
Color: Silver Touch Screen: 5 Wire Resistive Touch
Operating System: Windows 7/8/10, Linux, Ubuntu, Debian Etc. Power Supply: DC 12V(AC 100-240V 50/60Hz)
Warranty: 12months

17 inch high precision resistive touch screen panel pc ip67 sealed stainless steel support jet washing
Features

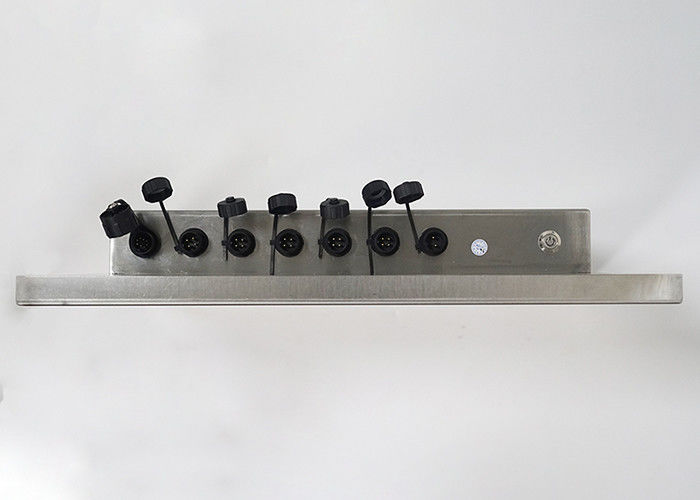

1. IP67 sealed stainless steel enclosure including I/O, Sealed I/O with cable set included.
2. Industrial LCD panel, wide viewing angle, high nits, true color.
3. Adopt 5 wires resistive touch screen, high precision, durable, anti-interference. support touch with glove.
4. Fanless design.
5. High performance motherboard, 7x24 continuous operation.
6. Support jet washing.

Specification


Model:SC17
PC
CPUIntel® Celeron J1900, quad core, 2.0GHz, fanless
ChipsetIntel ValleyView SSA-CUnit
Memory4G DDR3 (2G, 8G optional)
Hard Drive Capacity64G SSD
Hard Drive OptionalSSD: 32G, 128GB, 256GB
HDD: 500GB, 1TB
GraphicsCPU Integrated graphics HD Graphics and support 1080p HD photo quality
AudioRealtek ALC662, High Definition Audio (HD), Line in, Line out
Network1xRealtek RTL 8111E Gigabit Ethernet controller
Wireless NetworkWIFI
I/O Interface3*USB+2*RS232+1*LAN/DC Input
Operation SystemSupport Windows 7/8/10, Linux, Ubuntu, Debian, etc.
LCD panel
Panel size17"
Resolution1280*1024
Aspect ratio4:3
Support Color16.7M colors
Brightness (cd/m²)400+
Response time5ms
Contrast ratio1000:1
View angle80°/80°/80°/80° (R/L/U/D)
Touch panel
Touchscreen Type5 wire resistive touch
Touch solutionEETI
Touch InterfaceUSB (RS232 optional)
Touch response time<8ms
Luminousness90%
Surface Hardness3H
Working Life>35 million times
Touch options( capacitive touch)
Power Supply
External Power SupplyAC 100-240V
Working voltageDC 12V
Power consumption≤45W
Enclosure
Materialstainless steel case
ColorSilver
VESA mounting75x75mm/100x100mm
IP gradeFull IP67 waterproof
Operating Environment
Temperature Rangeoperating: -10 to 60°C, storage: -20 to 80°C
Relative humidity5%~95% @ 40° C, non-condensing
Vibration5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
Packing Details
Net weight8 kg
Gross weight10 kg
Product Dimension38.09x31.89x5.73 cm
Packing size53×47×19 cm
AccessoriesWaterproof power adapter, power cord, waterproof RS232/LAN/USB cable
Other
Mounting (options)embedded mounting screw s(optional)
wall mounting brackets (optional)
desk stand holder (optional)
Warranty1 year warranty
CertificateCE, FCC, RoHS



Package
Ip67 Sealed Stainless Steel Panel PC 17'' High Precision Resistive Touch Screen

Certifications
Ip67 Sealed Stainless Steel Panel PC 17'' High Precision Resistive Touch Screen

OEM & ODM

Ip67 Sealed Stainless Steel Panel PC 17'' High Precision Resistive Touch Screen

About Shinho Electronic
Ip67 Sealed Stainless Steel Panel PC 17'' High Precision Resistive Touch Screen
Application
Ip67 Sealed Stainless Steel Panel PC 17'' High Precision Resistive Touch Screen
Smart City
Intelligent Education
Public Transportation
Commercial Terminals
Industrial automation area
Product Stamping and Packaging
