Place of Origin:
China(Mainland)
Brand Name:
Sihovision
Certification:
CE, FCC, RoHS
Model Number:
SC185WF

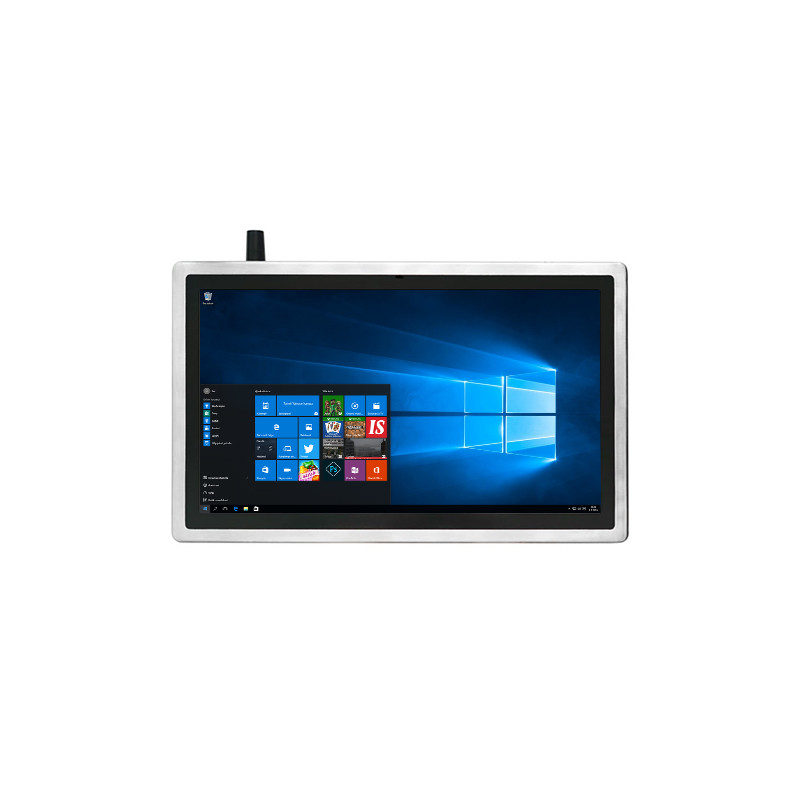

18.5 inch stainless steel 304 case touch panel pc with 2mm tempered glass for vandalproof
Features
1. Full IP65 sealed stainless steel 304 enclosure, true flat panel design, round corner design.
2. With air valve, keep air pressure balance inside and outside, anti fogging.
3. Industrial LCD panel, wide viewing angle, high nits, true color.
4. Adopt 5 wire resistive touch screen, high precision, durable, anti-interference.
5. EETI waterproof solution.
6. High performance motherboard, fanless design, 7x24 continuous operation.
Specification
| Model: SC185WF | |
| PC | |
| CPU | Intel® Celeron J1900, quad core, 2.0GHz, fanless |
| Chipset | Intel ValleyView SSA-CUnit |
| Memory | 4G DDR3, (2G ,8G optional) |
| Hard Drive Capacity | 32G SSD |
| Hard Drive Optional | SSD: 64G, 128GB, 256GB |
| HDD: 500GB,1TB | |
| Graphics | CPU Integrated graphics HD Graphics and support 1080p HD photo quality |
| Audio | Realtek ALC662, High Definition Audio (HD), Line in, Line out |
| Network | Onboard Realtek RTL 8111E Gigabit Ethernet controller |
| Wireless Network | WIFI |
| I/O Interface | 3*USB+1*LAN+1*RS232+1*DC |
| Operation System | Support Windows 7/8/10, Linux, Ubuntu, Debian etc. |
| LCD panel | |
| Panel size | 18.5" |
| Resolution | 1366*768 |
| Aspect ratio | 16:9 |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 1000 nits, sunlight readable |
| Response time | 10ms |
| Contrast ratio | 1000:1 |
| View angle | 85°/85°/80°/80° (R/L/U/D) |
| Touch panel | |
| Touchscreen Type | 5 wire resistive touch |
| Touch Interface | USB (RS232 optional) |
| Touch response time | <8ms |
| Luminousness | 90% |
| Surface Hardness | 3H |
| Working Life | >35 million times |
| Touch options | (capacitive touch optional) |
| Power Supply | |
| External Power Supply | AC 100 - 240V |
| Working voltage | 12V |
| Power consumption | ≤45W |
| Enclosure | |
| Material | stainless steel case |
| Color | Silver |
| VESA mounting | 100×100mm |
| IP-grade | Full IP65 waterproof |
| Operating Environment | |
| Temperature Range | operating: -10 to 60°C, storage: -20 to 60°C |
| Relative humidity | 5%~95% @ 40° C, non-condensing |
| Vibration | 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
| Packing Details | |
| Net weight | 9 KG |
| Gross weight | 11.5 KG |
| Product Dimension | 47.22×29.62×5.65 cm |
| Packing size | 64×48×18 cm |
| Accessories | Power adapter, waterproof RS232/LAN/USB cable, power cord |
| Other | |
| Mounting (options) | 1) provide wall bracket for wall-mounting, VESA 100×100mm |
| 2) provide stable metal holder to support the monitor | |
| Certificates | CE, FCC, RoHs |
| Warranty | 2 years warranty |

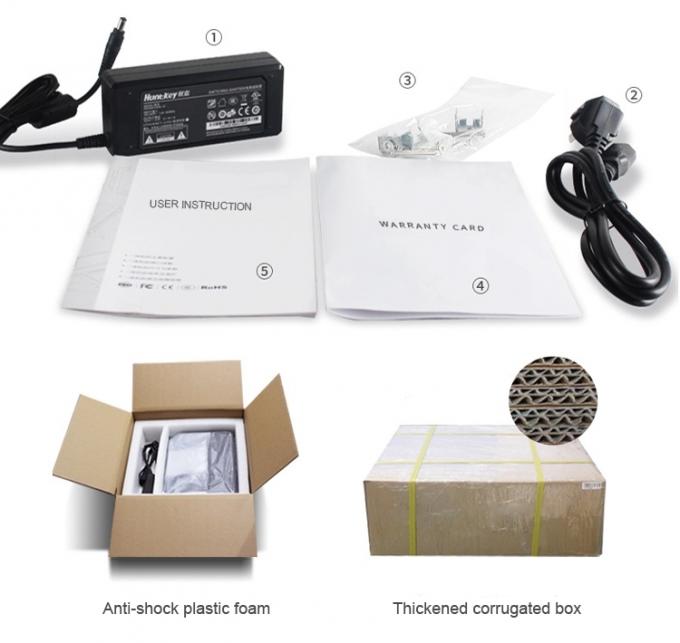

Package
Certifications
OEM & ODM
About Shinho Electronic

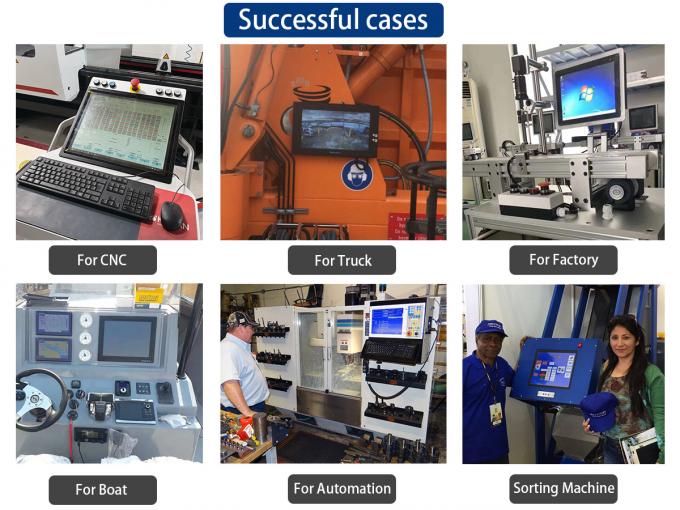

Application
Smart City
Intelligent Education
Public Transportation
Commercial Terminals
Industrial automation area
Product Stamping and Packaging
Send your inquiry directly to us
