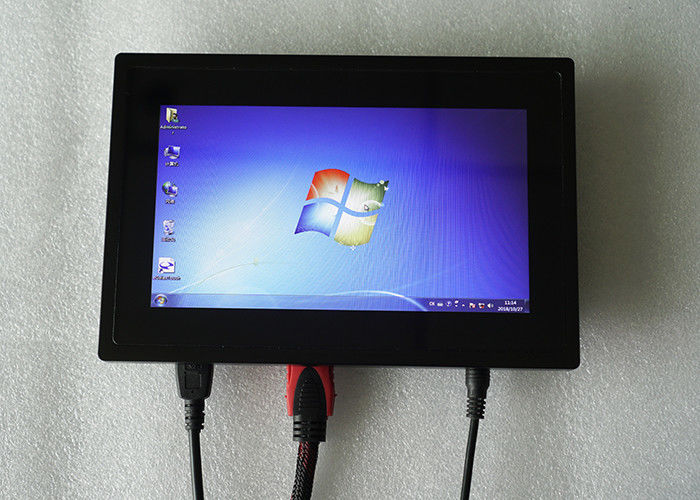

Multi - Points PCAP Capacitive Touch Monitor 1000 Nits 7 Inch High Sensitive

China Multi - Points PCAP Capacitive Touch Monitor 1000 Nits 7 Inch High Sensitive supplier
Multi - Points PCAP Capacitive Touch Monitor 1000 Nits 7 Inch High Sensitive supplier Multi - Points PCAP Capacitive Touch Monitor 1000 Nits 7 Inch High Sensitive supplier Multi - Points PCAP Capacitive Touch Monitor 1000 Nits 7 Inch High Sensitive supplier Multi - Points PCAP Capacitive Touch Monitor 1000 Nits 7 Inch High Sensitive supplier Multi - Points PCAP Capacitive Touch Monitor 1000 Nits 7 Inch High Sensitive supplier Multi - Points PCAP Capacitive Touch Monitor 1000 Nits 7 Inch High Sensitive supplier

Large Image :  Multi - Points PCAP Capacitive Touch Monitor 1000 Nits 7 Inch High Sensitive

Product Details:

Place of Origin: Shenzhen,China
Brand Name: Sihovision
Certification: CE,FCC, RoHS
Model Number: SL07

Payment & Shipping Terms:

Minimum Order Quantity: 1 Piece
Price: Negotiable
Packaging Details: 36*26*6cm 2kg
Delivery Time: 5-8 working days
Payment Terms: L/C, T/T, Western Union, Paypal, MoneyGram
Supply Ability: 5000 Pieces Per Month
Contact Now
Detailed Product Description
Product Name: 7 Inch RS232 Touch Screen Monitor Products Status: Stock
Resolution: 1024*600 Screen Size: 7"
Interface: VGA, HDMI Brightness: 1000+ Nits
IP Grade: Front Panel IP65 Waterproof Viewing Angle: 75°/75°/70°/75° (R/L/U/D)
Touchscreen Type: Project Capacitive Touch (10 Points ) Material: Aluminum Alloy
Power Supply: DC 12V(AC 100-240V 50/60Hz) Widescreen: Yes
Panel Type: TFT Color: Black
Application: Embedded/desktop/wall Mount Warranty: 1 Years

7 inch high sensitive multi-points PCAP touch screen monitor 1000 nits sunlight readable



Features:



1. Front bezel aluminum alloy brushed metal craft, seamless design, front panel IP65 waterproof.
2. Adopt multi-points PCAP touch panel, high sensitive and fast-response. Covered with 2mm tempered glass for vandalproof.
3. High performance mainboard, 7x24 continuous operation.
4. VGA+HDMI interfaces, USB for touch.
5. 1000 nits, sunlight readable.
6. Support wall mounting, embedded mounting, desk stand mouting etc.



Specification



Model:SL07
LCD panel
Panel size 7"
Resolution 1024*600
Aspect ratio 16:9
Support Color 16.7M colors
Brightness (cd/m²) 1000 nits, sunlight readable
Contrast ratio 800:1
View angle 75°/75°/70°/75° (R/L/U/D)
Touch panel
Touchscreen Type Project Capacitive Touch (10 points )
Surface Hardness 7H
Luminousness 90%
Touch Interface USB (RS232 optional)
Touch response time 2ms
Working Life >50 million times
Touch options (5 wires restive touch, IR touch optional)
Signal Ports
VGA 1x VGA
HDMI 1x HDMI
DVI optional
Audio in/out optional
OSD
OSD control Brightness, contrast ratio, auto adjustment, H/V position, language select, etc.
Support languages English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese, etc.
Support OS Windows XP, Windows /7/8/10, Linux, Mac OS X, Android, ect.
Power Supply
External Power Supply AC 100 - 240V, 50-60Hz
Working voltage DC 12V
Power consumption ≤35W
Enclosure
Material Aluminum Alloy bezel+High strength cold rolled steel back case
Color Black, Silver
VESA mounting 75x75mm
IP grade Front panel IP65 waterproof
Operating Environment
Temperature Range operating: -10 to 60°C, storage: -20 to 80°C
Relative humidity operating: 10% to 80%, storage: 5% to 90%
Packing Details
Net weight 1kg
Gross weight 2kg
Product Dimension 21.8*15.5*3.1cm
Packing size 36*26*6cm
Accessories Power adapter, HDMI cable, USB touch cable, embedded screws, open frame kits
Other
Mounting embedded mounting screws
wall mounting brackets (optional)
desk stand holder (optional)
Warranty 1 year warranty
Certificates CE, FCC, RoHS
