Fanless embedded computer J1900 industrial mini pc with 6xCOM
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Industrial Mini PC | Products Status | Stock |
|---|---|---|---|
| CPU | J1900 | Processor Main Frequency | 2.0GHz |
| Graphics Card Type | Integrated Card | RAM | 4GB |
| Hard Disk | 64G SSD | Storage | Support 1 Piece MSATA+ 2.5'inch SSD/HDD |
| Type | Embedded Computer | Wifi | Yes (Optional) |
| Temp | -20℃～60℃ | Optical Drive Type | CD-ROM |
| Material | Aluminum Alloy | Color | Silver/black |
| Operating System | Window 7/ 8 /10 Linux Ubuntu | Weight | 1.6KG |
| Dimension | 186*150*66mm | Warranty | 12 Months |
Product Description

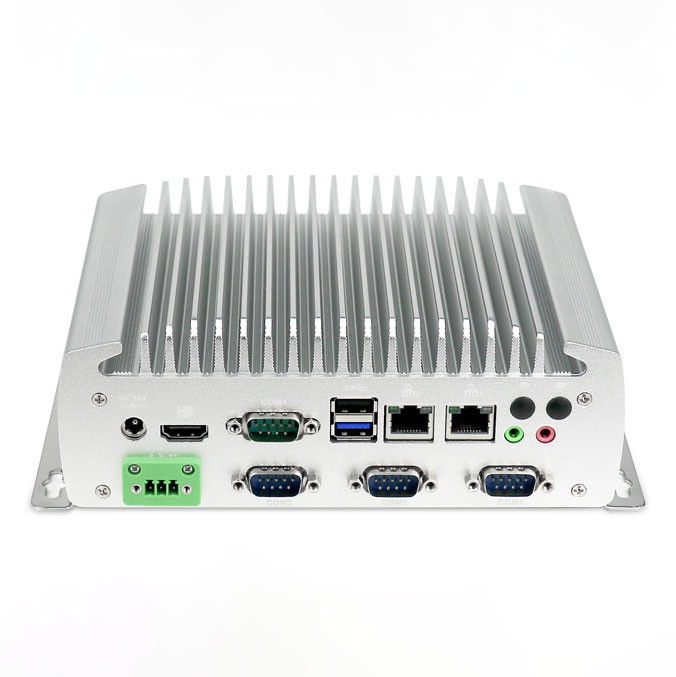

Fanless embedded computer J1900 industrial mini pc with 6xCOM
Key Features:
1. Full Aluminum alloy enclosure, fanless design.
2. High performance motherboard, 7x24 continuous operation.
3. Intel Celeron J1900 quad core processor, 2.0GHz
4. 1x HDMI + 2x LAN + 6x COM + 6x USB
5. AMI UEFI BIOS, wake on LAN, electricity boot, WDT;
6. Support wifi and bluetooth optional (Not included in standard quotation)
7. 2x RTL8111E 1000M LAN card, support wake on LAN
8. Compatible Windows 7/8/10, Linux, Ubantu.
Rugged PCs ideal for applications like
manufacturing
industrial automation
medical, semiconductor
food processing
machine control
other scenarios in which desktops and notebooks are not feasible, yet high processing performance is needed.
Specification
| Model: SM101 | |
| PC | |
| CPU | Intel Celeron J1900, quad core, 2.0GHz |
| Memory | 4 GB |
| Storage | 64 GB |
| Expansion | 1x MINI PCIE |
| Display | 1x HDMI, 1X LVDS |
| Display Chip | Integrated Intel HD Graphics |
| Audio | Integrated Realtek ALC662 6 sound channel |
| Network | 2x Realtek 8111E 10/100/1000M |
| I/O Interface | 4x USB 2.0, 2x USB 3.0, 1x HDMI, 1x Phoenix Terminal, 1x 2 in 1 Audio, 1x DC 12V port, 6x COM, 2x RJ45 1000M Lan |
| BIOS | AMI UEFI BIOS |
| Operation System | Support Windows 7/8/10, Linux, Ubuntu, Debian etc. |
| Power Supply | |
| External Power Supply | AC 100 - 240V |
| Working voltage | DC 12V |
| Power consumption | ≤40W |
| Enclosure | |
| Material | Aluminum Alloy |
| Color | Silver |
| Operating Environment | |
| Temperature Range | operating: -10 to 50°C, storage: -10 to 60°C |
| Relative humidity | 5%~95% , non-condensing |
| Packing Details | |
| Net weight | 1.6kg |
| Gross weight | 2.0kg |
| Product Dimension | 18.6*15*6.6cm |
| Packing size | 28*20*18cm |
| Accessories | Power adapter, open frame kits, user manual, warranty card |
| Other | |
| Mounting (options) | open frame |
| wall mounting brackets (optional) | |
| Warranty | 1 year warranty |
