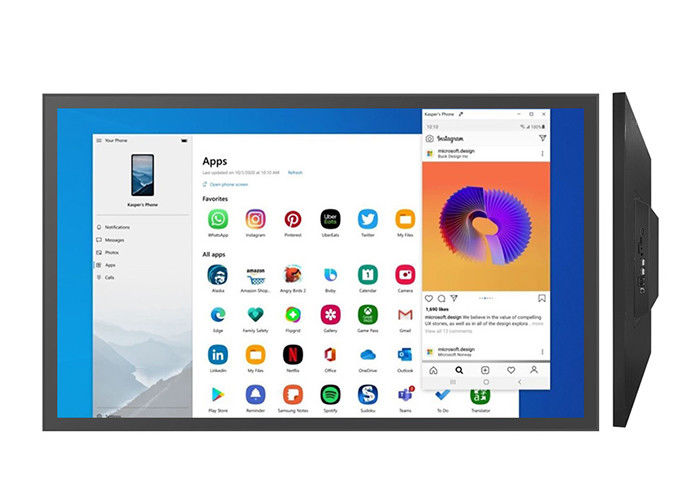

27 Inch 36W Aluminum Alloy Industrial Android Tablet Anti Glare
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Optical Bonding Touch Screen Tablet | Cpu | RK3288 |
|---|---|---|---|
| RAM | 2GB | EMMC | 8GB |
| Resolution | 1920*1080 | Brightness | 250cd/m2 |
| Material | Aluminum Alloy | View Angle | 89°/89°/89°/89° (R/L/U/D) |
| Touch Type | 10 Points Capacitive Touch | OS | Android 5.1 |
| IP Grade | Front Panel IP65 Waterproof | Working Voltage | DC 12V |
| Warranty | 12months | Feature | Optical Bonding |
| High Light | Aluminum Alloy Industrial Android Tablet,36W Industrial Android Tablet,Anti Glare Capacitive Android Tablet |
||
Product Description
Features
1. Robust and durable aluminium alloy enclosure, front panel IP65 waterproof and dustproof.
2. Industrial LCD panel, wide viewing angle, high nits, true color.
3. Adopt 10 point capacitive touch screen, high precision, durable, anti-interference
4. High performance motherboard,7x24 continuous operation.
5. Support wall mounting, embedded and rackmount etc. apply to a wide range of industrial application.
6.With wifi,bluetooth.
7. Etched with AG surface treatment to prevent glare.
8. Optical bonding, increase the light transmittance.
Specification
| PC System | |
| CPU | Rk3288 |
| Chipset | Cortex-A17 |
| Memory | 2GB |
| Storage | eMMC 8GB DDR3 |
| Network | 10/100/1000M Base-T Gigabit Ethernet |
| OS | Android 5.1 |
| Wi-Fi | 2.4G Wi-Fi (WLAN 802.11b/g/n) |
| Display interface | Single and double LVDS interface；EDP |
| Bluetooth | 4.1 |
| battery | 3V battery (CR2032) |
| Display Characteristics | |
| Design | Open Frame |
| Diagonal | 27", 68.6cm |
| Panel | LCD, Anti-glare coating |
| Native resolution | 1920(H) ×1080(V) (2.1 megapixel Full HD) |
| Aspect ratio | 16:9 |
| Brightness | 350 cd/m |
| LED Life Time | 30,000 Hour |
| Contrast Ratio (Center of screen) | 3000:1 |
| Viewable area W x H | 599.6(W)x388.1 (H) |
| Response Time | 18ms |
| Viewing zone | horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89° |
| Support Color | 16.7M colors |
| Touch | |
| Touch technology | projective capacitive |
| Touch points | 10 |
| Touch accuracy | ±2mm |
| Surface Treatment | Anti-glare (chemical etching) |
| Touch interface | USB |
| Supported operating systems | win7 ,win10, Linux ,android |
| Through-Glass | 3mm |
| Touch scheme | EETI |
| Mechanical | |
| Fanless design | yes |
| MTBF | 30,000 Hour |
| Cable management system | yes |
| Operation temperature | 0°C - 50°C |
| AngeStorage temperature range | - 20°C - 60°C |
| Power Management | |
| Power supply unit | External |
| Power supply | DC 12V |
| Output power | 36W |
| Rated output current | 3A |
| Installation Method | |
| VESA | 100mm*100mm Mounted at side |
| External Connectors | |
| DC-In | ×1 |
| HDMI | ×1 |
| USB | ×2 |
| Headphone and microphone combo 3.5mm | ×1 |
| Sim card | ×1 |
| TF card | Support 32GB |
| Wi-Fi | 2.4G Wi-Fi (WLAN 802.11b/g/n) |
| Com | ×2 |
| Internal Connectors | |
| DC IN | ×1 |
| USB | ×4 |
| Serial | ×1 |
| Speaker | ×1 |
| IR&LED | ×1 |
| Power Keyer | ×1 |
| DEBG | ×1 |
| LDVS | ×1 |
| UART TTL | ×1 |
| KEY | ×1 |
| 12C Control | ×1 |
| GPIO | ×1 |
| BL Control | ×1 |
| EDP | ×1 |
| SPK | ×1 |
| MIC | ×1 |
| PCI_E | ×1 |
| Dimensions / Weight | |
| Product dimensions W x H x D | 634 x 386 x 45mm |
| Box dimensions W x H x D | 754 x 486 x 85mm |
| Weight (without box) | 9.6kg |
| Weight (with box) | 13kg |
| Product country origin | China |
