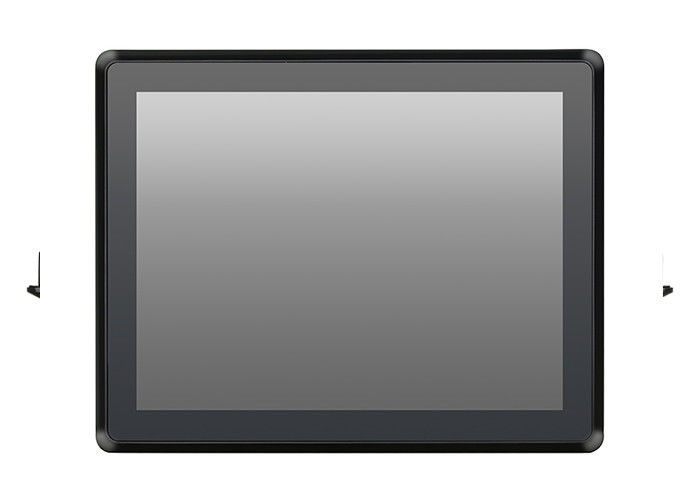

FCC 15 Inch RK3399 Embedded Industrial Panel Pc Screen Ip65 300cd/m2

FCC 15 Inch RK3399 Embedded Industrial Panel Pc Screen Ip65 300cd/m2

FCC Embedded Industrial Panel Pc

RK3399 Embedded Industrial Panel Pc

300cd/m2 Waterproof Touch Screen Monitor

Place of Origin:

China(Mainland)

Brand Name:

Sihovision

Certification:

CE, FCC, RoHS

Model Number:

SC15A

Contact Us
Request A Quote
Product Details
Product Name:
Android Industrial Panel Pc
Cpu:
RK3399
RAM:
4GB
EMMC:
32GB
Resolution:
1024*768
Brightness:
300cd/m2
Material:
Aluminum Alloy
View Angle:
80°/80°/80°/80° (R/L/U/D)
Touch Type:
10 Points Capacitive Touch
OS:
Android 9.0
IP Grade:
Front Panel IP65 Waterproof
Working Voltage:
DC 12V
Warranty:
12months
Payment & Shipping Terms
Minimum Order Quantity
1 piece
Price
Negotiable
Payment Terms
T/T, Western Union, MoneyGram, Paypal
Product Description

Features
1. Fully enclosed design, the whole tablet PC is dustproof.

2. Seamless design flat bezel, front panel IP65 waterproof.

3. Aluminum alloy shell, good mechanical properties, excellent heat dissipation.

4. Industrial LCD panel, wide viewing angle, high nits, true color.

5. Adopt multi-points PCAP touch panel, high sensitive and fast-response. Covered with 2mm tempered glass for vandalproof.

6. High performance motherboard, 7x24 continuous operation.

7. With wifi, bluetooth.

Specification

Model: SC15A
PC
CPU A64-Cortex-A53 Quad core, 1.5GHz
Memory 2GB DDR3
Storage 8GB EMMC
Decoding Resolution Support 1080P
Operation System Android 6.0
Play Modes Support timing, loop and spots etc. play modes
Network Support RJ45, WIFI, 3G, 4G, TD-LTE (optional)
Image Format JPEG/BMP/GIF/PNG
Video Format RMVB, FLV, MPEG1/2/4, AVI, WMV, MOV, MP4, TS, etc.
Audio Format MP3, WMA, AAC, etc.
RTC Real Time Clock YES
I/O Interfaces
USB 2xUSB
COM 2xCOM (up to 4)
LAN 1xRJ45, 10M/100M adaptive ethernet
HDMI 1xHDMI , support 1080p
DC 1xDC, 1xPHOENIX TERMINAL
Micro USB 1xMicro USB
Card Slot 1xTF card slot
SIM Slot 1xSIM slot
Audio I/O 1xAudio I/O
UBOOT 1xUBOOT
LCD panel
Panel size 15"
Resolution 1024*768
Aspect ratio 4:3
Support Color 16.7M colors
Brightness 300 cd/m²
Response time 5ms
Contrast ratio 1000:1
View angle 80°/80°/80°/80° (R/L/U/D)
Touch panel
Touchscreen Type 10 point capacitive touch
Touch response time <2ms
Luminousness 90%
Surface Hardness 7H
Working Life >50 million times
Power Supply
External Power Supply AC 100 - 240V
Working voltage DC 12V
Power consumption ≤25W
Enclosure
Appearance Flat panel
Material Aluminum alloy
Color Black, Silver
VESA mounting 75x75mm/100x100mm
IP grade Front IP65 waterproof
Operating Environment
Working temperature -10°C to 60°C
Storage temperature -20°C to 70°C
Relative humidity 5-85% (npn-condensing)
Vibration resistance 5-19Hz/1.0mm amplitude, 19-200Hz/1.0g acceleration
Impact resistance 10g acceleration, 11ms period
Packing Details
Net weight 4.5 kg
Gross weight 5.5 kg
Product dimension 33.61x29x6.8 cm
Packing size 47x43x18 cm
Accessories Power adapter, power cord, embedded screws, user manual, warranty card
Other
Mounting way Embedded mounting screws
Wall mounting brackets (Optional)
Desk stand holder (Optional)
Customization (optional) 3G, 4G, Webcam, RFID reader etc. Optional
Warranty 1 year warranty


Certifications
FCC 15 Inch RK3399 Embedded Industrial Panel Pc Screen Ip65 300cd/m2 0

OEM & ODM

FCC 15 Inch RK3399 Embedded Industrial Panel Pc Screen Ip65 300cd/m2 1

About Shinho Electronic
FCC 15 Inch RK3399 Embedded Industrial Panel Pc Screen Ip65 300cd/m2 2
Application
FCC 15 Inch RK3399 Embedded Industrial Panel Pc Screen Ip65 300cd/m2 3


Application
Smart City
Intelligent Education
Public Transportation
Commercial Terminals
Industrial automation area
