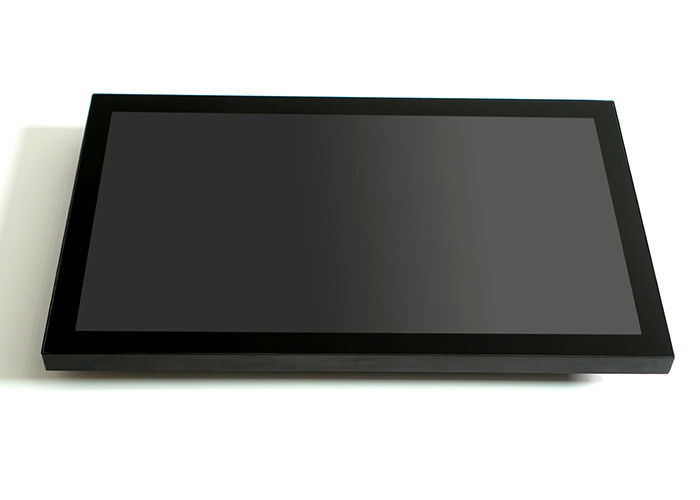

1000nits 3840×2160 Sunlight Readable LCD Display 32'' RS232 Optical Bonding
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Name | Optical Bonding LCD Monitor | Resolution | 3840*2160 |
---|---|---|---|
Brightness | 1000 Nits Sunlight Readable | IP Grade | Full Waterproof IP65 |
Working Temperature Range | 0 To 50°C | Signal Ports | VGA+HDMI |
Touch Type | Capacitive Touch | Screen Processing | Optical Bonding |
High Light | 1000nits Sunlight Readable LCD Display,3840×2160 Sunlight Readable LCD Display,RS232 Optical Bonding LCD Monitor |
Features
1. Robust and durable, all-metal enclosure, sealing design, full IP65 waterproof, Sealed I/O with cable set included.
2. 32'' LCD panel with 1920*1080 resolution,1000 nits. sunlight readable. Anti glare.
3. Adopt EETI waterproof touch solution. touch can work well with drop water on the screen.
4. Optical bonding technology.
5. High performance mainboard, 7x24 continuous operation.
Specification
Model:SL32W | |
LCD panel | |
Panel size | 32" |
Resolution | 1920*1080 (3840*2160 optional) |
Aspect ratio | 16:9 |
Support Color | 16.7M colors |
Brightness (cd/m²) | 1000 nits, sunlight readable |
Surface treatment | Anti glare |
Contrast ratio | 3000:1 |
View angle | 89°/89°/89°/89° (R/L/U/D) |
Touch panel | |
Touchscreen Type | Project Capacitive Touch (10 points ) |
Surface Hardness | 7H |
Luminousness | 90% |
Touch Interface | USB (RS232 optional) |
Touch response time | 2ms |
Working Life | >50 million times |

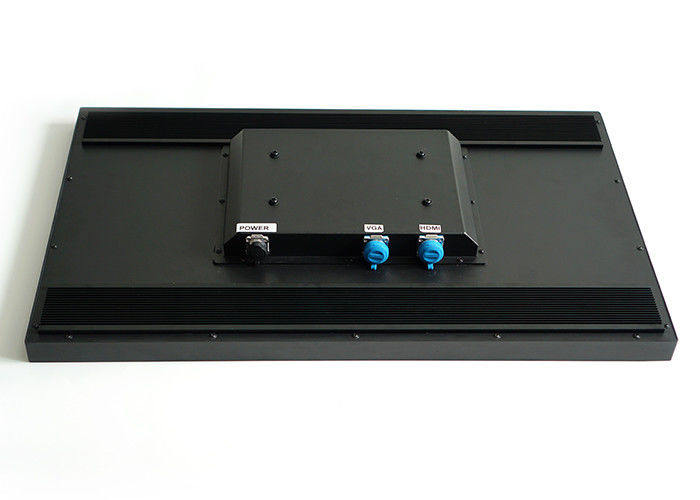

Singal Ports | |

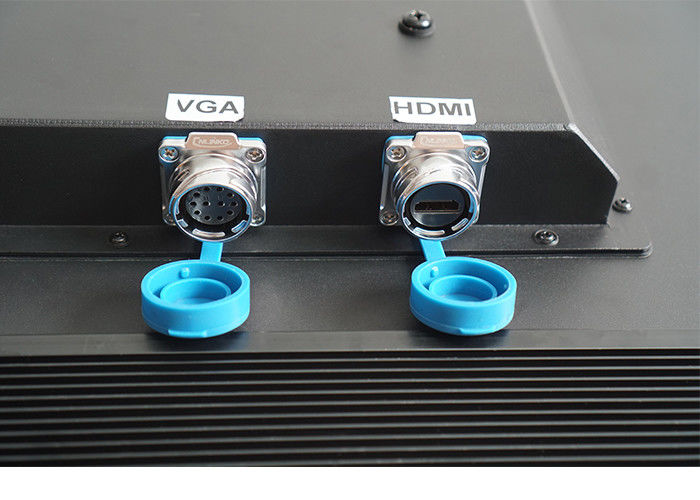

VGA | 1xVGA |
HDMI | 1xHDMI |
DVI | optional |
DP | optional |
Audio in/out | optional |
OSD | |
OSD control | Brightness, contrast ratio, auto adjustment, H/V position, language select etc. |
Support languages | English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese etc. |
Support OS | Windows XP, Windwows /7/8/10, Linux, Mac OS X, Android, ect. |
Power Supply | |
Built-in power supply | AC 100-240V |
Power consumption | ≤60W |
Enclosure | |
Material | High strength cold rolled steel case |
Color | Black, white, Silver, color can be customized |
VESA mounting | 200x100 mm |
IP-grade | Full IP65 waterproof |
Operating Environment | |
Temperature Range | operating: 0 to 50°C, storage: -10 to 60°C |
Relative humidity | operating: 10% to 90%, storage: 5% to 90% |
Packing Details | |
Net weight | 14.5 kg |
Gross weight | 18.4 kg |
Product Dimension | 78*47.46*7.67 cm |
Packing size | 88*59 *16 cm |
Accessories | Waterproof Power cord, Waterproof VGA/HDMI/USB cable |
Other | |
Mounting (options) | 1) wall brackets for wall-mounting, VESA 200×100 mm |
2) stable metal holder to support the monitor | |
Warranty | 1 year warranty |
