Place of Origin:
Shenzhen , China
Brand Name:
Sihovision
Certification:
CE, FCC, RoHS
Model Number:
SM103

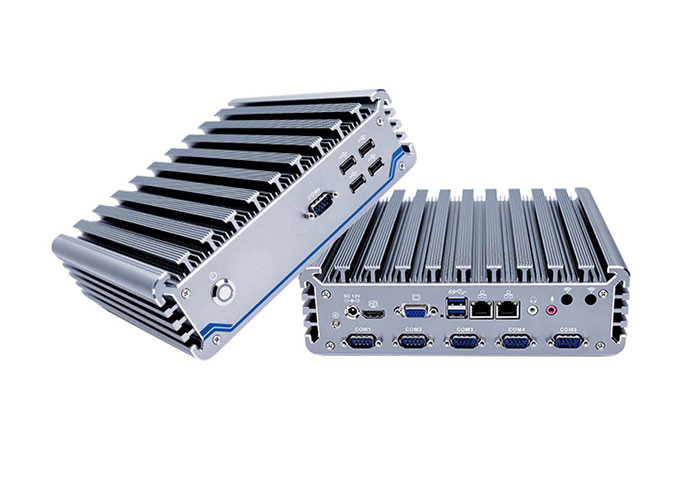

Aluminum Alloy Fanless Computer Dual Lan I7 8265u 16G Ram Industrial Pc
Key Features:
1. Stable performance, lower power consumption.
Intel core i3-8145u (dual core, 4 threads, 2.1 GHz, Max Turbo 3.9 GHz).
Intel core i5-8265u (quad core, 8 threads, 1.6 GHz, Max Turbo 3.9 GHz).
Intel Core i7-8565u (quad core, 8 threads, 1.6 GHz, Max Turbo 4.1 GHz).
2. Efficient heat dissipation.
High quality aluminum case forquickly heat dissipation. Fanless design for dustproof,shockproof and no noise.
3. I/O
2*RTL8111H 10/100/100OM LAN Support 1*M.2 2280 slot 1*2.5”SATA HDD lt can connect many device,such as industrial instruments
4. Full HD Dual Display
Support synchronous and asynchronous dual display
5. Various applications
| Model: SM103Plus | |
| PC | |
| CPU | Intel core i3-8145u, i5-8265u, i7-8565u |
| CPU Architecture | Whiskey Lake |
| RAM | Support 2*DDR4 2400/2666 SODIMM Ram Slot, Max 32G |
| Storage | Support 1*M.2 2280 Slot, 1*2.5''HDD |
| BIOS | AMI EFI BIOS |
| Display Chip | Integrated Intel Ultra HD Graphics |
| Display Port | 1*VGA, 1*HD (Support synchronous and asynchronous dual display) |
| Network | 2* RTL 8111H 10/100/1000M Lan |
| Function | Auto power on when there is electricity, Timing boot, Wake on LAN, PXE boot, Watchdog(0～255 level) |
| Front I/O | 4*USB2.0, 1*COM, 1*Power Switch |
| Rear I/O | 2* 1000M LAN, 1*VGA, 1*HD, 1 * Mic, 1 * Line Out, 5*COM (COM2 support RS232/485 Optional) , 1*DC, 2*USB3.0 |
| Expansion Slot | Support 1*M.2 2280 slot (Support PCIE X4 and SATA signal), Embeded SIM Slot |
| Support 1*M.2 2230 Slot (Support WiFi/BT) (standard version) | |
| Support 1*M.2 2242 Slot (support 4G), with SIM slot( optional version) | |
| Optional port: GPIO, 2*USB3.0, 1*LPT, 2*PS/2 (standard version without these port) | |
| Power Supply | |
| Power Supply | Support DC 12 Input (DC 9 ～ 36V Optional) |
| Enclosure | |
| Material | High-quality all aluminum,surface anodic oxidation |
| Operating Environment | |
| Temperature Range | 0℃ ～ +50℃ (Commercial HDD), -20℃ ～ +60℃ (Industrial SSD), Surface air flow |
| Work Humidity | 0% ～ 95% non-condensing |
| Packing Details | |
| Net weight | 3 kg |
| Gross weight | 4.5 kg |
| Product Dimension | 230 * 202 * 68 mm |
| Packing size | 310x280x80mm |
| Other | |
| Mounting (options) | 1) provide wall brackets for wall-mounting, VESA 100×100mm |
| 2) provide stable metal holder to support the monitor | |
| Customization | 3G,4G,Webcam, RFID reader etc. optioanal |
| Warranty | 1 year warranty |
