Place of Origin:
China(Mainland)
Brand Name:
Sihovision
Certification:
CE, FCC, RoHS
Model Number:
SC15A

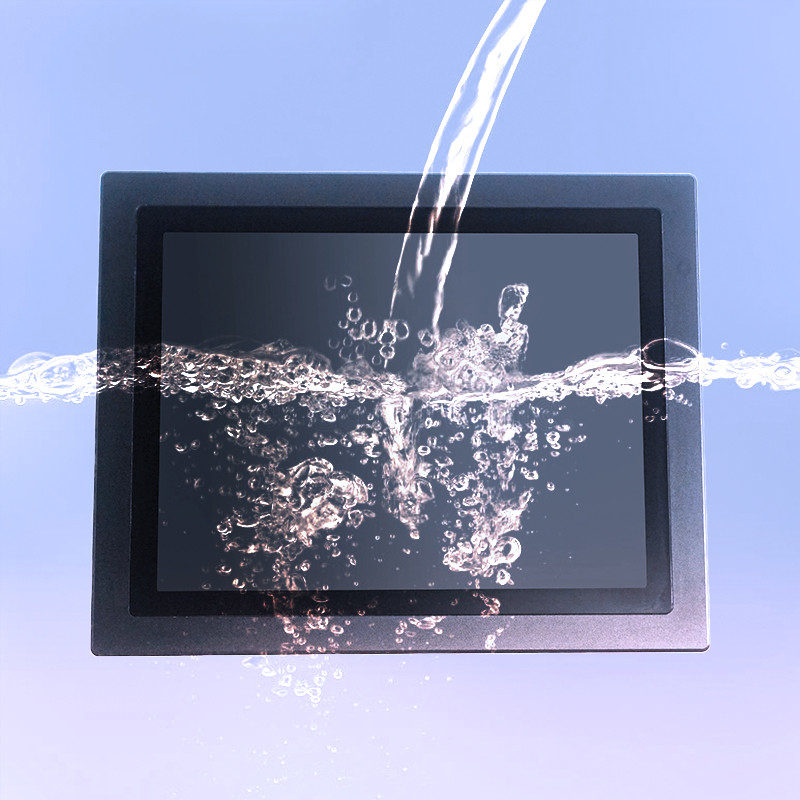

Full IP67 Waterproof Android Panel PC 1000 Nits RK3288 Industrial All In One PC
Features
1. Robust and durable aluminium alloy and high strength cold rolled steel enclosure. 2. Full IP65 waterproof and dustproof.
3. Industrial LCD panel, wide viewing angle, high nits, true color.
4. High performance motherboard, 7x24 continuous operation.
5. Support wall mounting, embedded and rackmount etc. apply to a wide range of industrial application.
6. With waterproof sealed wifi and ports. 1000 cd/m² with light sensor.
7. Cover 5MM glass to Anti-vandal. Sealed I/O with cable set included.
Specification
| Model:SC15A | |
| PC | |
| CPU | RK3288 Cortex-A17 quad core,1.8GHz |
| Memory | 2G , ( Max. 4G) |
| Storage | eMMC 16G |
| Decoding Resolution | Support maximum 2048*1536 |
| Operation System | Android 7.1 (Android 8.1 Optional) |
| Play Modes | Support timing, loop and spots etc. play modes |
| Network Support | RJ45, WIFI, (3G, 4G , TD-LTE Optional) |
| Image Format | JPG/BMP/GIF/TIFF/PNG |
| Video Format | RMVB,FLV,MPEG1/2/4, AVI, WMV, MOV, MP4, TS etc. |
| Audio Format | MP3,WMA,AAC,etc. |
| RTC Real Time Clock | YES |
| I/O Interfaces will design on the besde of screen | |
| USB | 2×USB |
| COM | Optional |
| LAN | 1×RJ45, 10M/100M adaptive ethernet |
| HDMI | 1×HDMI , support 1080p |
| DC | 1×DC |
| LCD panel | |
| Panel size | 15" |
| Resolution | 1024*768 |
| Aspect ratio | 4:3 |
| Support Color | 16.7M colors |
| Brightness | 1000 cd/m² |
| Response time | 5ms |
| Contrast ratio | 2500:1 |
| View angle | 88/88/88/88 (Typ.)(CR≥10) (L/R/U/D) |
| Touch panel | |
| Touchscreen Type | non touch (10 point capacitive touch/Resistive touch Optional) |
| Touch response time | <2ms |
| Luminousness | 90% |
| Surface Hardness | 7H |
| Working Life | >50 million times |
| Tempered glass | 3mm with Anti-Glare function foir sample(5mm for the mass order.) |
| Power Supply | |
| External Power Supply | AC 100 - 240V |
| Working voltage | DC 12V (9-36V wide voltage Optional) |
| Power consumption | ≤30W |
| Enclosure | |
| Material | Aluminum alloy + High strength cold rolled steel |
| Color | Black, white, Silver , color can be customized |
| VESA mounting | 100×100mm |
| IP grade | Full IP65 |
| Operating Environment | |
| Working temperature | -30 ~ 80 °C, Storage temperature: -40 ~ 85 °C |
| Relative humidity | <85% |
| Vibration resistance | 5-19Hz/1.0mm amplitude , 19-200Hz/1.0g acceleration |
| Impact resistance | 10g acceleration , 11ms period |
| Packing Details | |
| Net weight | 4.5 kg |
| Gross weight | 6.85 kg |
| Product Dimension | 38.39×30.84×5.62 cm |
| Packing size | 47×44×18 cm |
| Accessories | Power adapter,embedded screws,warranty card, user manual |
| Other | |
| Mounting (options) | 1) provide wall brackets for wall-mounting, VESA 100×100mm |
| 2) provide stable metal holder to support the monitor | |
| Customization | 3G,4G,Webcam, RFID reader etc. optioanal |
| Warranty | 1 year warranty |
