Place of Origin:
China
Brand Name:
Sihovision
Certification:
CE,FCC,RoHS
Model Number:
SC07
Video
Video
Video

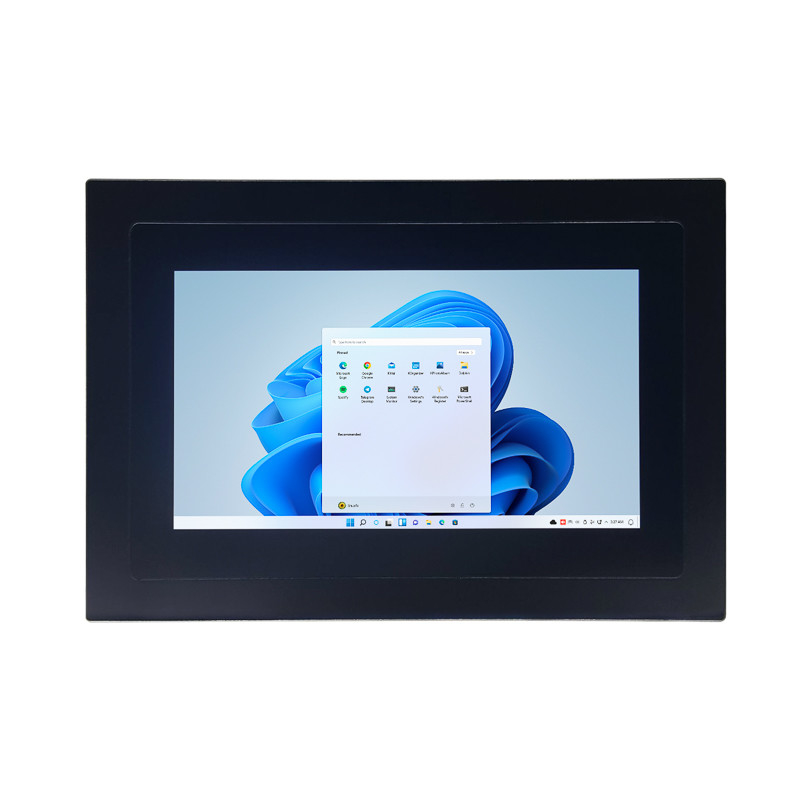

7 Inch Embedded Capacitive Touch PC 8GB 128GB Supports Windows 11
Features
1. Front bezel aluminum alloy brushed metal craft, seamless design, front panel IP65 waterproof.
2. Industrial LCD panel, wide viewing angle, high nits, true color.
3. Adopt a multi-point PCAP touch panel, high sensitive and fast-response.
4. High-performance motherboard, 7x24 continuous operation.
5. Ultra-thin front bezel 3mm, ideal for embedded mounting.
Specification
| Model:SC07 | |
| PC | |
| CPU | Intel Core I3-8130U, Dual core , Frequency 2.2GHz, Turbo Frequency: 3.4GHz |
| Memory | 8G DDR4 (16G, 32G Optional) |
| Hard Drive Capacity | 128G SSD |
| Hard Drive Optional | SSD: 64G,256GB,512GB |
| HDD: 500GB,1TB | |
| Graphics | Intel Ultra HD Graphics 620 |
| Audio | Realtek ALC662, High Definition Audio (HD), Line in, Line out |
| Network | 1×RJ45 |
| Wireless Network | WIFI Optional |
| I/O Interface | 2×USB 2.0,2×USB 3.0, 2 x COM RS232 |
| 1×VGA/HDMI/RJ45/Audio/POWER DC | |
| Operation System | Support Windows 10/11, Linux, Ubuntu, Debian etc. |
| LCD panel | |
| Panel size | 7" |
| Resolution | 1024*600 |
| Aspect ratio | 16:9 |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 400 nits |
| Response time | 5ms |
| Contrast ratio | 800:1 |
| View angle | 80°/80°/80°/80° (R/L/U/D) |
| Touch panel | |
| Touchscreen Type | Project Capacitive Touch (10 points) |
| Touch Interface | USB (RS232 optional) |
| Touch response time | 2ms |
| Luminousness | 90% |
| Surface Hardness | 7H |
| Working life | >50 million times |
| Touch options | ( 5 wire resistive touch, IR touch optional) |
| Power Supply | |
| External Power Supply | AC 100 - 240V |
| Working voltage | DC 12V |
| Power consumption | ≤35W |
| Enclosure | |
| Material | Aluminum Alloy |
| Color | Silver , Black, white, color can be customized |
| VESA mounting | 75×75mm/100×100mm |
| IP grade | Front panel IP65 waterproof |
| Operating Environment | |
| Temperature Range | operating: -20 to 70°C, storage :-30 to 80°C |
| Relative humidity | 5%~95% @ 40° C, non-condensing |
| Vibration | 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
| Packing Details | |
| Net weight | 2.2kg |
| Gross weight | 3kg |
| Product Dimension | TBD |
| Packing size | 40x30x20cm |
| Accessories | Power adapter,embedded screws,user manual,warranty card |
| Other | |
| Mounting (options) | embedded mounting screws |
| wall mounting brackets (optional) | |
| desk stand holder (optional) | |
| Warranty | 1 year warranty |
About us
Shenzhen Shinho Electronic Technology Co., Ltd is a leading provider of visual and interactive application solutions. We specialize in the design, development, manufacturing and marketing of Touchscreen Monitors and Panel PCs. Through many years of accumulation , our products and services extended gradually from initial industrial automation to commercial smart terminals, intelligent devices, human-machine interface etc.
Our main products include lcd touchscreen monitor, open frame lcd monitor , waterproof high brightness monitor , industrial panel PC , embedded touch panel PC, full IP65 panel PC , industrial tablet PC, self service KIOSK, advertising display etc. We provide our products and services on a worldwide basis, our products are widely used in Automation, SCADA , KIOSK , ATM, POS , Transportation, Medical, Gaming , Oil Gas & Energy , Military etc.
Our factory have advanced production equipment , professional R&D team and strong manufacturing capacity, and engineers and technicians account for the entire staff of 10%, to provide omnibearing service, professional technical support and prime quality products. OEM & ODM is warmly welcomed, customization is our specialty, provide fast and cost-effective sample, and support both small order and mass customization.
Our company have passed the ISO9001:2008 quality system authentication, all products receive CE, FCC, ROHS certifications, every product is checked at least 5 times before delivery, quality control chain from material incoming inspection through production to after-sales analysis, with excellent service and reliable quality , we have gained more and more trust and support from our client and friend of home and aboard. Sincerely hope to cooperate with you !
