Place of Origin:
Shenzhen, China
Brand Name:
Sihovision
Certification:
CE, FCC, RoHS
Model Number:
SL19
Rugged Stainless Steel Monitor with Full IP67 Waterproof and Wide Temperature Operation
Features
1. Stainless steel 304 material, Full IP67 waterproof
2. Industrial LCD panel, full view angle
3. 10 points capacitive touch screen with rounded corner design
4. EETI waterproof solution
5.The monitor is built with industrial-grade components, 7x24 continuous operation, wide temperature operation -20 °C ~ 70°C (-4°F ~158°F)
6. Optical bonding between touch screen and LCD
7. The front frame and rear shell are sealed with waterproof tape, and the machine can be disassembled for inspection and maintenance without affecting the waterproof performance.
Specification
LCD panel
| Panel size | 19" |
| Display active area | 376.32(W)x301.056(H) mm / 14.816x11.853 in |
| Resolution | 1280*1080 |
| Aspect ratio | 5:4 |
| Brightness (cd/m²) | 300 nits (1000 nits sunlight readable optional) |
| Brightness control | OSD |
| Contrast ratio | 1000:1 |
| View angle | 85°/85°/85°/85° (R/L/U/D) |
| Support Color | 16.7M |
| Backlight | WLED, 50K hours |
| Touch panel | |
| Touchscreen Type | Projected Capacitive Touch (up to 10 points ) |
| Surface Hardness | 7H |
| Surface treatment | Anti glare (chemical etching) |
| Luminousness | ≥80% |
| Touch controller IC | EETI 81 |
| Available touch drivers | Windows, Linux, Android, Mac, etc |
| Touch bonding | Optical bonding |
| Touch optional | Resistive touch, IR touch, Non touch Optional |
I/O Ports
| Video input | 1*IP67 HDMI |
| Touchscreen interface | 1*IP67 USB |
| Power connector | 1*IP67 DC9-36V |
| Working voltage | DC 9-36V |
| Power consumption | 13W |
| Power adapter | AC 100 ~ 240V input and DC +12V@5A MAX output, 60W |
Enclosure
| Material | Stainless steel 304 |
| Finish | Wire drawing |
| Color | Silver |
| Mounting | VESA mount 75/100mm |
| IP rating | Full IP67 waterproof |
| Cooling system | Passive - Fanless |
Operating Environment
| Temperature Range | Operating: -20 °C ~ 70°C (-4°F ~158°F) Storage: -30 °C~80°C (-22°F ~176°F) |
| Relative humidity | Up to 100% at all relevant temperatures, non-condensing |
| Vibration | GB/T 2423.10-2019 |
| Shock | GB2423.5 |
| EMC | Class B |
Other
| Product weight | Net weight 7.5kg Gross weight 10.5kg |
| Product Dimension | 453mm*378mm*52mm |
| Packing info | 1pcs/ctn 65×17×44cm 10.5kg 2pcs/ctn 65×32×44cm 21kg |
| Accessories | Power supply, Power plug, Waterproof USB touch cable, Waterproof HDMI cable |
| Warranty | 1 year warranty |
| Certificates | CE, FCC, RoHS |

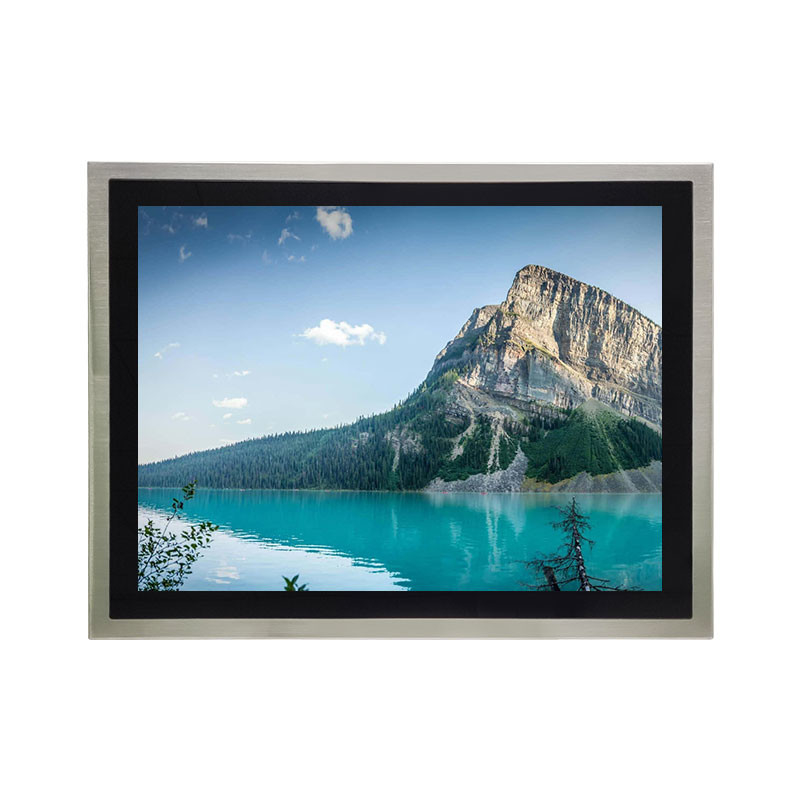

Product picture
Applications
Restaurant
Self-service kiosk
Gas station
Payment terminal machine
Vehicle
Bus stop
