Vertical Display Outdoor Touch Screen Monitor / Interactive Touch Screen Monitor

Vertical Display Outdoor Touch Screen Monitor / Interactive Touch Screen Monitor

interactive touch screen monitor

touch computer monitor

Place of Origin:

China

Brand Name:

Sihovision

Certification:

CE,FCC,RoHS

Model Number:

SL32

Contact Us
Request A Quote
Product Details
Product Name:
32 Inch Infrared Touchscreen Monitor
Material:
High Strength Cold Rolled Steel
Resolution:
1920*1080
Aspect Ratio:
16:9
View Angle:
89°/89°/89°/89° (R/L/U/D)
Touch Panel Type:
2-points Infrared Touch Panel
Signal Ports:
VGA,HDMI,DVI
Color:
White
Payment & Shipping Terms
Minimum Order Quantity
1 pcs
Price
negotiable
Payment Terms
L/C, D/A, D/P, T/T, Western Union,Paypal
Product Description

Vertical display white 32 inch infrared touchscreen monitor with VGA HDMI DVI



Features:
1. Light weight, use 1.2mm thick high quality metal case, inner structure with reinforcement design .
2. Industrial LCD panel, IPS full viewing angle, high nits, true color.
3. Multipoint infrared touch panel with waterproof and work well in direct sunlight.
4. Auto-adjust the brightness during the night, power saving.
5. High performance mainboard, 7x24 continuous operation.
6. Adopt HDMI 1.4 Digital decoding scheme, strong compatibility



Specification



Model:SL32
LCD panel
Panel size 32"
Resolution 1920*1080
Aspect ratio 16:9
Support Color 16.7M colors
Brightness 450cd/m² (1000cd/m² optional )
Contrast ratio 1400:1
View angle 89°/89°/89°/89° (R/L/U/D)
Touch panel
Touch panel type 2-points infrared touch panel ( 4-points , 6-points optional )
Tempered glass Thickness: 3mm, customizable
Mohs hardness: 6.5
Luminousness: up to 95%
Interface USB (RS232 optional)
Touch response time 5ms
Working Life >50 million times
Touch options PCAP touch optional
Signal Ports
HDMI 1×HDMI
VGA 1×VGA
DVI 1×DVI
Audio in/out 1×Audio in/out
AV optional
OSD
OSD control Brightness, contrast ratio, auto adjustment, H/V position, language select etc.
Support languages English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese etc.
Support OS Windows XP , Windwows /7/8/10 , Linux, Mac OS X, Android ect.
Power Supply
External Power Supply AC 100 - 240V
Working voltage DC 24V
Power consumption ≤50W
Enclosure
Material High strength cold rolled steel
Color Black, white, Silver , color can be customized
VESA mounting 200×200 mm
Operating Environment
Temperature Range operating: -10 to 60°C, storage :-20 to 80°C
Relative humidity operating: 10% to 90% , storage :5% to 90%
Packing Details
Net weight 18kg
Gross weight 20kg
Product Dimension 74.5×44×5.5cm
Packing size 99×64×18cm
Accessories Power adapter,HDMI/USB cables
Other
Mounting (options) 1) provide wall brackets for wall-mounting, VESA 200×200mm
2) provide stable metal holder to support the monitor
Warranty 1 year warranty
Certificates CE,FCC,RoHS

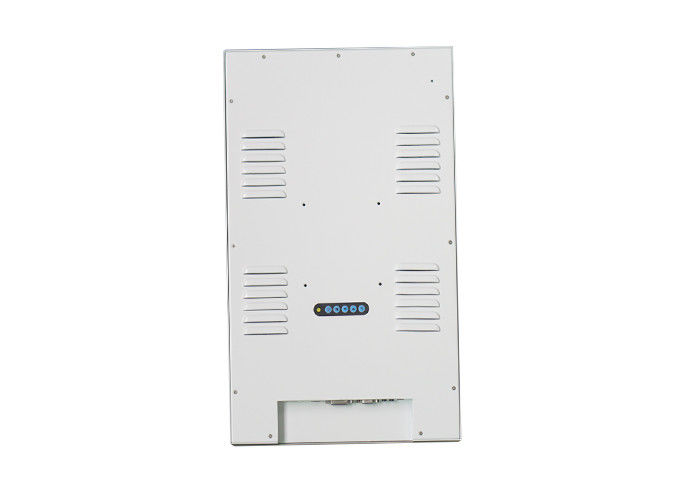

Vertical Display Outdoor Touch Screen Monitor / Interactive Touch Screen Monitor 0

Vertical Display Outdoor Touch Screen Monitor / Interactive Touch Screen Monitor 1

Vertical Display Outdoor Touch Screen Monitor / Interactive Touch Screen Monitor 2

Drawing

Vertical Display Outdoor Touch Screen Monitor / Interactive Touch Screen Monitor 3



Application:



petrol station ordering,semi outdoor advertising,self service kiosk...
