Place of Origin:
Shenzhen, China
Brand Name:
Sihovision
Certification:
CE, FCC, RoHS, ISO9001
Model Number:
SMR95000

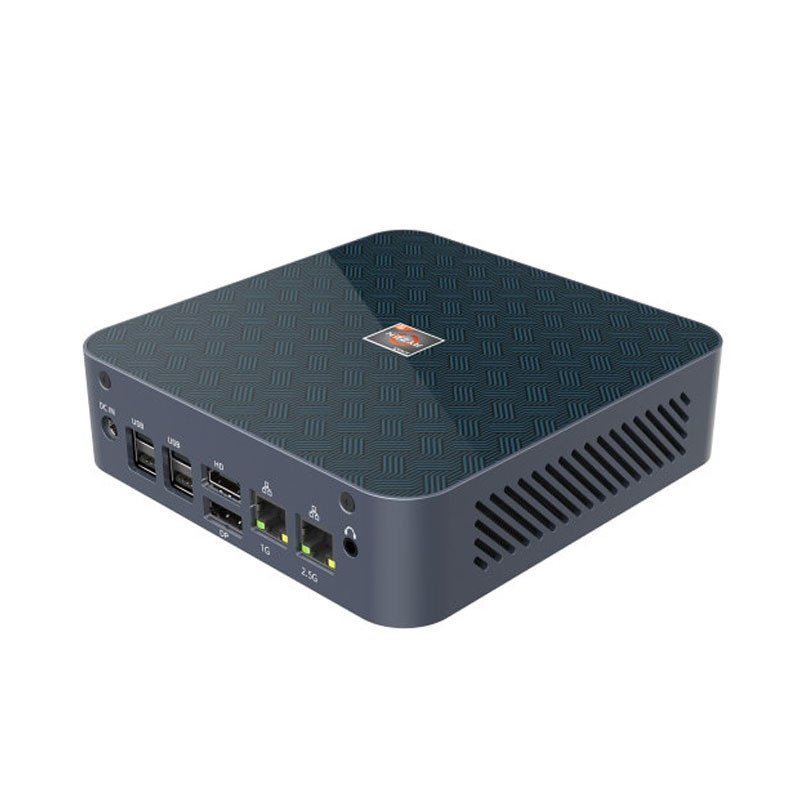

Newest AMD R9 5900HX 5900H Mini PC Win10 M.2 PCIE 4K Radeon Graphics AX WiFi6 Mini Computer
Processor parameter for referance only
1. 7nm AMD Ryzen 7 5800U 8 cores 16 threads 1.9GHz up to 4.4GHz 16MB cache TDP 15W Radeon™ Graphics 6 Core 2000MHz.
2. 7nm AMD Ryzen 9 5900H 8 cores 16 threads 3.3GHz up to 4.6GHz 16MB cache TDP 35W Radeon™ Graphics 6 Core 2100MHz.
3. 7nm AMD Ryzen 9 5900HX 8 cores 16 threads 3.3GHz up to 4.6GHz 16MB cache TDP 45W Radeon™ Graphics 8 Core 2100MHz.
Feature
- Onboard high-end AMD Ryzen 5000 series 7nm Processor with powerful computing performance.
- Onboard AMD Radeon™ VEGA Graphics with fast graphics processing capabilities for gaming and 3D design.
- Support HDMI2.0, DP1.4 and Type-C for 3x4K@60Hz video display synchronously and a synchronously.
- Support 2*M.2 2280 NVME/PCIE3.0x4/SATA SSD+1*2.5'' SATA HDD/SSD.
- Support 2.5G&1GDual RJ45 Lans+M.2 2230 2.4G/5G Dual band AC(AX) WiFi/BT.
- Onboard a powerful copper fan for heat dissipation, keep the computer stable working 7x24 hours.
- Support TPM 2.0, PXE, RTC, Wake on LAN, Auto power on etc.
Full featured Type-C
* USB 3.2 Gen. 2 data transfer at 10 Gbps
* Video output supports 4K 60Hz display
* 15W (5V @ 3A) USB power delivery / fast charging to quickly recharge your phone or power other peripherals, like a small monitor.
* You can power the S500+ by USB-C instead of the AC adapter (requires a 20V 5A USB-C power supply, not included)
-can connect an external video card using an M.2-to-PCIe adapter (not included).
| Model: SMR95000 | |
| PC | |
| CPU | AMD Ryzen R9 5900HX, R9 5900H, R7 5800U |
| Memory | 2* 260-PIN SO-DIMM SLOTS |
| Storage | M.2 2280 PCIE/NVMe/SSD + 2.5 inch HDD/SSD |
| Graphics | AMD Radeon Graphics Vega 7/Vega 8 |
| Operation System | Windows10/ Windows11/ ubuntu/ Linux |
| Network Support | WiFi 6+Bluetooth 5.2+Gigabit Ethernet port |
| I/O Interfaces | |
| USB 3.2 | 2*USB3.2 |
| USB 2.0 | 4*USB2.0 |
| Audio | 1*Audio |
| Type C | 1*Type C |
| DC | 1*DC |
| LAN | 2*RJ45 |
| DP | 1*DP |
| HD-MI | 1*HD-MI |
| Power Supply | |
| External Power Supply | AC 100~240V |
| Power consumption | 120W |
| Enclosure | |
| Material | Aluminum alloy |
| Color | Gray |
| Operating Environment | |
| Working temperature | -10°C to 70°C |
| Storage temperature | -30°C to 80°C |
| Relative humidity | 10-90% (npn-condensing) |
| Packing Details | |
| Weight | 2 kg |
| Product dimension | 149mm*145mm*40mm |
| Other | |
| Warranty | 1 year warranty |
Pictures
FAQ
Q1. What is the Minimum Order Quantity (MOQ)?
Re: We can sell one piece sample for your test.
Q2. What is the lead time of your products?
Re: Sample order within 3-7 business days . Bulk order within 3~15 business days ( depends on order qty) ,we will test the model to insure the quality before shipping.
Q3. How will you deliver my goods to me?
Re: We ship by air generally. In the meantime, we cooperate with international expresses such as DHL, UPS, FedEx, and TNT to enable our customers to get their goods rapidly.
