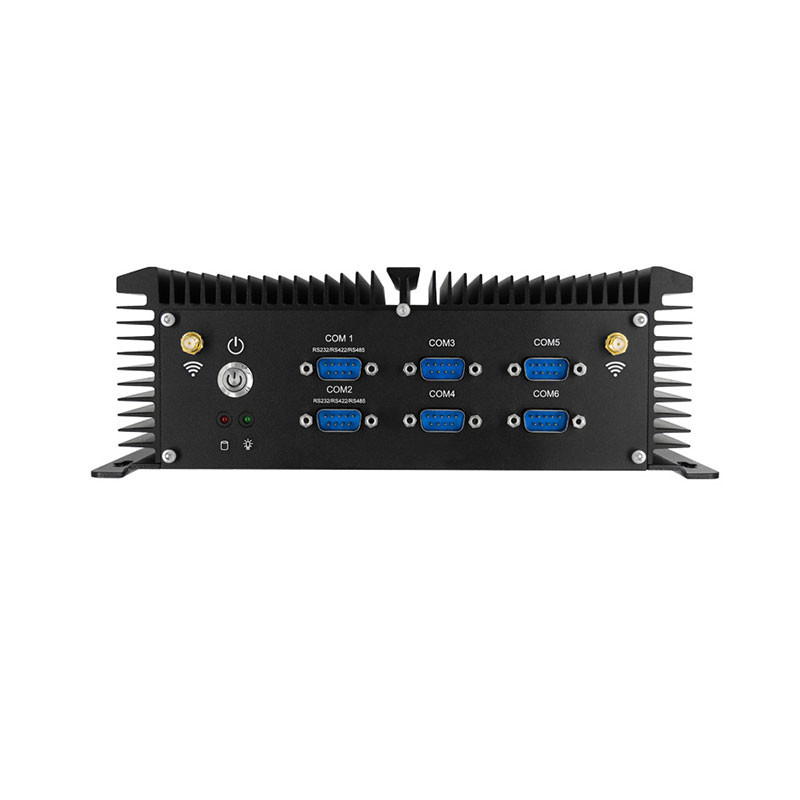

6 COM X86 Industrial Box Computer Intel Celeron J1900 Mini PC Embedded Computer
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xName | Embedded Box Pc | CPU | Intel Celeron J1900 |
---|---|---|---|
Memory | 4GB | Storage | 128GB SSD |
Dispaly Port | 1*VGA, 1*HDMI | Expand | 1*mini PCIE-half Port, 1*mini PCIE-full Port |
Functions | Watchdog, AWAL, RTC, WOL(ATX Mode) | Network | Intel I210/i211 Gigabit Network Connection |
Power Supply | 12V DC | Material | Aluminum Alloy |
High Light | 6 COM Industrial Box Computer,Celeron J1900 Industrial Box Computer,Aluminum alloy embedded mini pc |
6com x86 industrial box computer intel Celeron J1900 mini pc embedded computer
Quick Details
- Aluminum alloy design.
- Intel Celeron J1900.
- 2*inner RF cables and 2*external antennas
- 1*mini PCIE-half port, 1*mini PCIE-full port
- 1*2pin phoenix terminal power block DC In
- Support OS: Windows 8/10, WES 10, LINUX
Pictures
Model: SM709 | |
PC | |
CPU | Intel Celeron J1900 |
Memory | 4GB |
Storage | 1*MSATA,1*SATA3.0 |
Operation System | Windows 8/10, WES 10, LINUX |
Network Support | Intel i210/i211 Gigabit Network Connection |
Video | Intel HD Graphics |
Audio | Realtek ALC662 @ Intel Bay Trail SoC - HD Audio Controller |
Mini PCIE | 1*mini PCIE-half port, 1*mini PCIE-full port |
Antenna | 2*inner RF cables and 2*external antennas |
Functions | Watchdog, AWAL, RTC, WOL(ATX mode) |
I/O Interfaces | |
USB | 4*USB3.0, 4*USB2.0 |
Display | 1*VGA, 1*HDMI |
LAN | 2*RJ45 GBE LAN |
COM | 6* COM |
Audio | 1*MIC, 1*SPK |
Power Supply | |
External Power Supply | AC 100 - 240V 50-60Hz |
Working voltage | 12V DC |
Enclosure | |
Material | Aluminum alloy |
Color | Black |
Operating Environment | |
Working temperature | -20°C to 60°C |
Storage temperature | -30°C to 70°C |
Relative humidity | 10-90% (npn-condensing) |
Packing Details | |
Net weight | 1.3 kg |
Gross weight | 3.5 kg |
Product dimension | 150*83*248mm |
Other | |
Mounting | 4 mounting holes on case |
Warranty | 1 year warranty |
FAQ
Q1: What is the Warranty for your pc?
A1: For the pc, we have 1 years warranty.
Q2: How to do if any quality problems on your side in the warranty time?
A2: First, take pictures or videos as proof and send to us. We will replace new ones for free or Returned to our factory for free maintenance.
Q3: Are you a manufacturer?
A3: Yes, we are ODM and OEM and we have our own factory and professional engineers to meet your any requirements. Welcome to visit our factory.
Q4: What kind of payment do you support?
A4: T/T West union paypal.
Q5: Can we get support if we have our own market position?
A5: Please inform us your detailed market demand,we will discuss and propose helpful suggestion for you,to find the best solution for you.
Q6: Is there any cheap shipping cost to import to our country?
A6:Cheaper Express: Postal parcel for small samples Faster
Express: DHL TNT UPS by air for samples and middle order
Reasonable Express: delivery by sea for large order
Q7: How many days will samples be finished? And how about the mass production?
A7: Generally 3-5Working days after payment for samples. The leading time of mass production will depend on the quantity.
