Place of Origin:
Shenzhen , China
Brand Name:
Shinho
Certification:
CE , FCC , RoHs
Model Number:
SL215-WSIP66

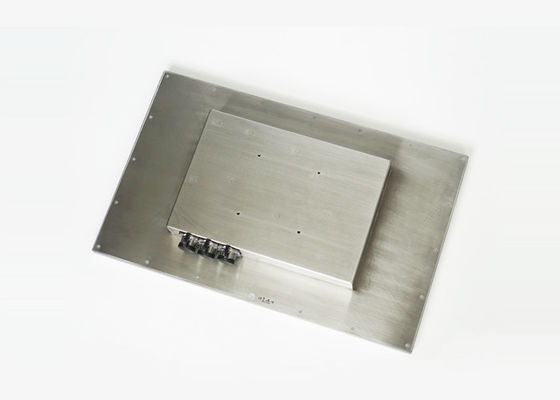

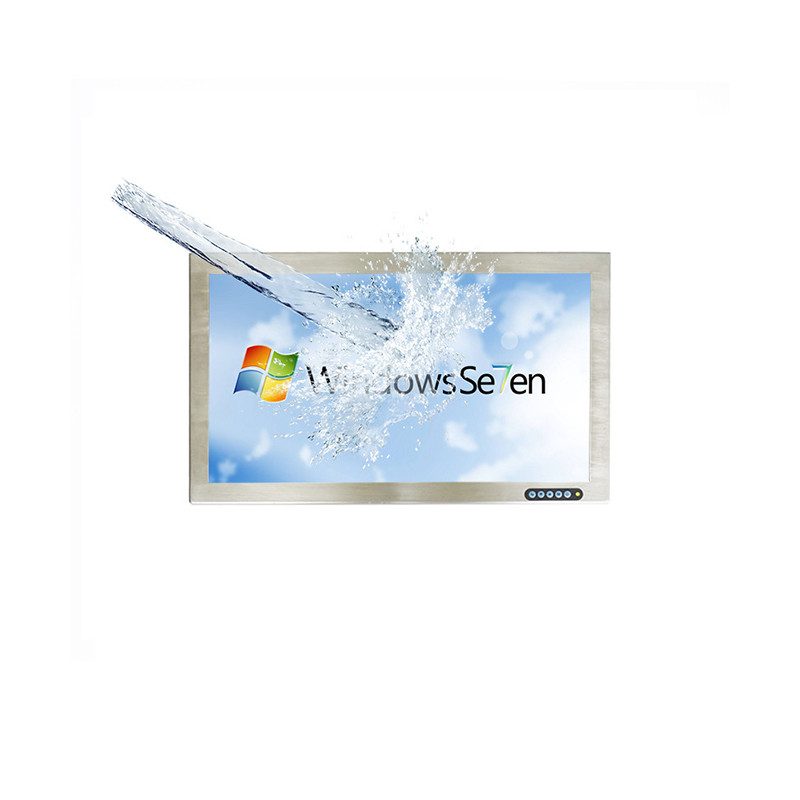

1000 Nits Sunlight Readable Full IP66 Waterproof Stainless Steel Monitor For Outdoor Application
Features:
1. Full IP66 sealed stainless steel enclosure.
2. Support media player by USB stick and controlled by remote.
2. Industrial LCD panel, wide viewing angle, true color.
4. Brightness upto 1000 nits, sunlight readable.
5. Covered with 3mm AF glass, anti-fogging, anti-fingerprint.
6. High performance motherboard, 7x24 continuous operation.
Applications
Outdoor kiosk
Food & beverage processing
Marine/Sailing boat/Ship
Chemical manufacturing,
Consumer packaged goods industries
Process control systems
Indoor humid environment
meat/poultry processing
More pictures
Drawing
Specification
| Model: SL215-WSIP66 | |
| LCD panel | |
| Panel size | 21.5" |
| Resolution | 1920*1080 |
| Aspect ratio | 16:9 |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 1000 nits, sunlight readable |
| Contrast ratio | 1000:1 |
| View angle | 80°/80°/80°/80° (R/L/U/D) |
| Customization | Covered 3mm Anti-fogging glass |
| Signal Ports | |
| VGA | 1x VGA |
| DVI | 1x DVI |
| HDMI | optional |
| Audio in/out | optional |
| OSD in the front bezel | |
| OSD control | Brightness, contrast ratio, auto adjustment, H/V position, language select, etc. |
| Support languages | English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese, etc. |
| Support OS | Windows XP, Windows /7/8/10, Linux, Mac OS X, Android, ect. |
| Power Supply | |
| External Power Supply | AC 100 - 240V, 50-60Hz |
| Working voltage | DC 12V |
| Power consumption | ≤35W |
| Enclosure | |
| Material | Stainless steel 304 |
| Color | Silver |
| VESA mounting | 100x100mm |
| IP grade | Full IP66 |
| Operating Environment | |
| Temperature Range | operating: -20 to 65°C, storage: -20 to 65°C |
| Relative humidity | operating: 10% to 80%, storage: 5% to 90% |
| Packing Details | |
| Net weight | 7KG |
| Gross weight | 10KG |
| Product Dimension | 53.16*32.82*5.74cm |
| Packing size | 74x45x19 cm |
| Accessories | IP66 waterproof Power adapter, waterproof VGA and DVI cables, remote control |
| Other | |
| Customization | Built-in media player by USB stick, controlled by remote |
| Mounting | VESA mounting |
| embedded mounting screws (optional) | |
| desk stand holder (optional) | |
| Warranty | 3-years warranty |
| Certificates | CE, FCC, RoHS |
Attention of warranty
1. First-year warranty: by free
2. 2nd to 3rd-year warranty: maintaining by some charges.
