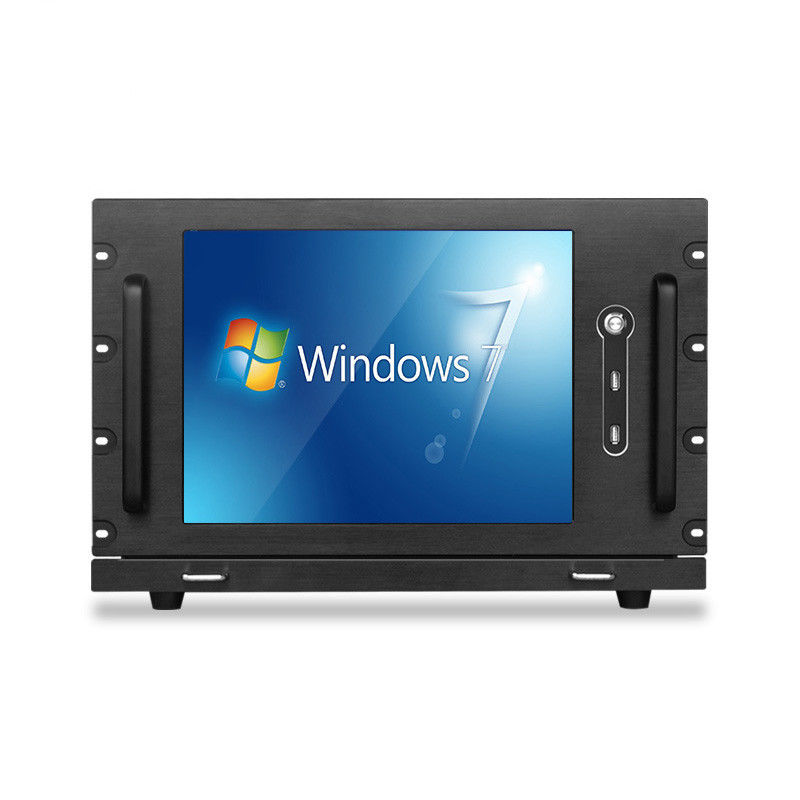

6U 15 Inch RS232 80W Rack Mount Industrial Computer With Keyboard
  • Name
  • Name
  • Name

6U 15 Inch RS232 80W Rack Mount Industrial Computer With Keyboard

Brand Name: Sihovision
Model Number: SC15
MOQ: 1 Piece
Price: Negotiable
Payment Terms: T/T , Paypal , L/C, D/A , D/P, Western Union, MoneyGram
Detail Information
Product Description
Detail Information
Place of Origin:
Shenzhen , China
Certification:
CE , FCC , RoHS
Product Name:
6U Industrial Control Server Computer
CPU:
Intel H61, 2.6 GHz
RAM:
4G DDR4
Hard Disk:
1tb
Touchscreen Type:
Resistive Touch
Resolution:
1024*768
Highlight:

80W Rack Mount Industrial Computer

,

RS232 Rack Mount Industrial Computer

,

6U Industrial Control Server Computer

Product Description

Feature

1. 6U full metal enclosure.
2. High performance motherboard, 7x24 continuous operation.
3. Pull-out work area, including keyboard and touchpad.
4. Smart temperature control system, Splendid heat radiation.
5. 15 inch LED display, 1024*768 pixels, 5ms response.
6. Resistive touch screen.
7. Compatible Windows 7/8/10, Linux.
Specification

Model:SC15
PC
CPUH61, 2.6 GHz
ChipsetIntel NM81
Memory4G DDR3
Hard Drive Capacity1TB HDD
Network1×Realtek RTL 8111E Gigabit Ethernet controller
I/O Interface2×USB 2.0, 2×USB 3.0, 1 x COM, 1×VGA/RJ45/Audio OUT/MIC IN/LPT/PS/2
Operation SystemSupport Windows 7/8/10, Linux, Ubuntu, Debian etc.
LCD panel
Panel size12.1", 15", 17", 19"
Resolution1024*768
Aspect ratio4:03
Support Color16.7M colors
Brightness (cd/m²)300 cd/ m2
Response time5ms
Contrast ratio1000:01:00
View angle80°/80°/80°/80° (R/L/U/D)
Touch panel
Touchscreen Type5 wire resistive touch
Touch InterfaceUSB (RS232 optional)
Touch response time<8ms
Luminousness90%
Surface Hardness3H
Working Life>35 million times
Touch options(capacitive, IR ,SAW touch optional)
Power Supply
External Power SupplyAC 110 - 240V
Power consumption≤80W
Enclosure
MaterialHigh strength cold rolled steel
ColorBlack
Operating Environment
Temperature Rangeoperating: -10 to 60°C, storage :-20 to 80°C
Relative humidity5%~95% @ 40° C, non-condensing
Vibration5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
Other
Warranty1 year warranty



More Pictures
6U 15 Inch RS232 80W Rack Mount Industrial Computer With Keyboard 06U 15 Inch RS232 80W Rack Mount Industrial Computer With Keyboard 16U 15 Inch RS232 80W Rack Mount Industrial Computer With Keyboard 26U 15 Inch RS232 80W Rack Mount Industrial Computer With Keyboard 36U 15 Inch RS232 80W Rack Mount Industrial Computer With Keyboard 46U 15 Inch RS232 80W Rack Mount Industrial Computer With Keyboard 56U 15 Inch RS232 80W Rack Mount Industrial Computer With Keyboard 6
Welcome to send inquiry, we also have other sizes.
