Place of Origin:
Shenzhen , China
Brand Name:
Shinho
Certification:
CE , FCC , RoHS
Model Number:
SC15A

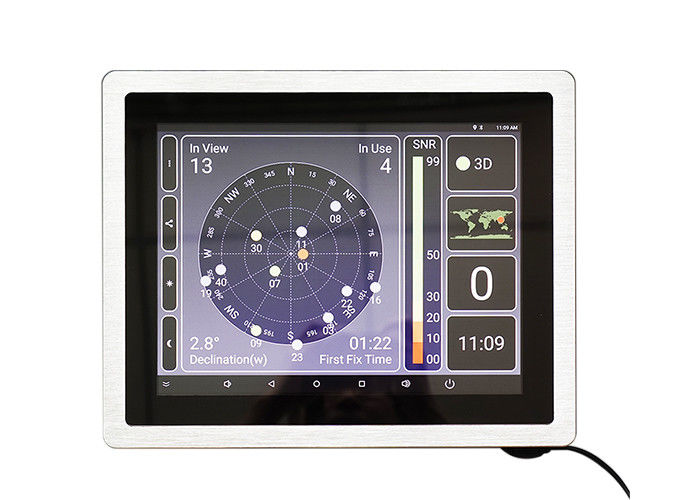

15 Industrial Android Tablet PC With GPS and 1000 Nit, Sunlight readable
Features:
1. 15” TFT LCD panel with Projected Capacitive touchscreen (10 points).
2. Brightness upto 1000 nits.
3. Support timing, loop and spots etc. play modes.
4. Wide range viewing angle: 80°/80°/80°/80° (R/L/U/D).
5. Front panel is IP65 waterproof and dustproof.
6. CPU is RK3288, supported OS is Android 5.1, RK3188 optional.
Application:
It is ideal for applications such as law enforcement, pharmaceutical, utiilities, government, security, defense, public sector, industrial, warehouse, logistics, hospitality, retail management and some other outdoor place.
Customization module can be made:
Panel size, IP grade (IP65/67/68/69), Built- in camera, 3G/4G Module, RFID reader, Fingerprint,
Dimension, Built-in Battery, Barcode scanner, Mounting type, speaker and material ....etc.
Specification
| Model:SC15A | |
| PC | |
| CPU | RK3288 Cortex-A17 quad core,1.8GHz |
| Memory | 2G , ( Max. 4G) |
| Storage | eMMC 8G , ( Max. 16G) |
| Decoding Resolution | Support maximum 2048*1536 |
| Operation System | Android 5.1 |
| Play Modes | Support timing, loop and spots etc. play modes |
| Network Support | RJ45, WIFI, 3G, 4G , TD-LTE (optional) |
| Image Format | JPG/BMP/GIF/TIFF/PNG |
| Video Format | RMVB,FLV,MPEG1/2/4, AVI, WMV, MOV, MP4, TS etc. |
| Audio Format | MP3,WMA,AAC,etc. |
| RTC Real Time Clock | YES |
| GPS module | G-MOUSE |
| I/O Interfaces | |
| USB | 2×USB ( up to 5 ) |
| COM | 2×COM |
| LAN | 1×RJ45, 10M/100M adaptive ethernet |
| HDMI | 1×HDMI , support 1080p |
| DC | 1×DC |
| Card Slot | 1×TF |
| LCD panel | |
| Panel size | 15" |
| Resolution | 1024*768 |
| Aspect ratio | 4:3 |
| Support Color | 16.7M colors |
| Brightness | 1000 cd/m²,sunlight readable |
| Response time | 5ms |
| Contrast ratio | 1000:1 |
| View angle | 80°/80°/80°/80° (R/L/U/D) |
| Touch panel | |
| Touchscreen Type | 10 point capacitive touch |
| Touch response time | <2ms |
| Luminousness | 90% |
| Surface Hardness | 7H |
| Working Life | >50 million times |
| Power Supply | |
| External Power Supply | AC 100 - 240V |
| Working voltage | DC 12V |
| Power consumption | ≤45W |
| Enclosure | |
| Appearance | Flat panel |
| Material | Aluminum alloy |
| Color | Black, white, Silver , color can be customized |
| VESA mounting | 75×75mm/100×100mm |
| IP grade | front panel IP65 |
| Operating Environment | |
| Working temperature | -10°C to 55°C |
| Relative humidity | <85% |
| Vibration resistance | 5-19Hz/1.0mm amplitude , 19-200Hz/1.0g acceleration |
| Impact resistance | 10g acceleration , 11ms period |
| Packing Details | |
| Net weight | 3.5 kg |
| Gross weight | 5.5 kg |
| Product Dimension | 38×30×5.97 cm |
| Packing size | 47×44×18 cm |
| Accessories | Power adapter,embedded screws,warranty card, user manual |
| Other | |
| Mounting (options) | 1) provide wall brackets for wall-mounting, VESA 100×100mm |
| 2) provide stable metal holder to support the monitor | |
| Customization | 3G,4G,Webcam, RFID reader etc. optioanal |
| Warranty | 3 years warranty |
Attention of warranty
1. First year warranty: by free
2. 2nd to 3rd year warranty: maintaining by some charges.
