DC 12V Resistive Touch Monitor 1024 X 768 Resolution With Membrane Switch

Place of Origin Shenzhen, China
Brand Name Shinho
Certification CE, FCC, RoHS
Model Number SL08
Minimum Order Quantity 1 piece
Price Negotiation
Packaging Details 1 piece/gift box weight :2kg gift box size:38*30*14 cm
Payment Terms T/T,Paypal,L/C, D/A, D/P, Western Union, MoneyGram,

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Panel Size 8'' Resolution 1024*768
Touchscreen Type 4 Wire Resistive Touch Working Voltage DC 12v
Inputs VGA ( DVI , HDMI Optional) Working Environment Suitable For Various Kinds Of Severe Environment
High Light

5 wire resistive touch screen

,

resistive touch screen monitor

,

1024 X 768 Resistive Touch Monitor

Leave a Message
Product Description

8 Inch 1024*768 Resolution Resistive Touch Monitor With Membrane Switch




Features



1. Panel size: 8 inch,1024*768 high resolution.



2. Robust and durable Brushed aluminum alloy bezel,Beautiful appearance.


3. Industrial LCD panel, wide viewing angle, high nits, true color.


4. Adopt 5 wire resistive touch panel , stable, durable, anti-interference.


5. High performance mainboard, 7x24 continuous operation.


6. Phoenix terminal with 12V DC. (24V DC optional.)



7. Suitable for various kinds of severe environment.







8 Inch Resistive Touch Monitor Applications



telecom



electric power



multi-media



industrial automation device



CNC machine



sports lotteries



manufacturing industry



SCADA HMI





Customization Service



1. Capacitive touch,infrared touch



2. 1000 nits,sunlight readable.



3. Auto dimming.



4. 24V power with Phoenix terminal.



5. Full IP65 waterproof monitor.



6.COM RS232 for touch.



7. HDMI,DVI,AV,BNC.



8. Material : all monitor with aluminium alloy /stainless steel







Specification





Model:SL08
LCD panel
Panel size 8"
Resolution 1024*768
Aspect ratio 4:3
Support Color 16.7M colors
Brightness (cd/m²) 300 nits
Contrast ratio 700:1
View angle 80°/80°/80°/80° (R/L/U/D)
Touch panel
Touchscreen Type 4 wire resistive touch
Touch Interface USB (RS232 optional)
Touch response time <8ms
Luminousness 75-85%
Surface Hardness 3H
Working Life >35 million times
Touch options ( PCAP touch optional)
Singal Ports
VGA 1×VGA
HDMI optional
DVI optional
AV optional
Audio in/out optional
OSD
OSD control Brightness, contrast ratio, auto adjustment, H/V position, language select etc.
Support languages English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese etc.
Support OS Windows XP , Windwows /7/8/10 , Linux, Mac OS X, Android ect.
Power Supply
External Power Supply AC 100 - 240V
Working voltage DC 12V
Power consumption 15 W
Enclosure
Material aluminium alloy front bezel +High strength cold rolled steel back case
Color Black, white, Silver , color can be customized
VESA mounting 75×75/ mm
Operating Environment
Temperature Range operating: -10 to 60°C, storage :-20 to 80°C
Relative humidity operating: 10% to 90% , storage :5% to 90%
Packing Details
Net weight 1.5kg
Gross weight 2kg
Product Dimension 21.8x17.5x3cm
Packing size 38*30*14 cm
Accessories Power adapter, VGA/USB cable,Embedded screws
Other
Mounting (options) 1) provide wall brackets for wall-mounting, VESA 75×75 mm
2) provide stable metal holder to support the monitor
Warranty 1 year warranty





Pictures

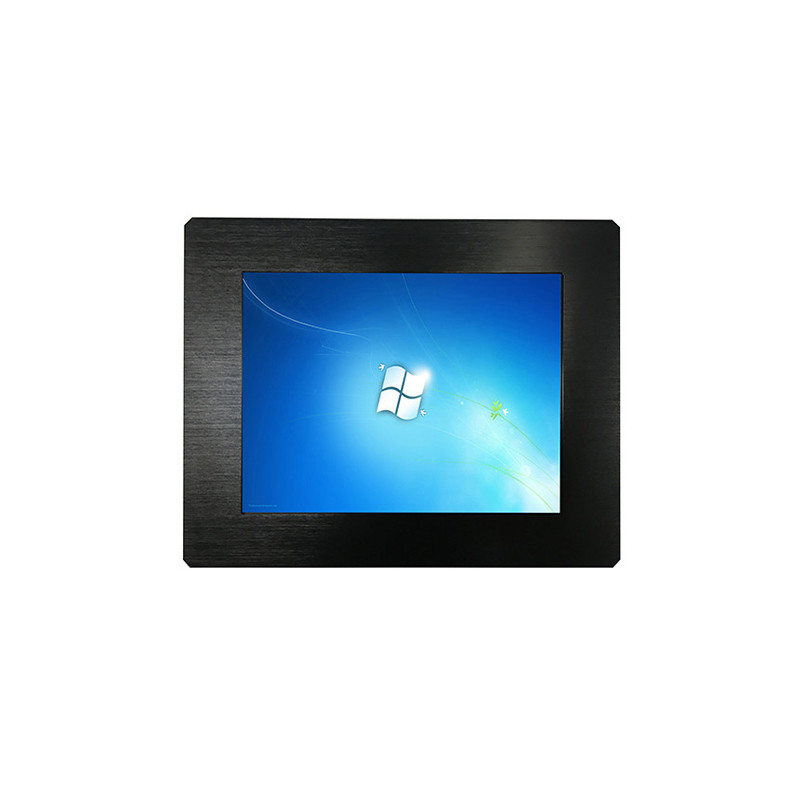

DC 12V Resistive Touch Monitor 1024 X 768 Resolution With Membrane Switch 0

DC 12V Resistive Touch Monitor 1024 X 768 Resolution With Membrane Switch 1





Drawing



DC 12V Resistive Touch Monitor 1024 X 768 Resolution With Membrane Switch 2
