Place of Origin:
CHINA
Brand Name:
Sihovision
Certification:
CE, FCC, RoHS
Model Number:
SC101A

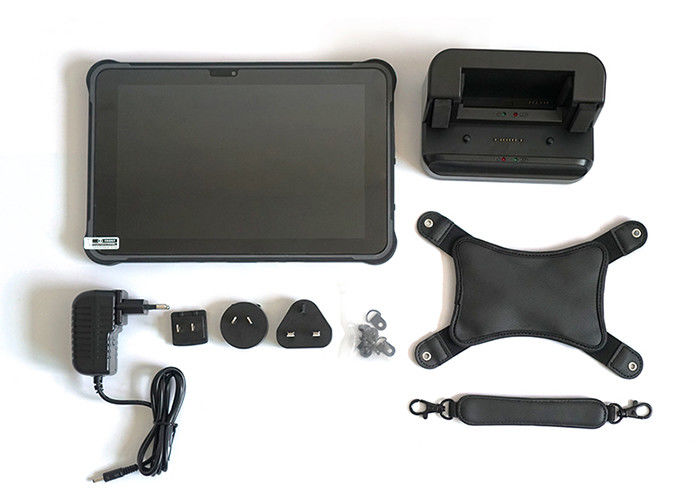

10 Inch 10500mAh IP65 MT6771 4GB 64GB Rugged android tablet GPS NXP NFC
Features:
Specification
| Model:SC101A | |
| PC | |
| CPU | MT6771 MTK Helio P60, 4 cortex-A73 2.0GHz, 4 cortex-A53 2.0GHz |
| RAM/ROM | 4GB+64GB |
| Camera | 5M/13M, flash |
| Power and battery | battery total capacity 10500mAh(8400mAh,hotswap, 2100mAh backup power) |
| 3.5*1.35mm, 5V 3A DC in put(Magnetic charger) | |
| WWAN | 4G LTE, 3G WCDMA, GSM |
| 4G Fre: FDD: B1,B2, B3,B5, B7, B8, B12, B20 TDD: B38,B39,B40,B41 B34 WCDMA:B1, B8 TD-SCDMA: B34, B39 | |
| GPS(baidou,GPS, glonass) | Support :GLONASS,QZSS,GPS; Capture sensitivity: -160 dBm；Cool Start Time: |
| <30second,Hot start time:<28seconds,frequency:0.25 Hz … 10 MHz (configurable) | |
| WIFI | 802.11a b c, g,n wireless internet Wireless AP ( Mobile AP )2.4G, 5G |
| Bluetooth | 4.0 version |
| NFC | 13.56 MHz, distance 5cm or above |
| Speaker | 1.5 watt |
| Sensor | 1. light sensor 2. compass 3. gravity 4. acceleration 5. baroceptor |
| Multi-media (Hardware decoding) | Photo Viewer(BMP, JPG, GIF, PNG) |
| Video Format(MEPG 1/2/4,H.263/H.264,RMVB,WMV/VC -1,MVC,AVS,MJPEG. (UP TO 1080P)) | |
| Audio Format(MP3,WMA,WAV,OGG,FLAC,ALAC,A PE,AAC,AC-3,DTS (need license)) | |
| Operation System | Android 9.0 |
| Language | multi language |
| LCD panel | |
| Panel size | 10.1" |
| Resolution | 1920*1200 |
| Aspect ratio | 16:10 |
| Brightness (cd/m²) | 500 nits sunshine readable |
| Touchscreen Type | 10 point touch, support stylus |
| Power Supply | |
| External Power Supply | AC 100 - 240V, 50Hz/60Hz |
| Output | DC 5V/3A |
| Others | |
| Interface in/out port | 1. normal USB*1 2. Micro USB*1 3. RJ45*1 4. bottom pogopin*1, USB and serial 5. back pogopin*1 6. DC*1 3.5*1.35 7. microphone+earphone 8. RS232*1 |
| Pogopin definition | 1.16pin back of cover, include (1USB, 1 RS232, 1 UART, 3.3V, 5V OUT) 2. 8pin in bottom； (1USB, 1 RS232, 1 UART, ) |
| Button | V+ -, Power, P, F, H |
| 2D barcode module | honeywell N3680 optional |
| UHF | reading and write distance 1meter to 10 meter optional |
| Fingerprint module | LD-8800-M optional |
| Proof rate | 1. water proof IP65 2. Drapping proof 1.2 meter |
| Enclosure | |
| Material | ABS and PC |
| Color | Silver or Black can be customized |
| Operating Environment | |
| Temperature Range | operating: -20°C to 60°C, storage :-35°C to 80°C |
| Relative humidity | 95% non-condensing |
| Vibration | 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
| Packing Details | |
| Net weight | 0.95kg |
| Gross weight | 2kg |
| Product Dimension | 275*178*18mm |
| Packing size | 410x250x40mm |
| Standard accessories in gift box | 1. USB cable 2. charger( 4-in-1) 3. handstrap 4. handstring 5. white box, no logo |
| Optional accessories | 1. car docking 2. extra battery 3. screen protective film 4. car holder 5. docking station 6. car charger |
| Other | |
| Certification | 810G,CE,FCC |
| Warranty | 1 year warranty |
