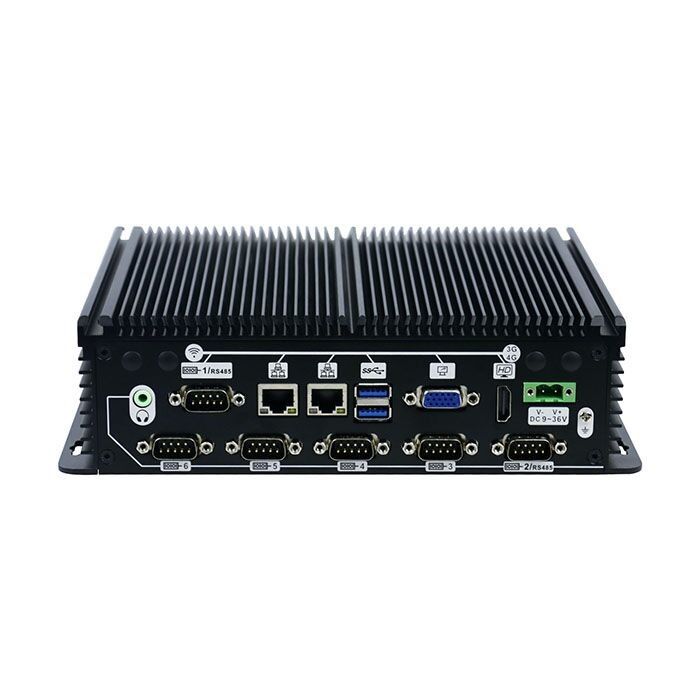

4G DDR3 Industrial Mini PC

Brand Name:	SHINHO
Model Number:	SM702
MOQ:	1 piece
Price:	Negotiable
Payment Terms:	T/T, Western Union, , Paypal

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China(Mainland)

Certification:

CE, FCC, RoHS

Product Name:

Industrial Mini PC

Color:

Grey

Material:

Aluminum Alloy

Wide Voltage:

9-36V

COM Port:

Support RS232/RS422/RS485

OS:

Win7/8/10, Linux And Etc

Optional:

WIFI, Bluetooth, 10COM And Etc

Warranty:

12months

Highlight:

industrial embedded computer

industrial fanless mini pc

4G DDR3 Industrial Mini PC

Product Description

Wide Voltage 9V-36V Industrial Mini PC Support RS232/RS422/RS485

Features

1. Aluminium Alloy fully designed.

2. 6*COM Port, support RS232/RS422/RS485.

3. 1*2PIN and 4PIN Phoenix terminal.

4. Wide Voltage 9V-36V.
5. Optional: 10COM port, WIFI, Bluetooth, 3G/4G and etc.

Specification

Model:SM702
CPU	Intel® Celeron J1900, Quad core, Quad threads, 1.99GHz 10W
Memory	4G DDR3
SSD	32GB
BIOS	64MB SPI FALSH
Graphics	Integrated Intel HD Graphics
I/O Interface	1USB 3.0, 5USB2.0, 6COM(COM1 and COM2 support RS232/ RS422/RS485 mode), 21000M LAN, 10LED indicator, 1VGA/HDMI/LVDS/Power switch/2PIN and 4PIN Phoenix terminal DC 9-36V
Optional	1MINI PCIE(WIFI or Bluetooth), 1MINI PCIE(3G/4G), With SIM Card Slot, 1PCIE 4X Slot, 10COM Port, GPIO Port
Network	2*Intel 82583V 10/100/1000M
Storage	2SATA3.0, 1MSATA
OS	Win7/8/10, Linux and etc
Color	Grey
Material	Aluminium Alloy
Power supply	DC 9-36V DC, Support positive and negative opposite protection
Temperature Range	-10 to 60°C
Relative humidity	0%~95%, non-condensing
Net weight	1.6kgs
Gross weight	2.1kgs
Product Dimension	23.4×17.5×6.45cm
Warranty	1 year warranty
Certificates	CE, FCC, RoHS

Application

Police Car

Steel Factory

Power Station

Electronics Factory

Self-service ticket checking machine

Road traffic monitoring system

Intelligent logistics sorting system
