Rugged Resistive Touch Monitor 8" LCD 1000 Nits Sunlight Readable HDMI Input
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Rugged LCD Monitor 8" | Resolution | 1024*768 4:3 |
|---|---|---|---|
| IP Grade | Front IP67 Waterproof | Brigtness | 1000 Nits Sunlight Readable |
| Voltage | 12-24V Wide Voltage | Touch Type | Resistive Touch Screen |
| Light Adjustment | Buttons, Light Sensor | Signal Port | HDMI VGA Input |
| High Light | touch screen display monitor,resistive touch screen monitor,8" LCD 1000 Nits Resistive Touch Monitor |
||
Product Description
Rugged Resistive Touch Screen Monitor 8" LCD 1000 Nits Sunlight Readable HDMI Input
Features
This 8 inch LCD monitor comes with 4 wire resistive touch screen. It's high brightness 1000 nits sunlight readable, which means you can see the screen clearly even in direct strong sunlight. We add a light sensor on the front bezel. It will reduce brightness automatically when it's dark. It won't hurt eyes, and at the same energy saving and longer the monitor's life span. If you don't need the light sensor, you can turn it off, and adjust brightness manually by buttons on front bezel. The front panel is fully sealed, IP67 rate waterproof. It's quite suitable for outdoor application. We choose wide temperature industrial grade LCD panel. No worries even the temperature is very high in your country. There is both HDMI and VGA input on this monitor.
Specification
|
Model: SL08 |
|
|
LCD panel |
|
|
Panel size |
8" |
|
Resolution |
1024*768 |
|
Aspect ratio |
4:3 |
|
Support Color |
16.7M colors |
|
Brightness (cd/m²) |
1000 nits sunlight readable, with light sensor for auto dimming |
|
Contrast ratio |
800:1 |
|
View angle |
80°/80°/80°/80° (R/L/U/D) |
|
Touch panel |
|
|
Touchscreen Type |
4 wires restive touch |
|
Surface Hardness |
3H |
|
Luminousness |
90% |
|
Touch Interface |
USB (RS232 optional) |
|
Touch response time |
2ms |
|
Working Life |
>35 million times |
|
Touch options |
(10 points Project Capacitive Touch, IR touch optional) |
|
Signal Ports |
|
|
VGA |
1x VGA |
|
HDMI |
1x HDMI |
|
Audio in/out |
Optional |
|
OSD |
|
|
OSD control |
Brightness, contrast ratio, auto adjustment, H/V position, language select, etc. |
|
Support languages |
English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese etc. |
|
Support OS |
Windows XP, Windows /7/8/10, Linux, Mac OS X, Android, ect. |
|
Power Supply |
|
|
External Power Supply |
AC 100 - 240V, 50-60Hz |
|
Working voltage |
DC 12V |
|
Power consumption |
≤35W |
|
Enclosure |
|
|
Material |
Aluminium alloy bezel + High strength cold rolled steel back case |
|
Color |
Black, white, Silver, color can be customized |
|
VESA mounting |
75x75mm |
|
IP grade |
Front panel IP67 waterproof |
|
Operating Environment |
|
|
Temperature Range |
Operating: -20 to 70°C, storage: -30 to 80°C |
|
Relative humidity |
Operating: 10% to 80%, storage: 5% to 90% |
|
Packing Details |
|
|
Net weight |
1.5kg |
|
Gross weight |
2kg |
|
Product Dimension |
22.3x18x3.3cm |
|
Packing size |
33x30x10cm |
|
Accessories |
Power adapter, USB touch cable, HDMI/VGA cable, embedded screws |
|
Other |
|
|
|
Embedded mounting |
|
mounting |
Wall mounting brackets (optional) |
|
Desk stand holder (optional) |
|
|
Warranty |
1 year warranty |
|
Certificates |
CE, FCC, RoHS |
Application
Testing equipment
Water dispenser machine
Factory automation
Electric car charging station
Parking management system
Golf ball dispenser machine
Self service machine
Reverse vending machine
Gas station
Agricultural automation

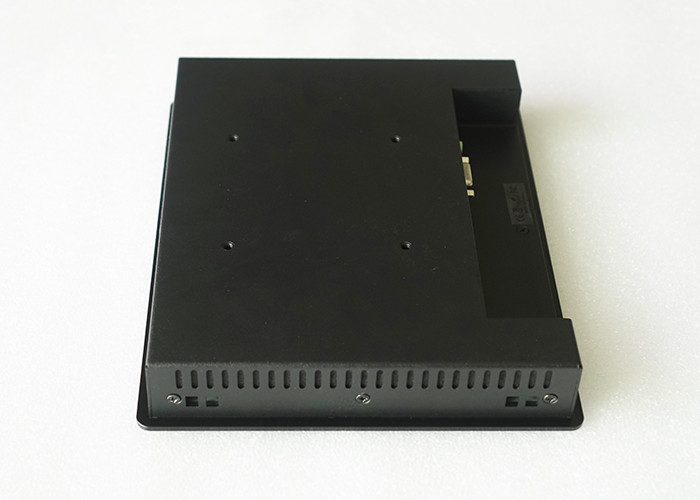

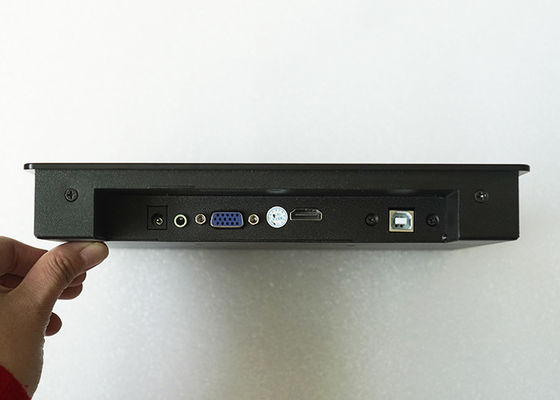

Pictures
